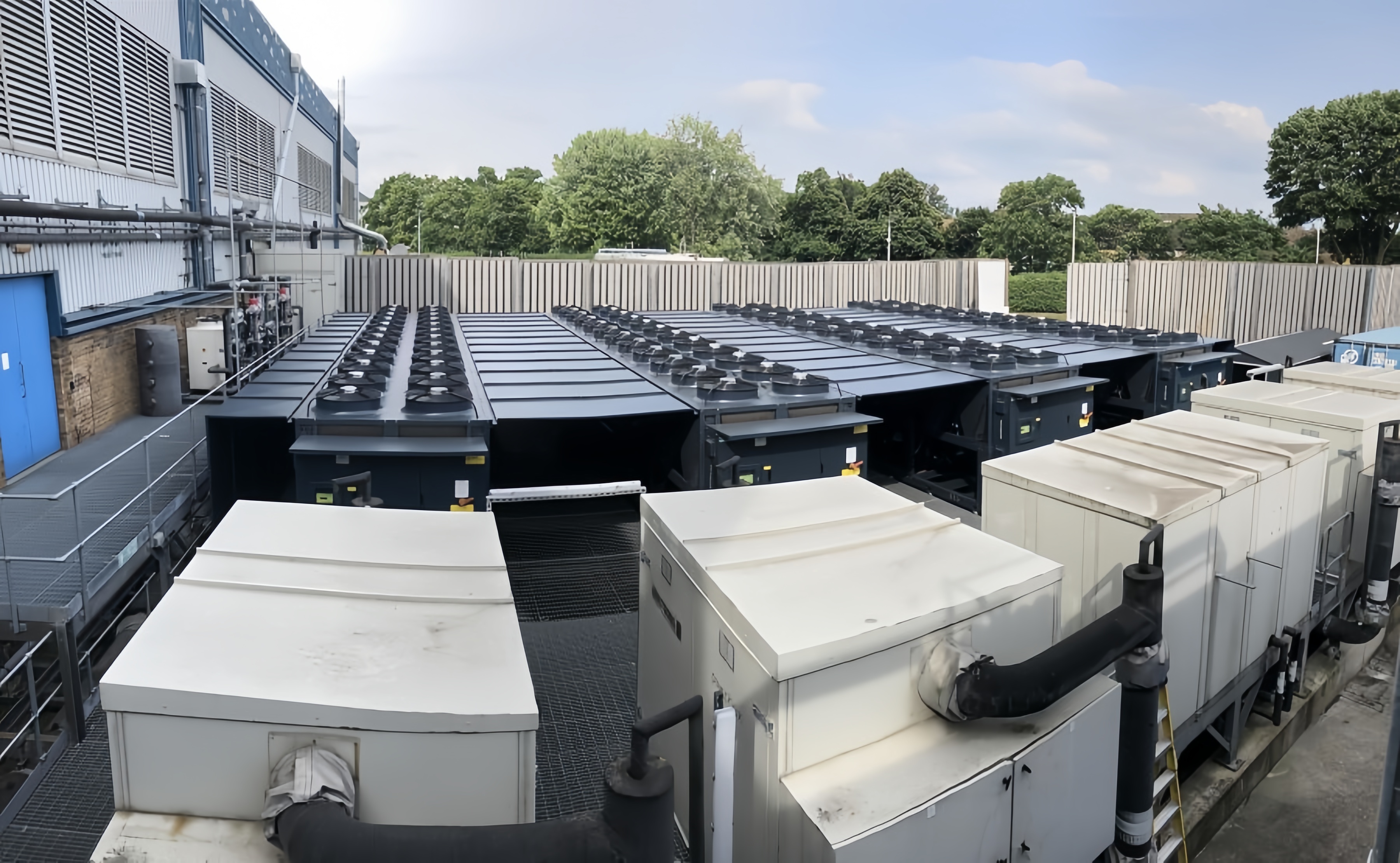

A dry cooler is a closed-loop heat exchanger that uses outside air to cool circulating fluids (water or glycol solutions) without evaporation. Unlike evaporative cooling towers, it operates “dry,” with fluid sealed in finned copper tubes and heat dissipated via forced air convection. For data centers, this creates a free cooling cycle: when ambient temperatures drop low enough, the system fully disables compressors, using only fans and pumps to dissipate IT heat—cutting cooling energy by 50–80% in favorable conditions.
The operating logic of dry cooler free cooling is simple, stable and highly automated.
1. Heat Capture: Warm circulating fluid absorbs continuous heat from server racks and indoor heat exchange units, carrying IT load heat to the outdoor dry cooler system.

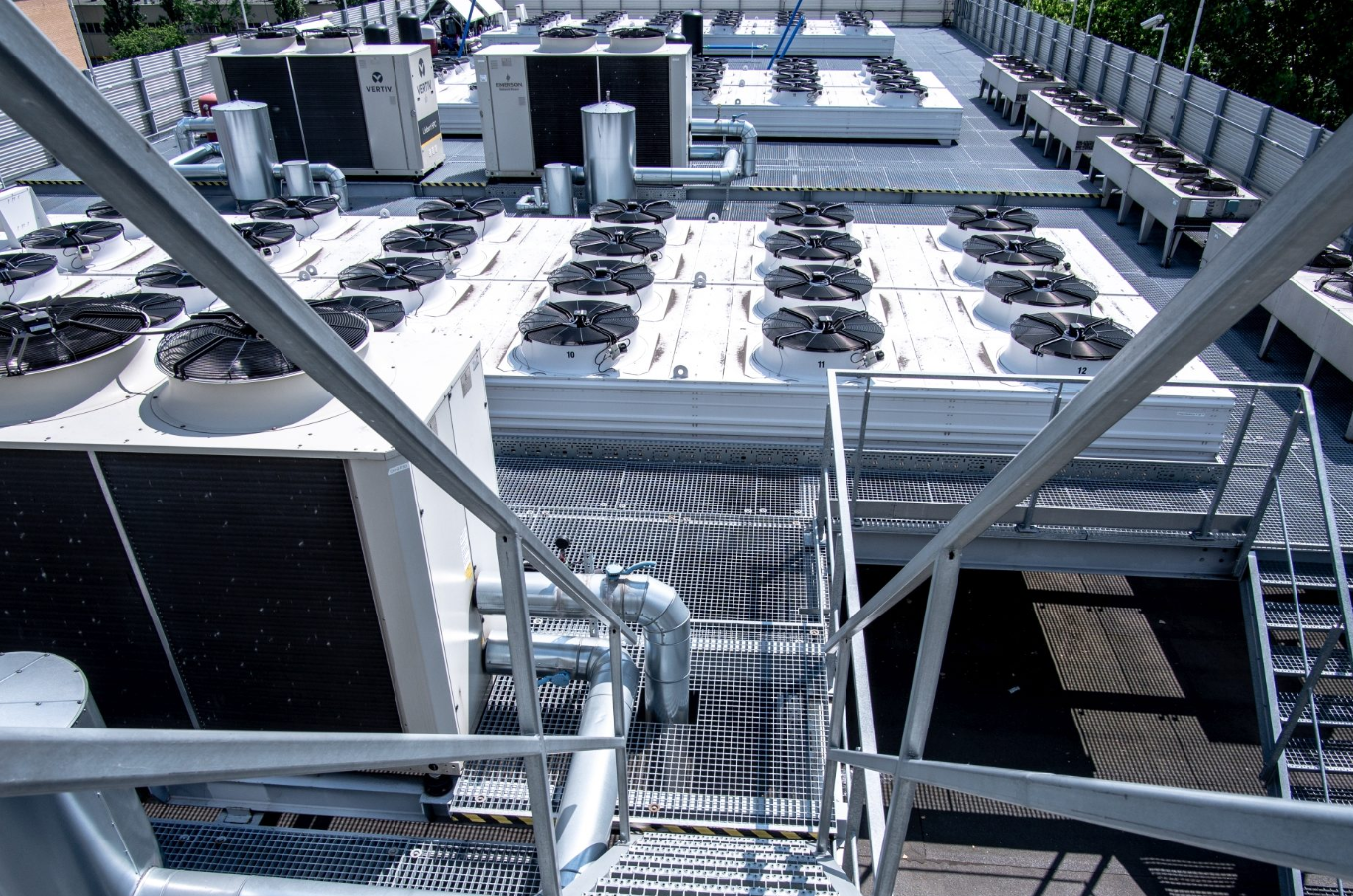

2. Dry Heat Exchange: Heated fluid flows evenly through the dry cooler’s dense finned coil bundles; high-efficiency fans draw large volumes of ambient air across the coil surface, achieving efficient heat transfer and releasing waste heat into the atmosphere.
3. Recirculation: After being cooled by ambient air, the low-temperature fluid flows back into the data center room to absorb heat again, forming a continuous closed circulation loop.
4. Smart Mode Switching: Equipped with intelligent control systems, the unit automatically switches operating modes according to real-time outdoor temperature: full free cooling mode with compressors shut down in cold seasons, hybrid mode combining partial chiller operation in transition seasons, and full mechanical cooling mode to handle peak heat load in extreme high temperature, ensuring stable indoor temperature all year round.
Dry cooler free cooling boasts irreplaceable comprehensive strengths compared with traditional cooling tower and chiller combinations.
It cuts annual cooling energy consumption by 25–55%, pushing data center PUE down to 1.1–1.3, far better than the 1.4–1.8 range of conventional systems. A standard 10MW data center can save $1.2–2.5 million in annual electricity expenses alone.
It achieves a near-zero WUE (Water Usage Effectiveness) value, completely different from cooling towers with 1.5–2 L/kWh water consumption. A 10MW facility can save around 500,000 tons of water every year, equivalent to the annual domestic water supply for 5,000 households.
Without water treatment agents, chemical dosing, and frequent scale and corrosion cleaning work, daily maintenance workload and costs are reduced by over 50%. Its simple and robust structural design lowers failure rate and extends equipment service life.
No water mist, drift pollution or sewage discharge, making it perfectly suitable for urban core areas and ecologically sensitive zones. It can stably operate in extreme temperatures from -40°C to 50°C, and optional adiabatic auxiliary modules further enhance cooling efficiency in high-temperature tropical regions.
Modular specifications from 5kW to 2000kW cover small edge computing rooms to hyper-scale cloud data centers. It can be perfectly matched with rear-door heat exchangers, aisle containment and liquid cooling systems to meet heat dissipation demands of high-density AI server racks.
With AI driving server power densities to 60–100kW/rack and strict PUE regulations (e.g., China’s 1.2 cap by 2027), dry cooler free cooling is no longer optional. Global data center cooling markets will hit $100 billion by 2035 (CAGR 12.55%), with dry cooling leading green adoption. Innovations—AI-driven controls, stainless steel corrosion resistance, and hybrid adiabatic systems—extend its reach to temperate/tropical regions.
Dry cooler free cooling redefines data center sustainability. It balances energy efficiency, water conservation, and cost savings—critical for carbon neutrality. As digital demand grows, it stands as the cornerstone of next-gen green data centers, turning cooling from a liability into a strategic asset.
