Why B10 CuNi 90/10 Tubes Are a Strong Choice for Coastal Engine Intercoolers

A material strategy for seawater-side corrosion resistance and long-term cooling reliability

For coastal power plants, offshore equipment and marine-related engine installations, the main material challenge is not heat transfer alone. The cooling package must also tolerate long-term contact with seawater and a corrosive coastal atmosphere.

That distinction matters because an intercooler is a system of different materials working in different environments. In this SINRUI design, B10 copper-nickel tubes carry seawater internally, while air flows across the external finned surface. The tube material therefore has a direct role in seawater-side corrosion resistance, while the fins, tube sheets and frame each protect a different part of the assembly.

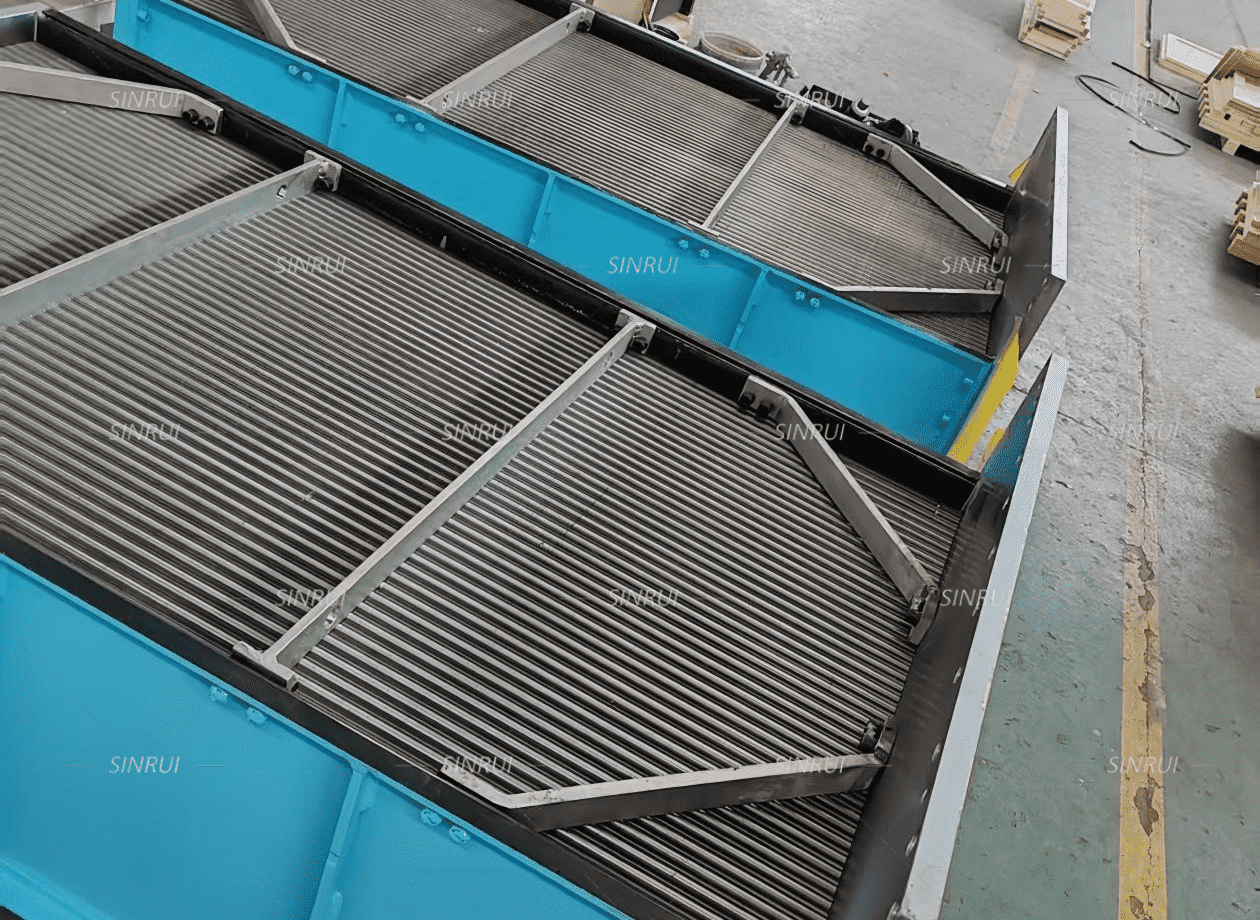

Figure 1. Complete B10 CuNi tube intercooler manufactured for coastal service.

1. The Corrosion Challenge Starts on the Seawater Side

Standard copper is valued for high thermal conductivity, but long-term exposure to saline water can increase the risk of corrosion-related damage. Chloride-containing water may contribute to localized attack and, over time, can weaken cooling tubes or create leakage points if the material is not matched to the service conditions.

B10 copper-nickel (CuNi 90/10) takes a different approach. With approximately 90% copper and 10% nickel, the alloy is widely used in marine and seawater heat-transfer applications because it offers stronger resistance to seawater corrosion than pure copper. A protective surface film can form under suitable operating conditions, helping slow further corrosion and support long-term tube integrity.

For this reason, SINRUI uses B10 specifically for the tubes that carry seawater. The material decision is targeted at the actual corrosion mechanism rather than treating every component of the intercooler as if it faces the same exposure.

2. T2 Copper vs. B10 CuNi 90/10: A Material Trade-Off

B10 is not selected because it outperforms pure copper in every property. The choice is a trade-off between heat-transfer performance, corrosion resistance, cost and expected service conditions.

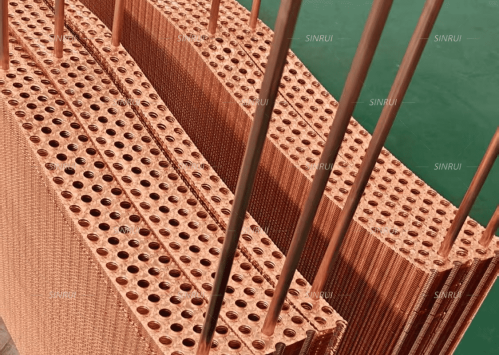

Figure 2. Standard T2 copper core under fabrication.

3. Long-Life Coastal Design Depends on the Complete Material System

The B10 tube is only one part of a coastal intercooler. Long-term reliability depends on a complete marine corrosion protection strategy covering the seawater side, air side, tube-sheet interface and structural frame.

Surface preparation and coating quality are also important parts of long-term corrosion protection; see our engine radiator manufacturing process for more detail on industrial surface treatment and C5-M coating.

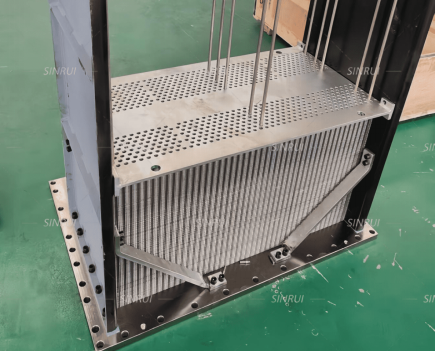

 Figure 3. B10 CuNi tube core during fabrication.

4. Why B10 Tubes Support Long-Term Coastal Reliability

The value of B10 in this application is not a guaranteed service-life number. Its value is that it provides a stronger material foundation for the part of the intercooler that is continuously exposed to seawater.

· Better resistance to seawater corrosion: CuNi 90/10 is better suited than pure copper to long-term saline-water service.

· Reduced risk of localized corrosion damage: a stable protective surface film can help limit corrosion progression under suitable water chemistry and flow conditions.

· More stable tube integrity over time: improved corrosion resistance can reduce the likelihood of premature tube thinning and leakage caused by material attack.

· A better fit for coastal lifecycle requirements: when replacement involves shutdown, disassembly and logistics, material durability becomes part of the operating-cost calculation.


5. Material Cost vs. Lifecycle Cost

B10 CuNi tubes carry a higher initial material cost than standard copper. That premium should be evaluated against the cost of corrosion-related maintenance, tube leakage, emergency replacement and equipment downtime over the intended operating period.

For a land-based installation using clean closed-loop coolant, a lower-cost material may be entirely appropriate. For an engine intercooler that continuously circulates seawater in a coastal or marine application, corrosion resistance can have much greater influence on the total lifecycle cost.

The engineering question is therefore not simply, “Which tube material is cheaper?” It is: “Which material system is appropriate for the cooling medium, environment and expected operating life of the equipment?”

6. What SINRUI Needs to Specify a Coastal Intercooler

A reliable material specification starts with the actual operating conditions. For coastal engine intercooler projects, the most useful information includes:

· Engine model and required heat rejection

· Charge-air inlet and outlet temperatures and pressure, if available

· Seawater inlet and outlet temperatures

· Seawater flow rate and available pressure drop

· Water source and known water-quality information

· Installation environment: coastal, port, offshore or marine

· Available dimensions, connection positions and mounting constraints

· Existing drawings, photos or samples for replacement projects

For coastal engine intercoolers, material selection should follow the actual exposure path. In this design, seawater flows inside B10 CuNi 90/10 tubes, so the tube material is selected primarily for seawater-side corrosion resistance. Tinned copper fins, nickel-plated copper-iron alloy composite tube sheets and a hot-dip galvanized frame extend the corrosion strategy to the rest of the assembly.

The result is not a promise of a fixed number of years. It is a more appropriate material system for applications where corrosion resistance, maintainability and long-term operating reliability matter as much as initial purchase price.
