From Raw Copper to High-Performance Cooling Systems
A radiator may appear to be a straightforward component — a block of tubes and fins attached to a frame. But the performance gap between a well-built industrial radiator and a poorly made one becomes apparent within months of field operation: leaks, deformation under thermal cycling, premature corrosion, and cooling shortfall under peak load. These failures trace back not to the design, but to the process behind it.
To give our customers a transparent view of how SINRUI radiators are made, we documented our full production workflow from the raw material storage floor through to final testing and dispatch. What follows is a step-by-step account of that process — the materials selected, the controls applied, and the reasoning behind each stage.
Step 1 — Raw Material Selection & Preparation
Every radiator we build begins on the materials floor, where incoming copper strip, copper tubes, brass sheets, and aluminum fins are received, inspected, and staged for production. This stage is less visible than later assembly steps, but it sets the ceiling for everything that follows.
Copper Tube Stock
The heat transfer core depends primarily on the quality and wall consistency of the copper tubes. We source high-purity copper (Cu ≥ 99.9%) for our tube stock. Tube wall thickness is specified per application: generator set radiator cores typically use thicker-wall tubes compared to automotive applications, since they must withstand higher operating pressures and longer continuous duty cycles.
Before tubes enter production, samples from each incoming batch are checked for dimensional tolerance (outer diameter and wall thickness) and surface condition. Out-of-tolerance material is quarantined and returned. Tubes that pass inspection are cut to length and staged by core size
Copper Fins
Fins determine how effectively heat from the tubes is transferred into the passing airstream. We use thin copper strip that is roll-formed into a corrugated fin profile. Fin pitch (fins per inch) and the depth of the corrugation are selected according to the cooling duty — a radiator intended for a 1,000 kW+ generator set in a high-ambient environment will have a denser fin pitch than one serving a lighter application.
Copper is preferred over aluminum for our heavy-duty generator and mining radiators because of its superior thermal conductivity (approximately 385 W/m·K versus 205 W/m·K for aluminum) and significantly better corrosion resistance in the humid, dusty, and chemically aggressive environments typical of mining sites and power plants.
Tank and Frame Materials
The header tanks and side frames are fabricated from brass sheet and structural steel. Brass is selected for header plates because it solders and brazes cleanly, forms consistent joints with the copper tubes, and holds up under the thermal expansion and contraction cycles the radiator will experience in service. Frame members are cut, drilled, and bent to the drawing dimensions before being staged for surface treatment.
Core assembly is the most technically demanding stage of production. The tubes and fins must be interleaved, aligned, and bonded with absolute precision — any misalignment in the core matrix introduces airflow resistance that reduces cooling efficiency, and any weak joint is a future leak point.
Fins are stacked onto the copper tubes in a controlled, jig-guided process that maintains consistent fin spacing across the full core width and height. Spacing uniformity is critical: uneven fin density creates local hotspots where airflow is restricted. Assemblers work to a dimension sheet that specifies row count, tube pitch, and overall core dimensions for each model.

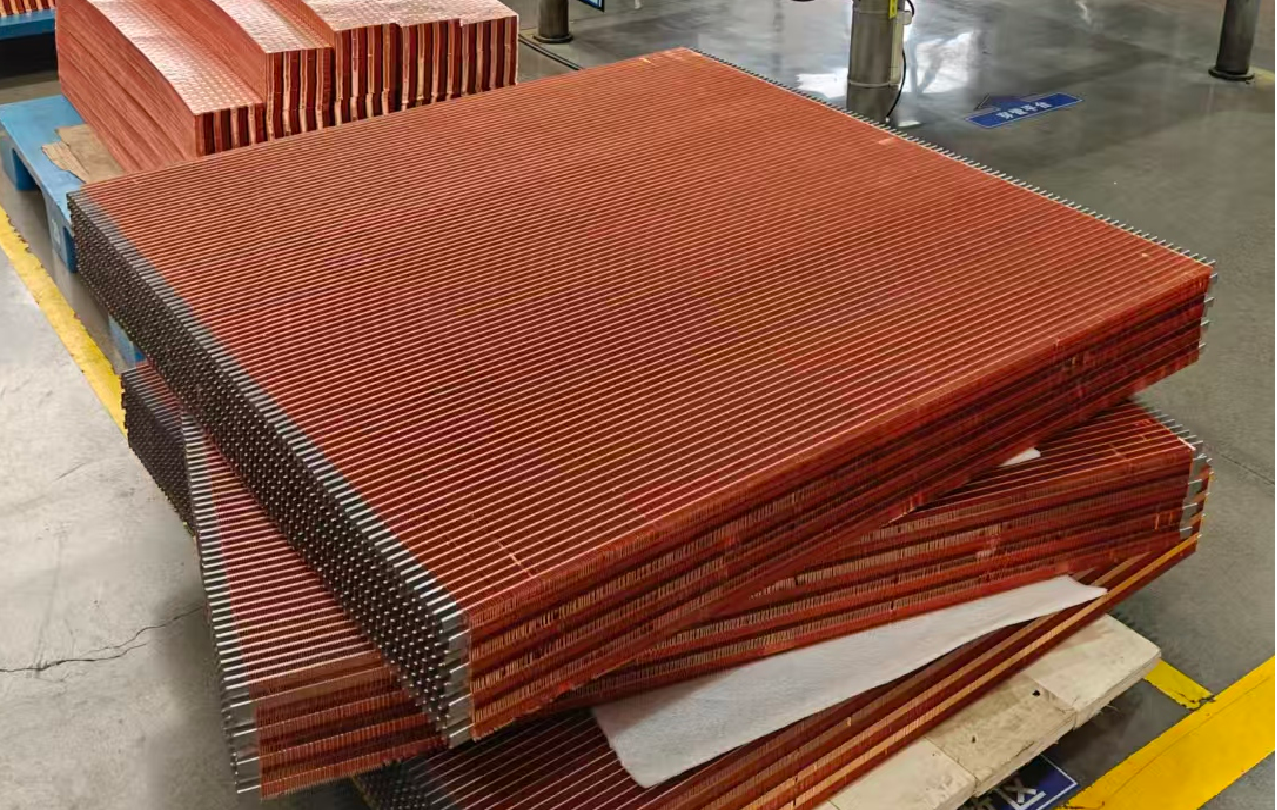

Copper tube-and-fin elements prepared for core assembly
After stacking, the tubes are mechanically expanded outward using a hydraulic mandrel process. This forces the tube wall into firm contact with the collar of each fin, creating a mechanical bond that resists vibration and thermal cycling even before the brazing step. Consistent expansion pressure is monitored across each operation — under-expansion leaves loose fins that rattle and lose contact; over-expansion can split tube walls.
The assembled core is then sent through a controlled-atmosphere brazing furnace. The furnace environment is maintained under a reducing gas atmosphere (typically a nitrogen-hydrogen mix) to prevent oxidation of the copper surfaces during the brazing cycle. Temperature profiles are specified precisely: the core must reach a uniform brazing temperature across its full cross-section, dwell long enough to allow the filler metal to flow completely into each joint, then cool at a controlled rate to prevent thermal shock.
Each batch of cores has its brazing parameters logged. This traceability is part of our internal quality record — if a warranty issue is ever raised, we can review the thermal cycle log for that production batch.
Following furnace brazing, trained welders perform a secondary inspection and hand-solder any joints that show incomplete bonding. This secondary step is a deliberate part of our process — it catches the small percentage of joints where the automated brazing cycle achieved less than full penetration. No core leaves this station with a visually incomplete joint.
After brazing and secondary welding, the core carries flux residue, oxidation products, and traces of oil from the assembly process. These contaminants must be completely removed before the next stage — not just for appearance, but because residual flux is hygroscopic and mildly acidic, and will accelerate corrosion if sealed inside the finished radiator.

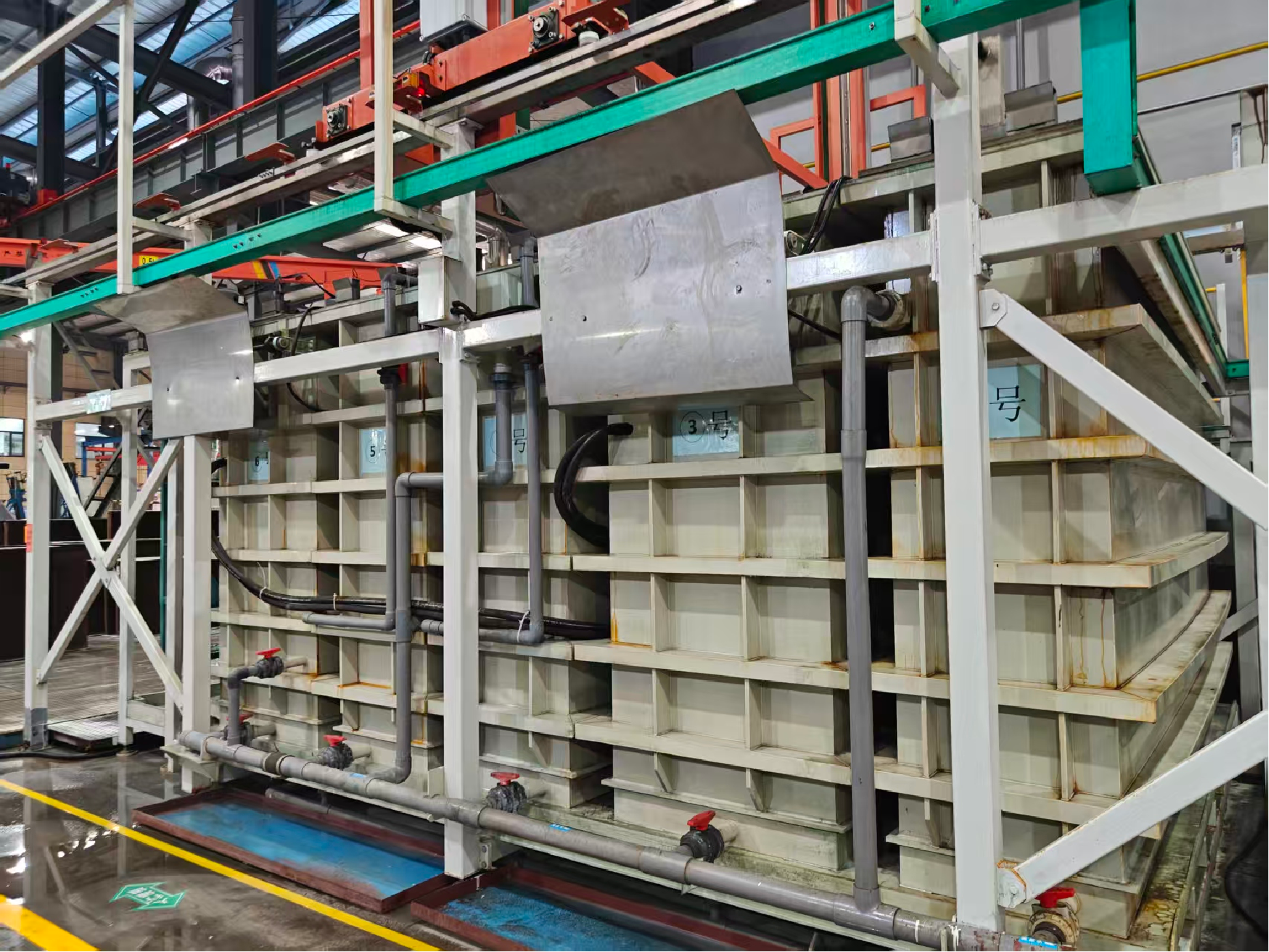

Core cleaning line for removing manufacturing residue before final assembly
Cores are immersed in a controlled cleaning bath that neutralizes and dissolves flux residue without attacking the copper or brass surfaces. Bath chemistry and temperature are monitored throughout each production shift. After cleaning, cores are rinsed with deionized water to prevent mineral deposits.
Drying
Cores move immediately to a drying oven following the final rinse. Any moisture that remains in the internal passages or between fins can cause problems at subsequent stages — it can react with powder coating chemistry, cause adhesion failures, or, if sealed in the final assembly, promote internal corrosion. We treat drying as a quality step, not a convenience step.
Visual Inspection Post-Cleaning
Once dry, each core is inspected visually for any remaining contamination, surface pitting, or fin damage introduced during handling. Fins that are bent down to obstruct tube gaps are straightened at this stage using a fin comb. Cores that fail the surface inspection are reworked before continuing.
Step 4 — Tank Fabrication & Surface Treatment
While cores move through brazing and cleaning, the header tanks, side frames, and mounting brackets are being fabricated in parallel on a separate line. This parallel workflow is deliberate — it minimizes total lead time and allows any dimensional issues with the frame to be caught and corrected before they meet the core at final assembly.

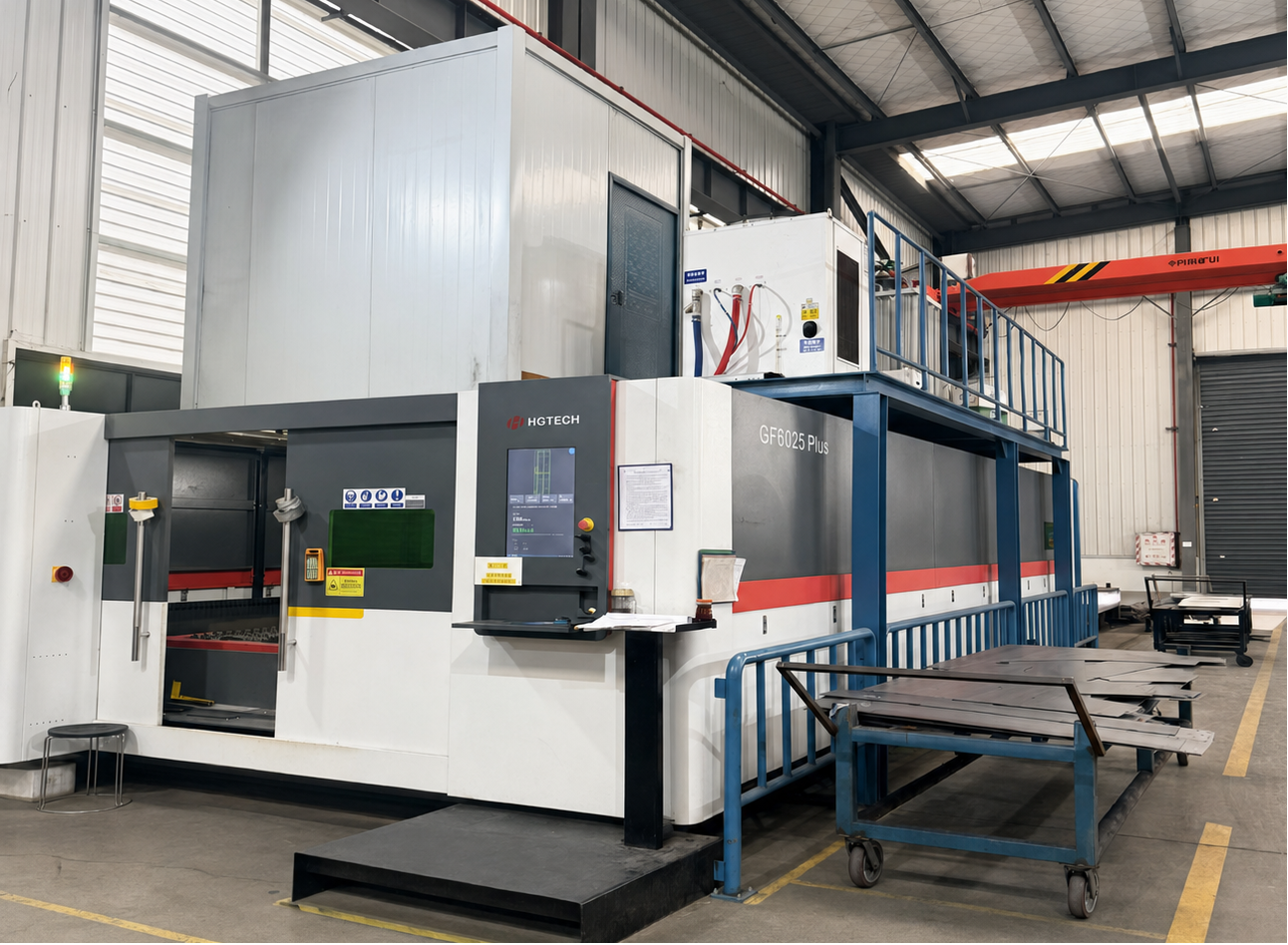

Laser cutting equipment used for precision fabrication of structural components
Tank blanks are cut from brass sheet to precise dimensions, then formed on a CNC press brake to the correct geometry. Tube holes are punched in the header plate to match the tube layout of the specific core. Hole spacing and diameter are critical — too tight and the tube cannot be inserted cleanly; too loose and the soldered joint will be weak.
Pickling and Phosphating
Before powder coating, all steel frame components undergo a two-stage chemical pretreatment. Pickling (acid wash) removes mill scale, rust, and surface oxides that would prevent adhesion of the coating. Phosphating then deposits a thin, crystalline zinc phosphate conversion layer onto the steel surface. This layer performs two functions: it provides a chemically bonded base for the powder coat, and it adds a sacrificial barrier layer that slows any future corrosion that manages to reach through a coating scratch.
This two-stage pretreatment is what separates industrial-grade radiators from lower-cost alternatives that skip to direct painting. A coat applied over an unphosphated surface may look identical on delivery but will lift and peel within 12–18 months in a humid or corrosive field environment.
Powder Coating

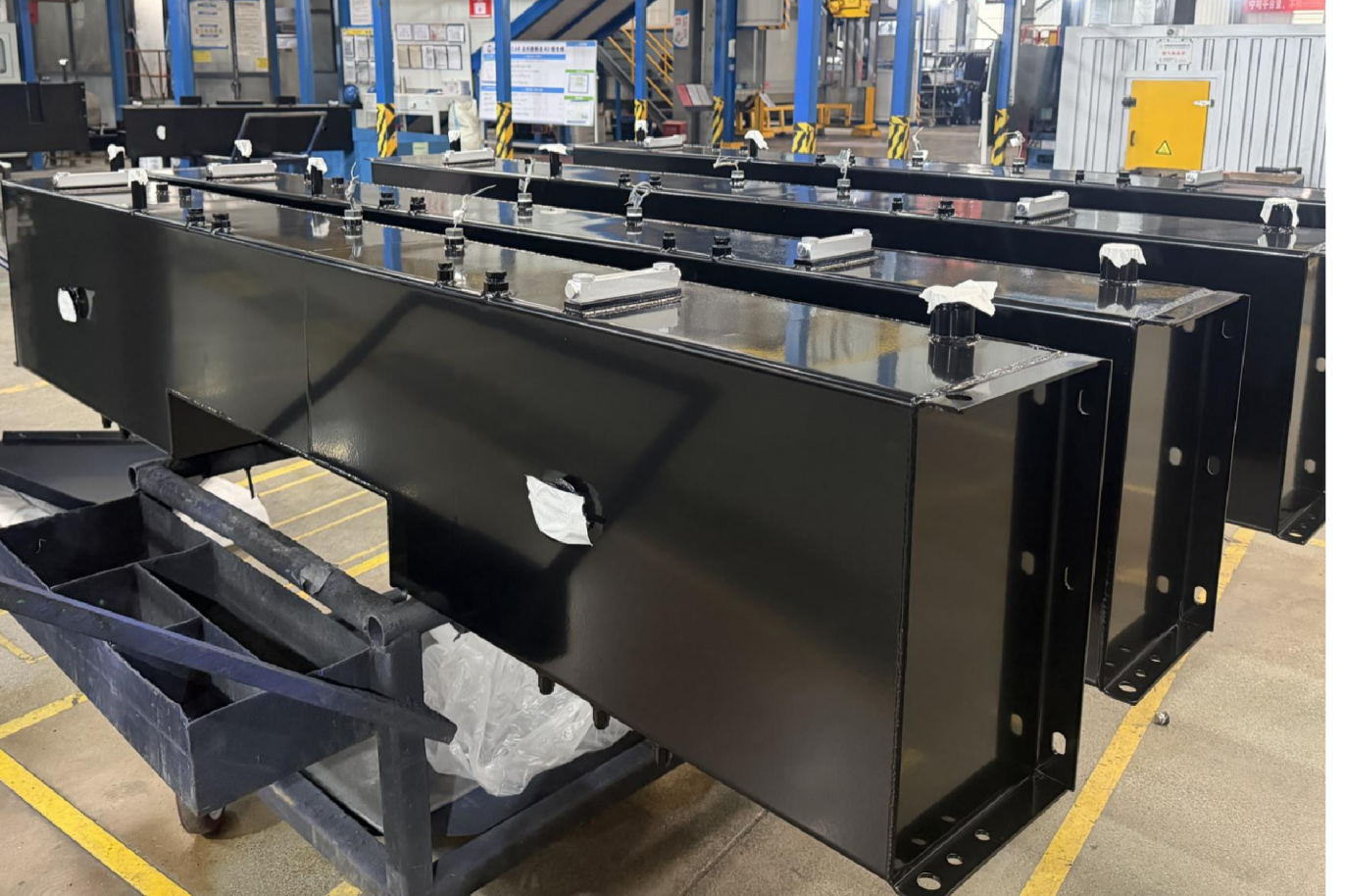

Finished radiator frames after powder coating and curing
Pretreated frames are powder-coated electrostatically and cured in an oven. We apply our C5-M grade anti-corrosion coating system on radiators destined for marine, offshore, and mining applications — C5-M is the highest environmental corrosion category under ISO 12944, covering environments with very high humidity and either marine salinity or industrial atmospheric pollution. Coating thickness is checked with a magnetic gauge on each batch.
Step 5 — Final Assembly
Core and frame components come together at the assembly station. The header tanks are fitted to the core tubes, and each tube end is soldered into its header plate hole to form the sealed coolant circuit. Mounting brackets, fan shrouds, pipe connections, and any ancillary components specified on the customer drawing are fitted and secured at this stage.
For radiators that include a remote mounting configuration or multi-fan arrangement, this is also where fan guard frames, fan rings, and electrical connections are installed and checked against the assembly drawing. All fasteners are torqued to specification.
Step 6 — Pressure Testing & Performance Verification
No radiator leaves SINRUI's facility without passing a multi-stage test sequence. Testing is not a formality — it is the final verification that the manufacturing process has achieved what the design specified.
Leak Test (Air Pressure)

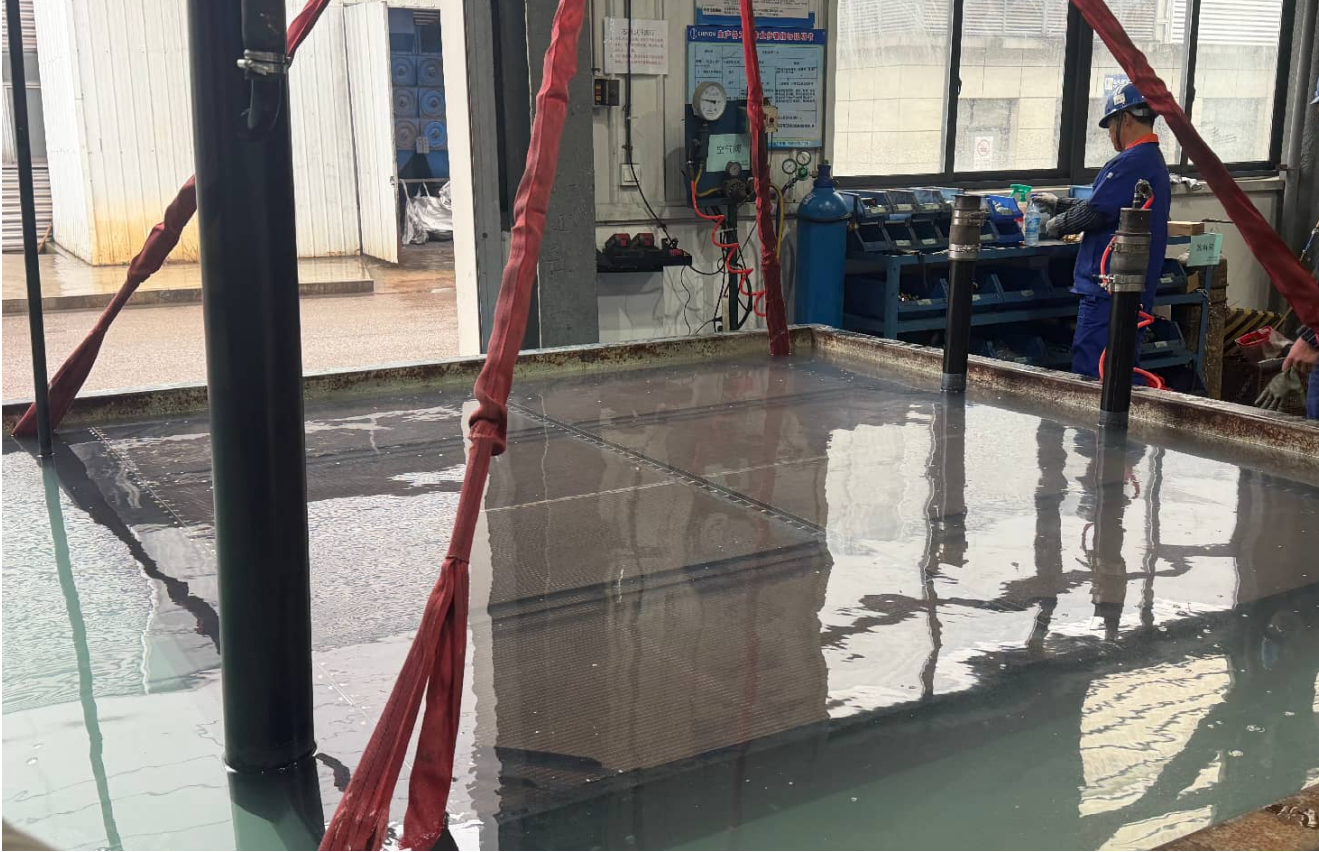

Submerged air-pressure testing used to identify leaks before dispatch
Each assembled radiator is pressurized with compressed air and submerged in a water tank. Technicians observe the full surface for a timed period under constant pressure. Any air bubble — however small — indicates a leak at a tube-to-header joint, a fin solder point, or a tank seam, and the unit is removed, repaired, retested. The pressure used in this test exceeds the maximum working pressure the radiator will encounter in field operation.

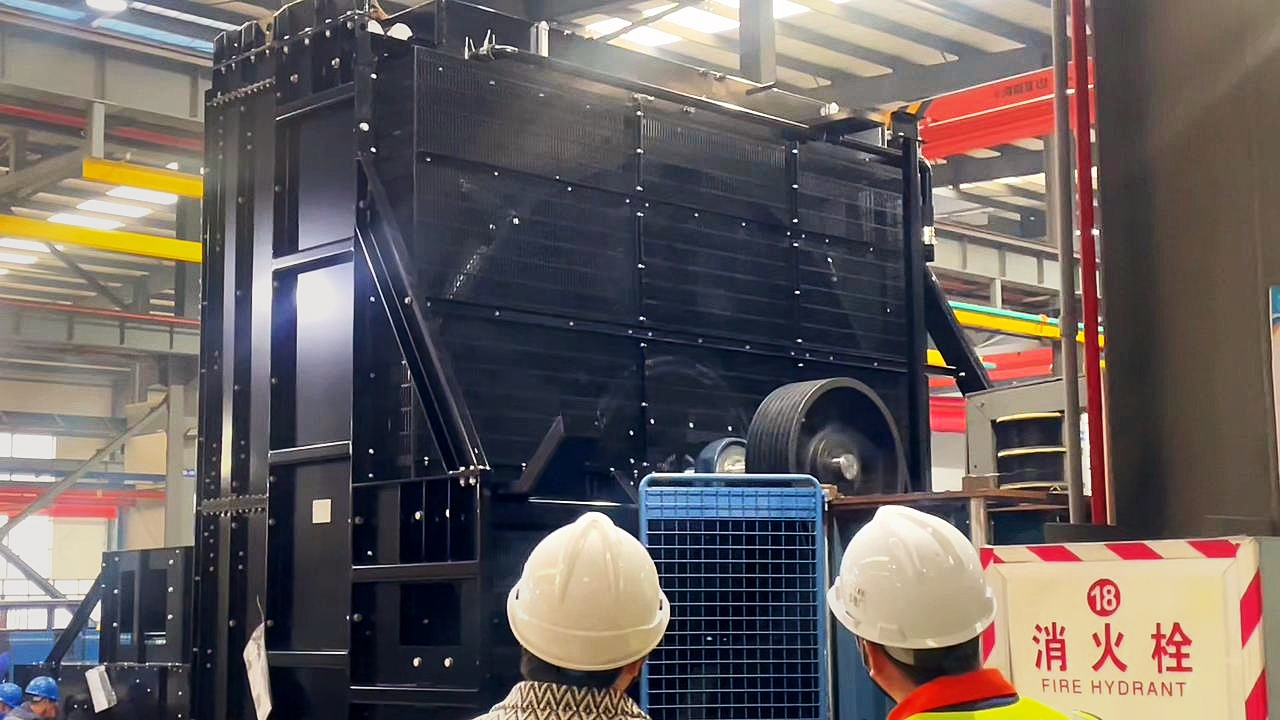

Airflow Test

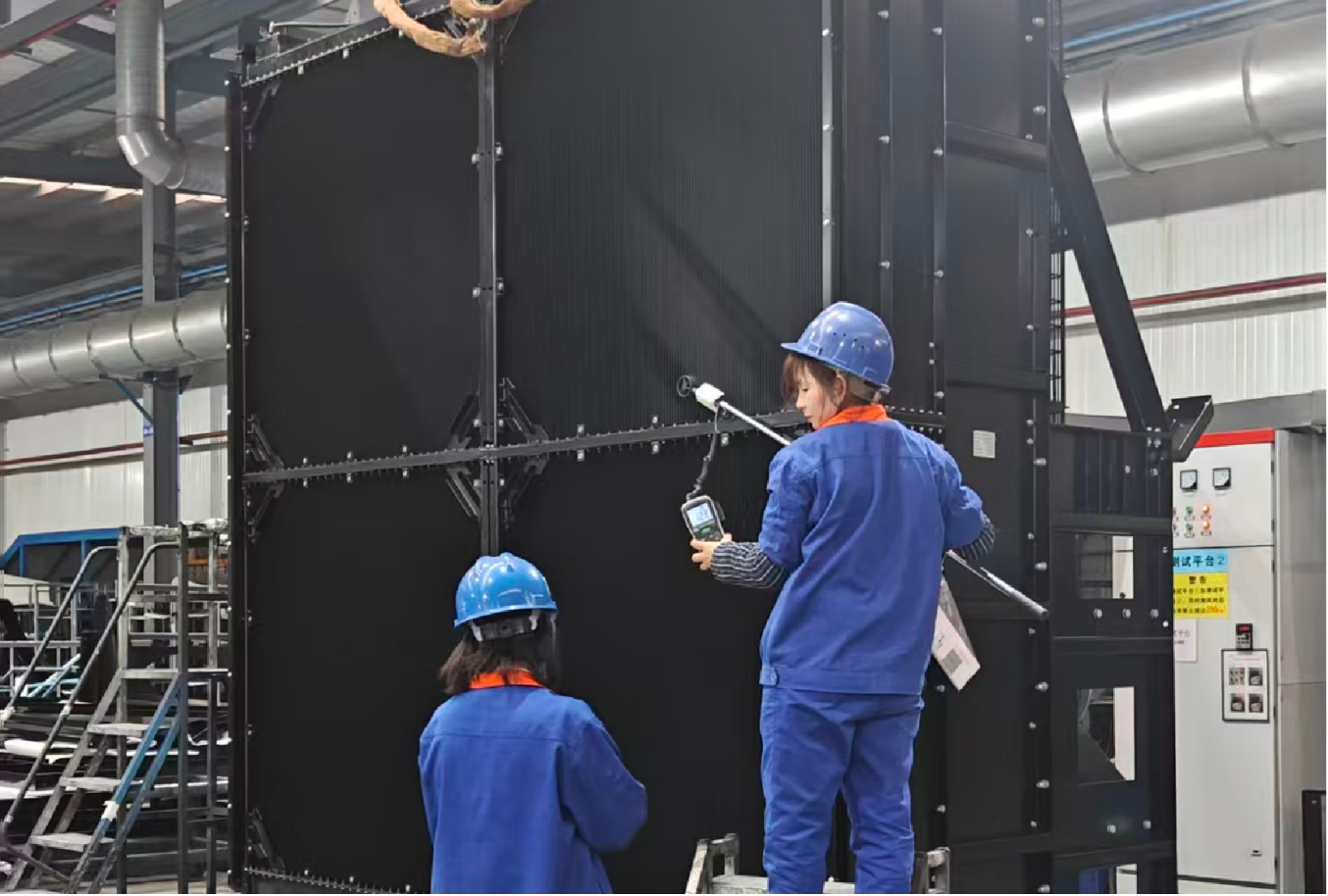

Air-volume and air-pressure performance verification on a completed radiator.
Core airflow resistance is measured to verify that the fin matrix has been assembled without blockage. This test catches units where fin damage or brazing voids have reduced the effective free area through the core. A unit with excessive flow resistance will underperform thermally even if the coolant circuit is perfectly sealed.
Dimensional Final Check
Overall dimensions, mounting hole positions, and pipe connection locations are verified against the customer drawing before packing. For replacement radiators, this is particularly important — a unit that doesn't match the installation envelope exactly creates a costly problem at the customer's site.
Step 7 — Packaging & Dispatch
The last step before shipment is packaging. For industrial radiators — which are large, heavy, and fragile in their fin structure — packaging is a genuine engineering task, not an afterthought.
Pipe openings are capped to exclude moisture and debris during transit. Fin faces are protected with foam or corrugated sheet inserts. The radiator is fixed in a custom wooden crate or frame with vibration-damping mounts to prevent the unit from shifting during sea or air freight. For export shipments, crates include moisture-absorbing desiccant packs and are marked with handling instructions in the destination country's language.
Each shipment is documented with a production record that includes the core batch number, brazing furnace log reference, test results, and inspection sign-offs. This documentation travels with the unit and forms part of SINRUI's warranty traceability system.
Built to Perform. Backed by Process.
From the incoming copper on the materials floor to the sealed, tested unit that leaves our loading dock, every radiator SINRUI manufactures passes through more than thirty individual process and inspection points. That is the difference between a radiator that performs reliably for four years under industrial load and one that begins showing leaks or thermal shortfall within the first season.
For buyers sourcing replacement or custom-built radiators for generator sets, mining equipment, marine engines, or oil and gas applications, the manufacturing process behind a supplier's product is as important as the published specifications. We invite you to review the photographs and video documentation from our production facility accompanying this article — and to contact our engineering team with any technical questions about your specific cooling application.
