Author: Sinrui Team Publish Time: 2026-08-13 Origin: Site
An FPSO doesn't get to shut down for routine repairs. Positioned offshore for years at a time, often far from the nearest port, a single cooling failure can mean a full production stoppage — and a service call measured in weeks, not hours.
A Floating Production Storage and Offloading unit (FPSO) is essentially a floating offshore oil and gas processing facility. Unlike conventional vessels, an FPSO handles multiple critical operations simultaneously — oil and gas processing, crude oil storage, and offshore transfer — and every supporting system has to be engineered for continuous operation under harsh marine conditions.
Among these systems, cooling is one of the most critical. Offshore generator sets, engines, compressors, and auxiliary equipment all depend on reliable cooling to maintain stable performance and avoid unexpected shutdowns. For FPSO applications, a radiator isn't simply a heat exchanger — it's a component that protects offshore power systems and keeps production running safely.

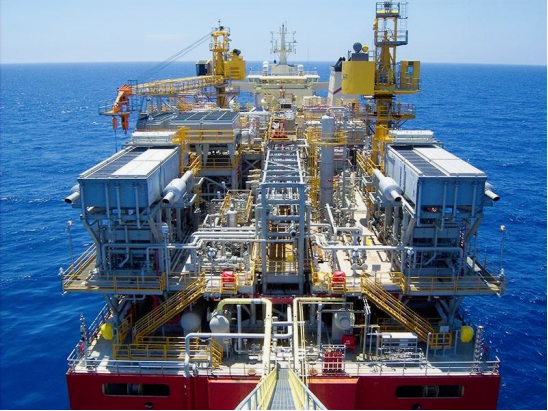

Offshore FPSO platform with industrial cooling systems installed on deck
Offshore environments are significantly more demanding than typical industrial applications. FPSO cooling equipment must withstand continuous salt spray exposure, high humidity and condensation, marine atmosphere corrosion, and long-term outdoor operation. Traditional industrial radiators often develop corrosion problems when exposed to these conditions for extended periods.

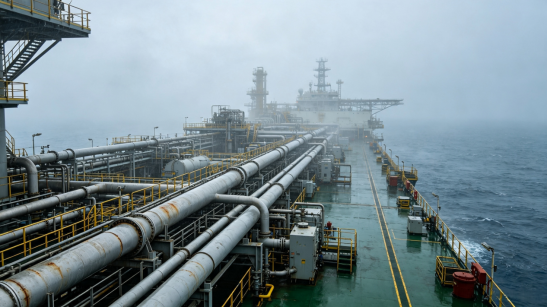

FPSO deck showing offshore pipelines and processing equipment in marine conditions
FPSO radiator design therefore requires advanced corrosion protection, including:
· Marine-grade materials
· Copper or copper-nickel alloy components
· Offshore protective coatings
· C5M corrosion-resistant treatment
· Stainless steel or corrosion-resistant fasteners
Material selection and surface protection directly determine radiator lifetime and maintenance requirements — and on an FPSO, unplanned maintenance carries a much higher cost than on land.
Power generation is one of the most important functions onboard an FPSO. Offshore generator sets supply electricity for production equipment, processing systems, living facilities, and safety systems. A cooling failure can lead to engine overheating, generator shutdown, and production interruption — a chain reaction that starts with the radiator.
For this reason, FPSO radiator systems must be designed around actual operating conditions — engine heat rejection, cooling water flow, ambient temperature, airflow requirements, and full-load operation — the same duty-rating logic that applies to continuous-duty generator radiators on land, but with corrosion resistance requirements far beyond typical industrial settings. A reliable cooling solution needs both sufficient capacity and long-term operational stability.
With more than 20 years of experience in industrial cooling systems, Sinrui provides customized radiator solutions for demanding applications including marine, offshore, power generation, and oil & gas industries.
Our engineering team focuses on:
· Matching engine heat rejection requirements
· Optimizing cooling performance
· Addressing installation limitations
· Improving corrosion resistance
· Supporting complete cooling system integration
From radiator cores to complete cooling assemblies, Sinrui builds customized solutions around each project's actual requirements.
For the TotalEnergies Kaminho FPSO Platform project in Angola, Sinrui supplied high-temperature and low-temperature cooling radiators for offshore generator sets.
The cooling system was designed with:
· Dual cooling water circuits
· Explosion-proof fans and motors
· Expansion tanks
· Offshore anti-corrosion protection
The radiators were engineered for hazardous offshore areas requiring reliable operation under strict safety and environmental conditions. The complete radiator assembly integrated cooling components, explosion-proof drive systems, monitoring connections, and offshore protection requirements — delivering reliable cooling support for FPSO generator applications.

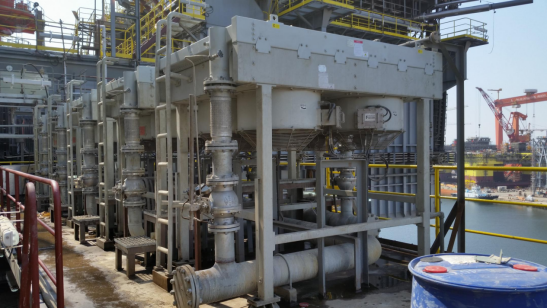

Marine air cooler units installed on an offshore platform for industrial heat rejection
Offshore drilling platforms face challenges similar to FPSO units, particularly around corrosion, vibration, and continuous power requirements.
For ADNOC offshore drilling platforms, Sinrui supplied a customized shell-and-tube heat exchanger for Mitsubishi S12R-F1PTAW2 generator sets. We covered this project in full technical detail in a separate case study — Corrosion-Resistant Shell and Tube Heat Exchanger for the ADNOC Offshore Drilling Platform — but the key specifications are worth repeating here.
The project required equipment capable of operating in high salt concentration environments, offshore vibration conditions, and continuous-duty applications. The cooling system adopted:
· C71500 copper-nickel cooling tubes
· Carbon steel shell with C5-M marine coating
· Zinc sacrificial anodes
· ASME pressure vessel compliance
After production, all units passed pressure and thermal performance tests, confirming stable coolant temperature control and reliable offshore operation.
Beyond FPSO and offshore drilling projects, Sinrui has developed cooling solutions for a range of demanding generator applications. For marine and coastal environments, our experience includes dual-circuit radiator systems, high-power generator cooling, remote radiator solutions, and anti-corrosion cooling packages — many of the same principles covered in our broader guide to offshore and marine heat exchanger selection.
For example, Sinrui developed a customized dual-circuit radiator for a Caterpillar G3512 gas engine operating in a tropical coastal environment with high humidity and heavy salt spray. The radiator used C5M marine anti-corrosion treatment and reserved additional heat exchange capacity for high-temperature operation.
C71500 (70/30 copper-nickel) offers substantially better resistance to seawater corrosion and biofouling than standard copper or admiralty brass, which is why it's a standard material choice for offshore and marine heat exchanger tubing. It costs more upfront, but the extended service life in continuous saltwater exposure typically justifies the difference for FPSO and offshore drilling applications.
Timelines vary by scope, but customized offshore radiator projects — particularly those requiring explosion-proof components, ASME compliance, or dual-circuit designs — generally involve a longer engineering and testing cycle than standard industrial radiators. Early engagement with the manufacturer on heat rejection data and site conditions helps avoid delays later in the process.
In some cases, yes — depending on the condition of the core and shell. Options such as additional protective coatings or sacrificial anode systems can extend service life without a full replacement. A site inspection is typically needed to determine whether retrofitting is viable or whether the corrosion has progressed too far.
FPSO operations run in some of the most demanding environments in the world, and the cooling system has no room for compromise. A successful FPSO radiator solution combines efficient heat rejection, marine corrosion protection, long-term operational reliability, and customized engineering — not an off-the-shelf industrial radiator adapted after the fact.
Through offshore project experience, in-house manufacturing capability, and customized cooling solutions, Sinrui supports operators worldwide with radiator systems built for marine and oil & gas applications. If you're specifying cooling equipment for an offshore project, our engineering team can review your heat rejection data and site conditions before you finalize a design.
