Heat Exchangers for Offshore Platforms and Marine Engines

Materials, Configuration, and Selection Guide

1. Introduction

Offshore platforms and marine vessels operate in some of the most demanding thermal and chemical environments on earth. Salt air, high humidity, continuous vibration, extreme pressure differentials, and exposure to process chemicals combine to degrade standard industrial heat exchangers far faster than land-based installations. A unit specified for an inland refinery or a factory cooling system will not perform to the same service life when deployed on an FPSO or installed in a marine engine room.

The consequences of heat exchanger failure in these environments extend well beyond the cost of a replacement component. An offshore platform running a compromised cooling system risks unplanned production shutdown, equipment damage, and in the most serious cases, safety incidents. A marine vessel with a failed jacket water cooler or lube oil cooler faces port diversion, charter penalties, and emergency dry-dock costs.

Selecting the right heat exchanger for offshore and marine applications requires more than matching thermal capacity. Material specification, corrosion resistance, pressure rating, configuration, and maintainability in confined spaces all determine whether a unit performs reliably over its intended service life — or becomes a recurring maintenance liability.

This guide covers the primary applications, equipment types, material considerations, and configuration factors that govern heat exchanger selection for offshore and marine environments.

2. Heat Exchanger Applications in Offshore and Marine Industries

Offshore Platforms

Offshore installations — including drilling platforms, FPSOs (Floating Production, Storage and Offloading vessels), and oil and gas production platforms — rely on heat exchangers across two primary functional categories.

Power Generation Cooling

Offshore platforms typically generate their own power using diesel or gas-fired generator sets. These engines require cooling across multiple circuits simultaneously:

● Engine jacket water cooling — removes heat from the engine block and cylinder heads to maintain operating temperature within design limits

● Lube oil cooling — maintains oil viscosity and prevents thermal degradation of lubricants under continuous load

● Charge air cooling — reduces the temperature of compressed intake air to increase combustion efficiency and protect engine components



Applications include:

● Offshore drilling platforms operating continuous duty generator sets

● FPSOs with large diesel or dual-fuel power plants

● Production platforms where power reliability is a safety-critical requirement

Process Cooling

Beyond power generation, offshore platforms use heat exchangers extensively in process and utility systems:

● Hydraulic system cooling — offshore drilling and production equipment relies on high-pressure hydraulic systems that generate significant heat under continuous operation

● Compressor cooling — gas compression for export or injection requires interstage and afterstage cooling to manage temperature and condensate

● Hydraulic oil cooling — dedicated coolers for hydraulic power units on cranes, BOP systems, and wellhead control equipment

● Process fluid cooling — crude oil, produced water, and gas streams require temperature control at multiple points in the separation and processing train

Marine Engines

Marine vessels use heat exchangers across propulsion, auxiliary, and hotel load systems. The primary applications are:

● Main propulsion engines — large two-stroke and four-stroke diesel engines require jacket water heat exchangers, lube oil coolers, and fuel oil heaters as part of the central cooling system

● Auxiliary engines — generator sets supplying ship service power use the same cooling circuit types as propulsion engines, scaled to their output rating

● Generator sets — dedicated power generation engines for vessels with high hotel loads (passenger vessels, cable layers, research ships) require independent cooling circuits



Common heat exchanger types in marine engine rooms include:

● Jacket water heat exchanger — transfers heat from the engine's primary coolant circuit to the central cooling water system

● Plate heat exchanger — used in central cooling systems to transfer heat between the freshwater and seawater circuits

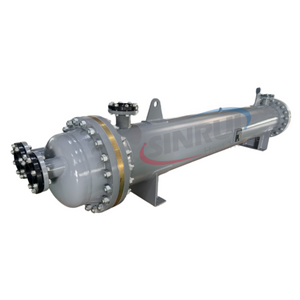

● Shell and tube heat exchanger — used where higher pressures, fouling resistance, or robust construction is required

● Oil cooler — lube oil, hydraulic oil, and fuel oil temperature management throughout the vessel

3. Common Heat Exchanger Types — Configuration and Comparison

Offshore and marine applications use three primary heat exchanger configurations. Each has characteristics that make it more or less suitable depending on the application, space constraints, and maintenance requirements.





Selection principle: Shell and tube exchangers are preferred where pressure, temperature, or fluid characteristics exceed the limits of plate construction. Plate exchangers are preferred where compactness, thermal efficiency, and ease of inspection are the priority and fluid conditions permit. Radiators and keel coolers are selected where a self-contained cooling circuit without seawater ingestion is required.

4. Material Selection Guide

Material selection is the single most consequential decision in specifying a heat exchanger for offshore or marine service. The wrong material in a corrosive environment will degrade rapidly regardless of how well the unit is otherwise specified.

Copper-Brass

Copper fins paired with brass tubes offer excellent thermal conductivity and good resistance to freshwater corrosion. This combination is widely used in engine cooling applications where the fluid is treated freshwater or glycol coolant and direct salt air exposure is limited. It is the standard material for generator set radiators in inland and sheltered marine environments.

Suitable for: generator set radiators, jacket water coolers in enclosed engine rooms, freshwater cooling circuits.

Stainless Steel (304 / 316L)

Stainless steel offers significantly better corrosion resistance than copper-brass in environments with salt air, spray, or chemical exposure. Grade 316L is preferred for offshore applications due to its improved resistance to chloride-induced pitting compared to 304. It is heavier than copper alloys and has lower thermal conductivity, which may require a larger heat transfer surface to achieve the same duty.

Suitable for: offshore platform heat exchangers, coastal installations, any application with direct salt air or spray exposure, process fluid service where hygiene or chemical compatibility is required.

Titanium

Titanium offers the highest corrosion resistance of any commercially viable heat exchanger material and is the preferred choice for seawater-cooled systems where the cooling medium is raw seawater rather than treated freshwater. It is significantly more expensive than stainless steel but justifies its cost in applications where alternative materials would require replacement within 2–3 years of service.

Suitable for: seawater-cooled heat exchangers, plate exchangers in central cooling systems using raw seawater, offshore applications in tropical or high-salinity environments.

Epoxy Coating

Epoxy-coated cores provide an additional barrier against corrosion in copper-brass assemblies operating in moderately corrosive environments. This is a cost-effective option for extending service life in coastal or mildly offshore environments where full stainless steel specification is not warranted.

Suitable for: coastal power generation, sheltered marine applications, retrofit corrosion protection on existing units.

Material Selection Summary



5. Configuration Considerations

Pressure Rating

Offshore and marine systems frequently operate at pressures that exceed standard industrial ratings. Hydraulic systems, compressor cooling circuits, and high-pressure process streams may require heat exchangers rated to 25 bar, 40 bar, or higher. Specifying a unit to the actual system pressure — not just the normal operating pressure — with an appropriate safety margin is essential. Shell and tube construction is generally preferred for high-pressure applications; plate exchangers are suitable up to approximately 25–30 bar depending on gasket specification.

Cooling Medium

The choice of cooling medium significantly affects configuration requirements:

● Treated freshwater / glycol — the least aggressive medium; compatible with most materials and constructions; standard for closed-circuit engine cooling

● Raw seawater — highly corrosive; requires titanium or high-grade stainless steel; demands robust fouling resistance and regular inspection

● Produced water — highly variable chemistry; specification must account for H₂S content, salinity, and suspended solids

● Hydraulic or lube oil — high viscosity at lower temperatures; requires adequate flow distribution and may require enlarged passage dimensions

Thermal Load and Basic Sizing

Thermal load determines the required heat transfer surface area. The fundamental relationship is:

Q = m × Cp × ΔT

Where Q is heat duty (kW), m is mass flow rate (kg/s), Cp is specific heat capacity of the fluid (kJ/kg·K), and ΔT is the temperature difference between inlet and outlet. This value, combined with the Log Mean Temperature Difference (LMTD) between the hot and cold sides, determines the required surface area for a given heat transfer coefficient. In practice, your equipment supplier or SINRUI's engineering team will perform the full thermal calculation — but providing accurate flow rates and temperature data at enquiry stage significantly reduces the time to a confirmed specification.

Connection Types

Flanged connections are standard for offshore and marine applications, offering ease of disconnection for maintenance without disturbing surrounding pipework. Thread connections are acceptable for smaller auxiliary units. For high-pressure or high-temperature service, weld-neck flanges are preferred. Connection size and rating (ANSI, DIN, JIS) should match the existing piping specification of the installation.

Retrofit vs New Installation — Dimensional Constraints

Retrofitting a heat exchanger into an existing offshore or marine installation presents dimensional constraints that are often more limiting than the thermal specification. Engine room spaces are typically compact and access is restricted. For retrofit applications, SINRUI manufactures to the dimensional envelope of the existing unit, ensuring compatibility with existing mounting points, pipework connections, and clearance requirements without structural modification. For new installations, dimensional input from the equipment layout drawing allows optimisation of the unit configuration for the available space.

Maintenance Requirements

Offshore and marine heat exchangers must be maintainable in service conditions that are significantly more constrained than land-based installations. Plate heat exchangers offer the advantage of in-situ cleaning by opening the plate pack without removing the unit from service piping. Shell and tube exchangers can be rodded or chemically cleaned without full removal. For units installed in particularly confined spaces, SINRUI can incorporate maintenance access provisions into the design — including removable bonnets, cleanout ports, and intermediate flanged sections.

6. SINRUI's Approach to Offshore and Marine Heat Exchangers

SINRUI does not manufacture from a standard catalogue. Every heat exchanger supplied for offshore or marine service is specified, engineered, and manufactured to the requirements of the individual application.

Our process begins with your equipment specification — engine model, system pressure, fluid types, temperature requirements, and installation environment. From this, our engineering team selects the appropriate construction type, material specification, and dimensional configuration. For retrofit applications, we work from the existing unit's dimensions and connection details. For new installations, we work from the equipment layout and process data sheet.

Every unit undergoes pressure testing and leak checking before dispatch. Full test documentation is provided with each unit, supporting operator acceptance procedures and classification society review where applicable. Stainless steel and titanium units are supplied with material certificates traceable to the raw material heat.

Standard lead times for offshore and marine heat exchangers are 30–45 days from order confirmation for custom units. For urgent replacement requirements, our team will advise on the fastest available manufacturing path at enquiry stage.

SINRUI has supplied heat exchangers and cooling systems to offshore and marine operators across more than 30 countries since 2001. Our reference installations include offshore platforms in the Arabian Gulf, marine engine room applications in Southeast Asia, and onshore processing facilities across Africa and Central Asia.

7. How to Choose the Right Heat Exchanger Supplier

Selecting a heat exchanger supplier for offshore or marine service involves more than comparing unit price. The following criteria distinguish suppliers capable of delivering reliable performance in demanding environments from those who are not.

● Engineering capability — Can the supplier perform thermal calculations from your process data, or do they only supply from a fixed range? A capable supplier will confirm performance before manufacturing begins.

● Material traceability — For offshore and marine applications, material certificates traceable to the raw material heat are a standard requirement. Confirm that your supplier can provide these as part of the delivery documentation.

● Testing and certification — Every unit should be pressure-tested before dispatch. Ask for the test procedure and documentation format before placing an order.

● Lead time reliability — Offshore procurement schedules are tight. A supplier who cannot commit to a firm delivery date is a schedule risk. Confirm lead times in writing at order stage.

● Reference installations — Ask for evidence of prior supply to similar applications — same equipment type, same environment, similar operating conditions.

● After-sales support — A 4-year warranty backed by a responsive engineering team is a materially different proposition from a standard 12-month warranty with no technical support.
