Author: Sinrui Team Publish Time: 2026-08-17 Origin: Site
When selecting a diesel generator cooling system, many buyers focus mainly on engine power output, fuel consumption, or generator capacity. But the generator radiator is one of the most critical components determining whether the genset can actually deliver that rated power reliably — and it's frequently the piece that gets sized as an afterthought.
One common mistake is using the same radiator design for both standby and continuous duty applications. Even when two engines share the same rated kW, the required radiator cooling capacity can differ substantially depending on how the generator actually operates.
This isn't just an engineering preference — it's defined by international standard. Understanding how ISO 8528-1 classifies generator duty ratings helps engineers select the correct genset radiator and avoid overheating, reduced engine life, and unexpected shutdowns.
ISO 8528-1 is the international standard governing reciprocating internal combustion engine-driven generating sets. Rather than a simple standby/continuous split, it defines four distinct power ratings — and each implies a different cooling duty:
· ESP (Emergency Standby Power) — backup power during utility failure, variable load, typically capped at 200 hours per year, no overload capability.
· PRP (Prime Rated Power) — unlimited running hours at variable load, with an average load factor generally required to stay at or below 70% of the PRP rating, limited overload allowed.
· LTP (Limited-Time Running Power) — up to 100% load, capped at roughly 500 hours per year, no overload capability.
· COP (Continuous Operating Power) — constant 100% load factor, unlimited operating hours, no overload capability — the most demanding rating from a cooling standpoint.
This guide's "standby vs continuous duty" framing maps roughly onto ESP at one end and COP at the other — but PRP and LTP sit in between, and each carries its own thermal load profile. Radiator sizing should reference the actual ISO rating your generator is built to, not just a general "standby" or "continuous" label.

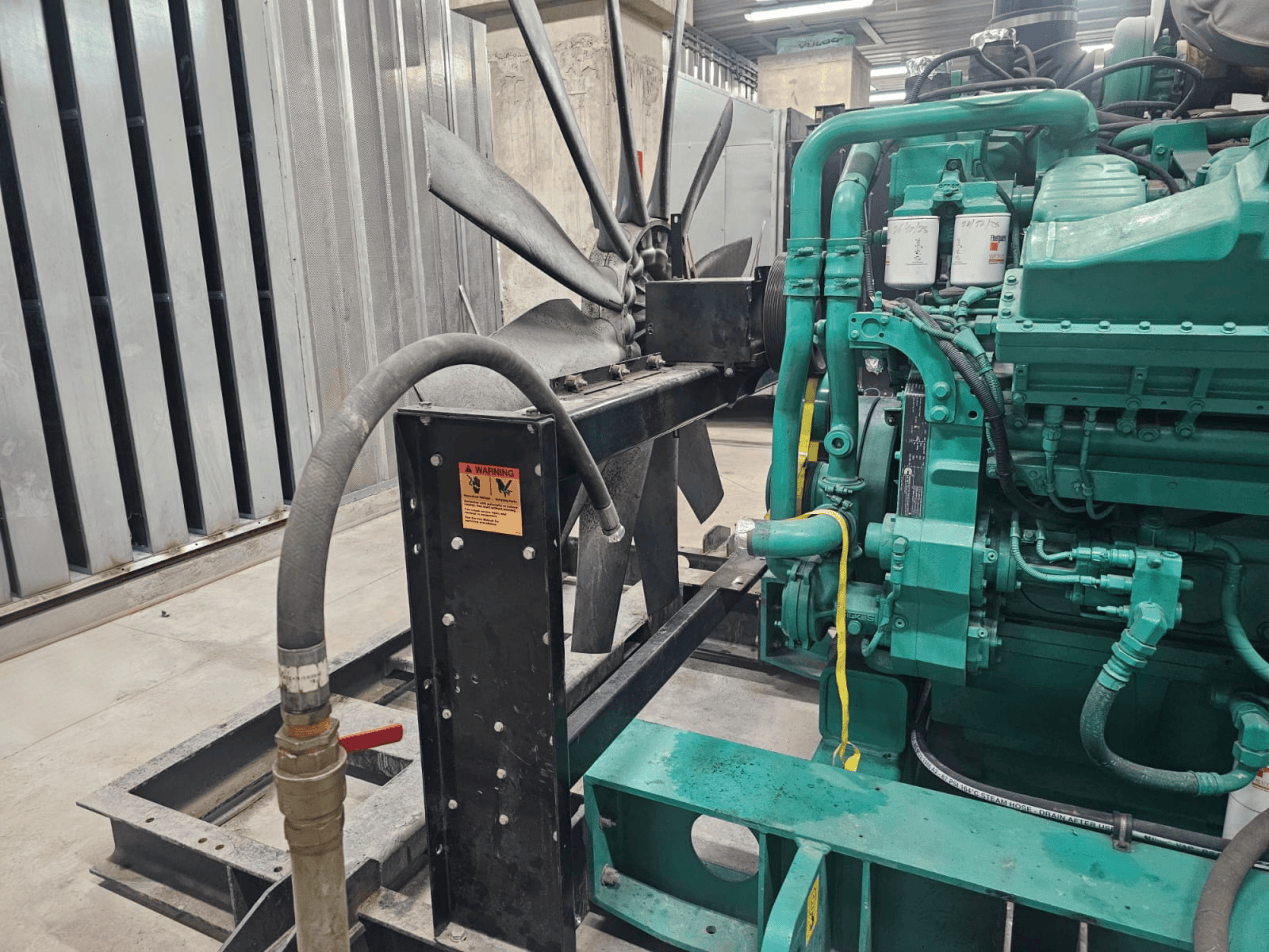

Marine-duty diesel generator engine with cooling system components
A standby generator provides backup power during emergency situations, such as:
· Power outages
· Hospital emergency power supply
· Data center backup systems
· Industrial emergency systems
· Building safety systems
Standby generators usually operate for a limited period rather than running continuously for long durations. For this reason, a standby generator radiator is typically designed around:
· Short-term operation
· Higher temporary load demand
· Limited annual running hours
· Emergency power requirements
The cooling system is sized to remove engine heat during temporary operation while keeping coolant temperature within the recommended range. Standby rating doesn't mean radiator design matters less, though — in many critical applications, the generator must start immediately and reach full load fast, and the radiator has to deliver sufficient cooling from the very first minutes of operation.
A continuous duty generator is designed to operate for extended periods, often 24/7, at stable loads. Typical applications include:
· Remote mining sites
· Oil and gas facilities
· Island power stations
· Construction power supply
· Rental power plants
Compared with standby applications, continuous duty generators produce heat for much longer periods, so the continuous duty generator radiator requires higher reliability and stronger heat rejection capability. Key design considerations include higher continuous heat load, long operating hours, higher coolant circulation demand, better material durability, and stricter temperature control. A radiator that performs well for standby operation may not hold up under continuous duty.
The biggest difference is required cooling capacity. A continuous duty genset radiator normally needs a higher safety margin because the cooling system must remove engine heat without interruption. The radiator design must account for engine jacket water heat rejection, charge air cooling requirements, ambient temperature, airflow resistance, and fan performance.
For example, a generator operating continuously in a 45°C environment requires a fundamentally different radiator design than a standby generator installed indoors at 25°C.
Engineer reviewing radiator heat rejection calculations for a generator project
Standby generators may run only a few hours per year, while continuous duty generators can log thousands of hours annually. Long-term operation raises the bar on tube durability, fin corrosion resistance, welding quality, and structural strength. In harsh environments — mining, offshore, desert — material selection becomes especially important.
Standard aluminum radiators may be sufficient for standby applications in normal environments. Continuous duty applications, however, often call for additional protection:
· Aluminum-magnesium alloy materials
· Epoxy coating
· Cathodic electrophoretic coating
· C5M anti-corrosion protection
· Copper or cupronickel components for special environments
This matters most for offshore platforms, coastal areas, mining environments, and high-humidity regions.
An undersized radiator can cause high coolant temperature, engine derating, reduced efficiency, increased maintenance frequency, and unexpected shutdown. An oversized radiator, on the other hand, adds unnecessary cost and installation space requirements.
The correct generator radiator should be selected according to the complete operating conditions — not just the generator's kW rating. Engine model, duty type (per its ISO 8528 classification), ambient temperature, installation method, and operating environment should all be evaluated together. If you're unsure whether your current radiator matches your duty cycle, our guide on recognizing generator overheating risk covers the warning signs worth checking first.
As a generator radiator manufacturer, Sinrui provides customized cooling solutions matched to each generator's actual application — as seen in projects like our MAN 18V48 engine radiator delivery. Our engineering team evaluates generator model and power rating, standby/prime/continuous duty classification, required ambient temperature, cooling airflow requirements, installation dimensions, and material and corrosion protection requirements.
Sinrui generator radiators are used across diesel generator sets, mining equipment, industrial power systems, marine applications, and remote power stations. For demanding applications, we provide customized radiator solutions built for optimized cooling performance, reliable structure, and long service life.

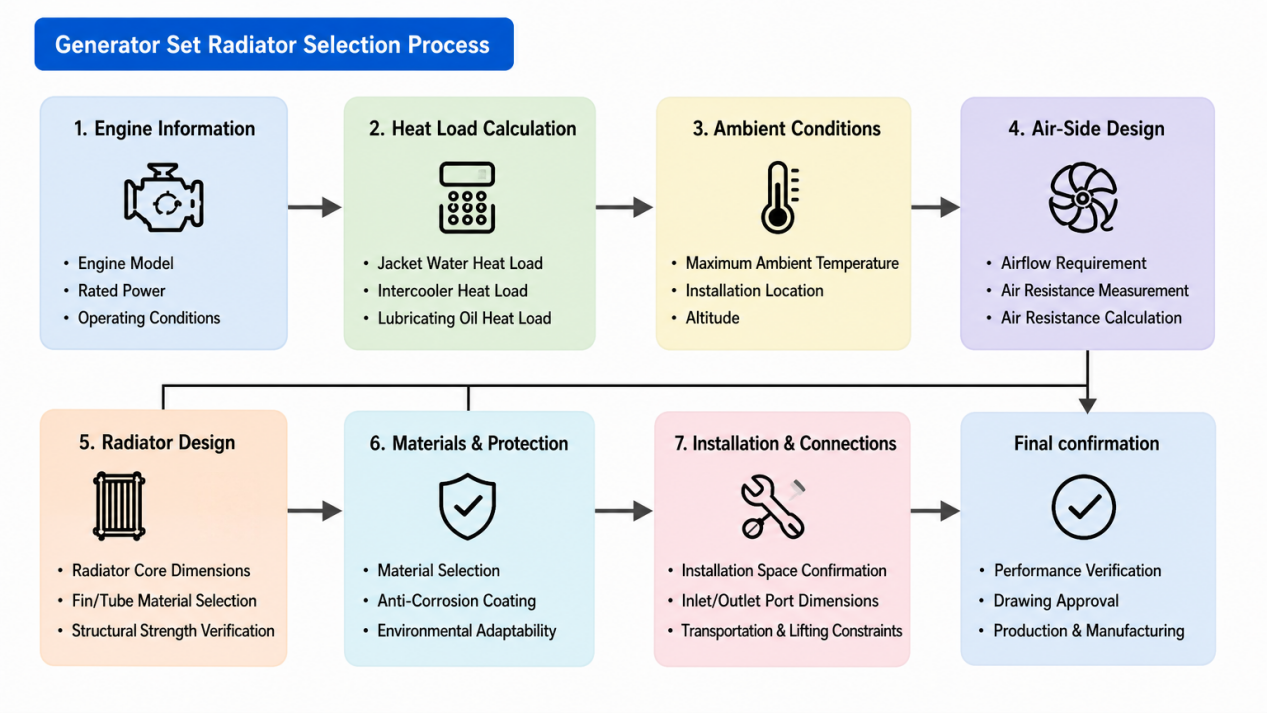

Generator radiator selection process, from engine data to final design
Not reliably. A radiator sized for ESP-rated standby duty is generally built with less thermal margin and lighter-duty materials than one designed for COP-rated continuous operation. Using a standby-rated radiator in a continuous duty application risks chronic overheating and premature failure, even if the engine's kW rating is identical.
Ambient temperature affects both ratings, but its impact compounds over time for continuous duty units. A standby generator that runs a few hours a year at high ambient temperature faces limited cumulative thermal stress. A continuous duty generator operating at the same ambient temperature 24/7 needs a radiator with enough margin to sustain that load indefinitely — not just survive it occasionally.
Specifying a radiator based on generic "standby" or "continuous" labels — rather than the specific ISO 8528 rating (ESP, PRP, LTP, or COP) — is one of the most common sizing errors. PRP and LTP ratings in particular sit between the two extremes and are easy to misclassify, which can lead to a radiator that's undersized for real-world load factors.
Choosing between a standby and continuous duty generator radiator isn't simply a matter of picking the right size. The radiator must match the generator's ISO 8528 duty rating, expected running hours, and environmental challenges.
A properly designed genset radiator ensures stable engine temperature, improves generator reliability, and reduces long-term maintenance costs. Whether for emergency backup power or continuous power generation, selecting the right radiator rating is essential to getting full, reliable performance from your generator system.
