A dry cooler doesn't need to go offline to get cleaned. That single fact surprises a lot of operators — and it matters, because a fouled coil is one of the most common, most preventable causes of declining cooling performance in industrial systems.
Dust, oil mist, insects, and airborne debris accumulate on the coil surface over time, restricting airflow and reducing heat transfer. The effect is measurable: laboratory research on air-cooled heat exchangers has found that a 50% reduction in coil airflow can cut cooling capacity by roughly 11% and efficiency by around 25%, while even moderate fouling typically produces capacity losses in the low single digits under normal conditions — figures that climb sharply once airflow restriction becomes severe.
This guide walks through how to inspect, clean, and verify dry cooler coil performance — most of it without shutting the system down.
The coil is the core heat exchange surface of a dry cooler. Fans continuously pull ambient air across it to remove heat from the circulating fluid. As airborne particles accumulate in the fin passages, airflow drops — and so does cooling performance.
A contaminated coil typically shows up as:
· Reduced heat transfer efficiency
· Higher fluid operating temperatures
· Increased fan power consumption
· Additional stress on pumps and connected equipment
· Shortened overall service life
For data centers, power generation, mining, and oil & gas facilities, even a modest drop in cooling capacity can affect overall system reliability — which is why routine coil maintenance belongs on the same priority level as any other critical equipment check.
Before starting any cleaning operation, inspect the air-cooled heat exchanger and its surrounding area. Four checks matter most.
Check whether fins are blocked by dust, sand, leaves, insects, or other debris. In harsh environments such as deserts or mining sites, particles accumulate far faster than in a typical industrial setting.
Bent or damaged fins restrict airflow and reduce heat transfer performance. Minor fin deformation can usually be corrected with proper fin comb tools.

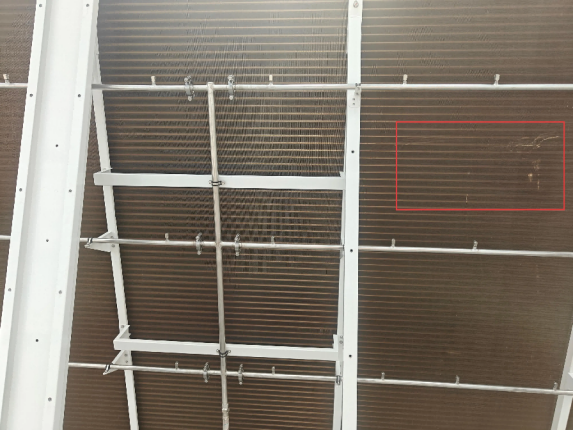

Minor fin deformation on a dry cooler coil, repairable with professional fin comb tools
Inspect coil tubes, fins, frame, and connection points for corrosion. For outdoor installations — especially coastal or high-humidity sites — corrosion protection such as C5M coating can meaningfully extend service life.
Check fan rotation direction, unusual noise, vibration, and motor condition. A clean coil can't perform effectively if the airflow system behind it isn't working properly.

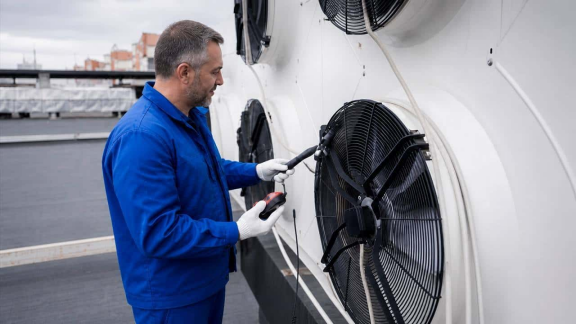

Technician inspecting fan operation to verify airflow and motor performance
One advantage of a properly designed dry cooler is that routine cleaning can usually be carried out while the system stays operational.
For dry environments with loose dust accumulation, compressed air is one of the safest cleaning methods.
· Blow air from the clean side toward the dirty side
· Keep appropriate distance from the fins
· Avoid excessive pressure that could damage aluminum fins
This method works well for dust, sand, and light contamination without interrupting operation.
For larger debris such as leaves or insects, a soft brush can be used carefully. Avoid hard tools — thin aluminum fins bend easily, and damaged fins create additional airflow problems on top of the original fouling.
For heavy contamination, low-pressure water cleaning may be required, provided the system design and installation environment allow it.
· Avoid high-pressure water jets
· Clean in the opposite direction of normal airflow
· Ensure electrical components are fully protected before starting
For industrial applications, a scheduled cleaning plan is generally more cost-effective than waiting until performance has already dropped noticeably.
After cleaning, verify whether performance has actually improved. Recommended checks include:
· Fluid inlet and outlet temperature
· Ambient temperature conditions
· Fan operation status
· Pressure drop across the system
· Overall cooling capacity
Comparing before-and-after data confirms whether contamination was actually affecting system efficiency. For critical applications, pairing this step with continuous sensor monitoring supports a broader predictive maintenance strategy — catching performance drift between cleaning cycles, not just at inspection time.
In many outdoor applications, preventing contamination is more effective than frequent cleaning. For dusty, sandy, or insect-prone sites, dry coolers can be equipped with:
· Sand-proof louvers
· Insect-proof mesh
· Protective filters
· Special surface coatings
· Optimized airflow design
These features are common in desert regions, mining sites, and remote installations where maintenance access is limited. A well-designed custom dry cooler should account for the operating environment from the start — not just the heat rejection numbers on a datasheet.

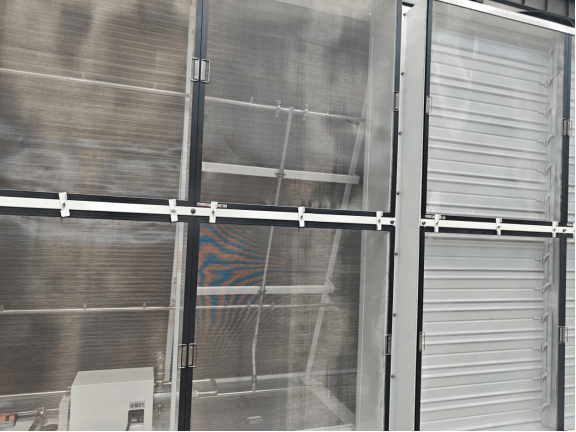

SINRUI dry cooler equipped with sand-proof louvers and insect-proof mesh for outdoor use
Cleaning frequency depends heavily on the installation environment:
· Clean every few months in clean industrial environments
· Increase inspection frequency in dusty or outdoor locations
· Perform additional checks during seasonal transitions
Regular inspection lets operators catch developing problems before they become major failures.
It depends on the environment. Clean industrial sites may only need cleaning every few months, while dusty, coastal, or desert installations often require monthly or seasonal attention. Visual inspection during routine rounds is the simplest way to judge actual cleaning frequency for your site.
In most cases, yes. Low-pressure air cleaning and soft brush cleaning can typically be performed while the unit stays in operation. Water cleaning may require a brief operational adjustment depending on system design, but a full shutdown is rarely necessary for routine maintenance.
Beyond reduced cooling capacity, a fouled coil forces fans to work harder and raises fluid operating temperatures, which increases stress on pumps and connected equipment. Left unaddressed long enough, what starts as a routine cleaning task can turn into a premature component replacement.
Maintaining a dry cooler coil doesn't require taking the system offline. With the right inspection routine, appropriate cleaning methods, and a preventive maintenance schedule, operators can keep cooling systems running efficiently while minimizing downtime.
Choosing a reliable dry cooler manufacturer matters just as much as the maintenance plan itself. SINRUI designs customized cooling solutions — with appropriate materials, corrosion protection, and environmental adaptation — for power plants, mining operations, data centers, and industrial facilities.
