Dry Cooler Selection: The Definitive Guide

Selecting the right heat rejection equipment is a critical engineering decision. For facilities aiming to eliminate water consumption and simplify maintenance, the dry cooler is the optimal solution. Unlike cooling towers, an air cooled dry cooler uses ambient air to remove heat in a closed loop. This guide provides a roadmap for selecting a closed loop dry cooling system, covering thermodynamics, configurations, and economics for applications including industrial dry cooler, HVAC dry cooler, and data center dry cooler systems.

1. The Fundamentals of Dry Heat Rejection

A finned tube dry cooler operates on sensible heat transfer. Hot fluid circulates through finned tubes forming the coil dry cooler core. Axial fans force ambient air across the tubes. Units are forced draft dry cooler (fan below coil) or induced draft dry cooler (fan above). There is no evaporation, making the process dry.

• Advantages over evaporative cooling:

• Zero water consumption

• Reduced maintenance: no sumps or chemicals—a true low maintenance dry cooler

•  No visible plume

For large power generation, a heavy duty dry cooler for power plant is used. In commercial HVAC, the closed circuit dry cooler is common.

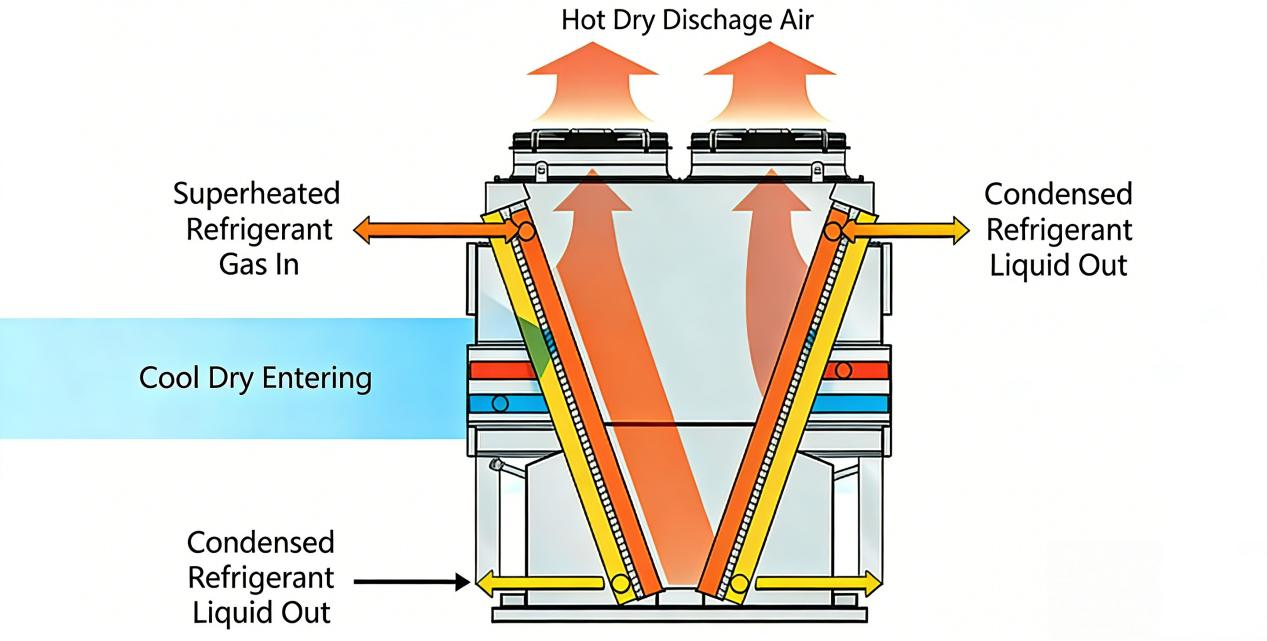

Figure 1: Cutaway view of a typical industrial dry cooler.

Dry cooler cutaway: showing finned tube coils, axial fans, and air/fluid flow paths.

2. Critical Technical Selection Parameters

Proper selection of a high performance dry cooler from a reputable dry cooler manufacturer hinges on accurately defining the operating environment and process requirements. Errors in this phase are the most common cause of system underperformance.

• Thermal and Fluid Dynamics

• Heat rejection capacity (kW)

• Fluid type and flow rate: glycol increases viscosity, requiring a larger water cooling dry cooler

• Process temperatures: inlet/outlet

• Design ambient dry-bulb temperature: most critical variable for the dry cooler for industrial cooling system

Mechanical, Acoustic, and Structural Options

Modern modular dry cooler designs offer high customization to fit site constraints. The table below outlines common specifications and options.

Technical specifications and material options for dry cooler selection

3. Site Integration, Acoustics, and Structural Flexibility

The physical installation of your dry cooling equipment requires careful planning. The unit must be positioned to ensure unrestricted airflow and to manage its acoustic footprint.

Airflow and placement: Avoid placing the unit near walls or obstructions that could cause hot discharge air to recirculate into the intake, as this drastically reduces cooling capacity.

Noise mitigation: The primary noise source is the fans. For installations near sensitive areas, selecting a low-noise dry cooler with variable speed drives and advanced blade designs is essential. Some manufacturers offer 'Super Low Noise' options that reduce sound pressure levels by 10 dB(A) or more.

Orientation options: Choose horizontal dry cooler for low profile or vertical dry cooler where space is limited.

Modularity: A modular dry cooler allows staged expansion, ideal for mining or injection molding applications.

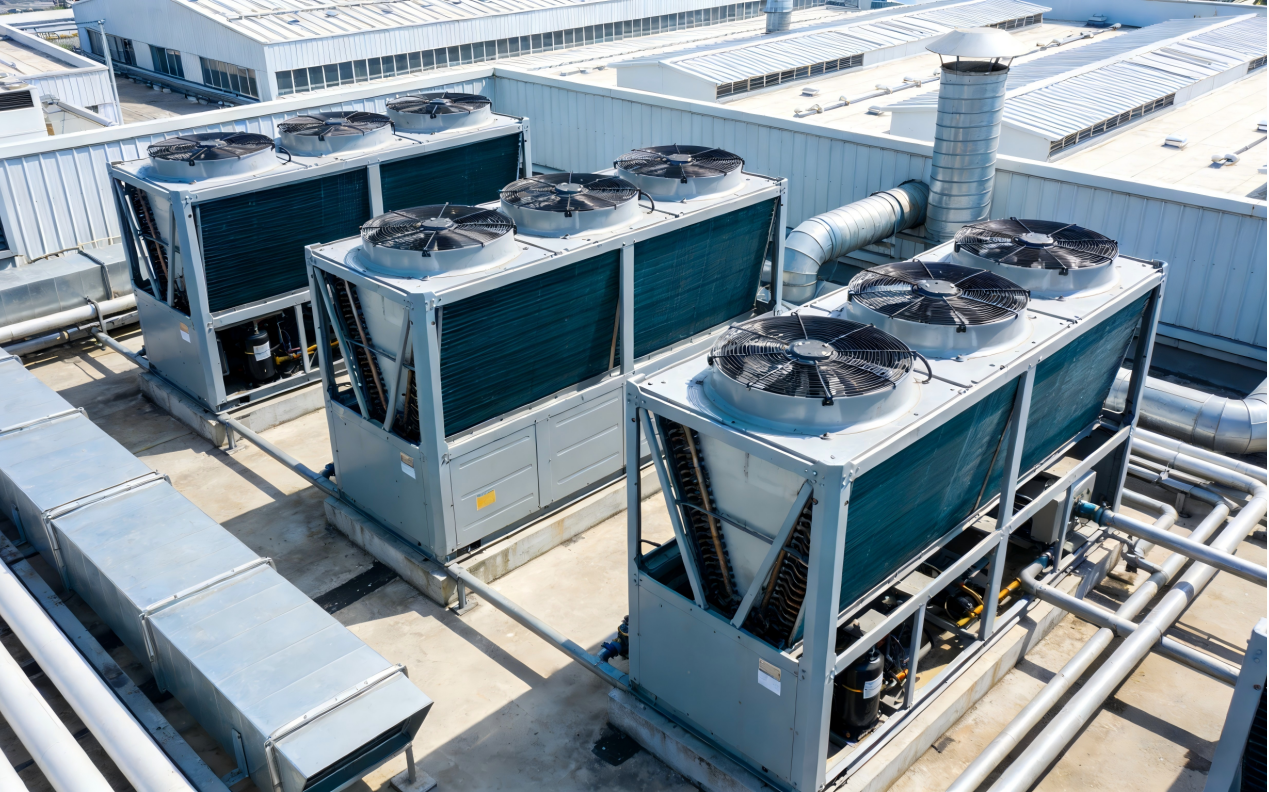

Figure 2: Rooftop installation of V-configuration dry coolers.

Rooftop V-type dry coolers: space-efficient layout for industrial & commercial buildings

4. The Economic Advantage of “Free Cooling”

When ambient temperature drops below the required fluid temperature, the dry cooler for water chiller system can provide full cooling without mechanical refrigeration. This can reduce annual energy consumption for heat rejection by 60 80%. A life cycle cost analysis should include:

Operational energy (especially with energy saving dry cooler and EC fans)

• Initial capital cost (e.g., custom design industrial dry cooler)

•  Water & sewage savings

• Maintenance savings: a low maintenance dry cooler lowers total cost of ownership

• For compact integration, a dry cooler with fan and pump package simplifies installation.

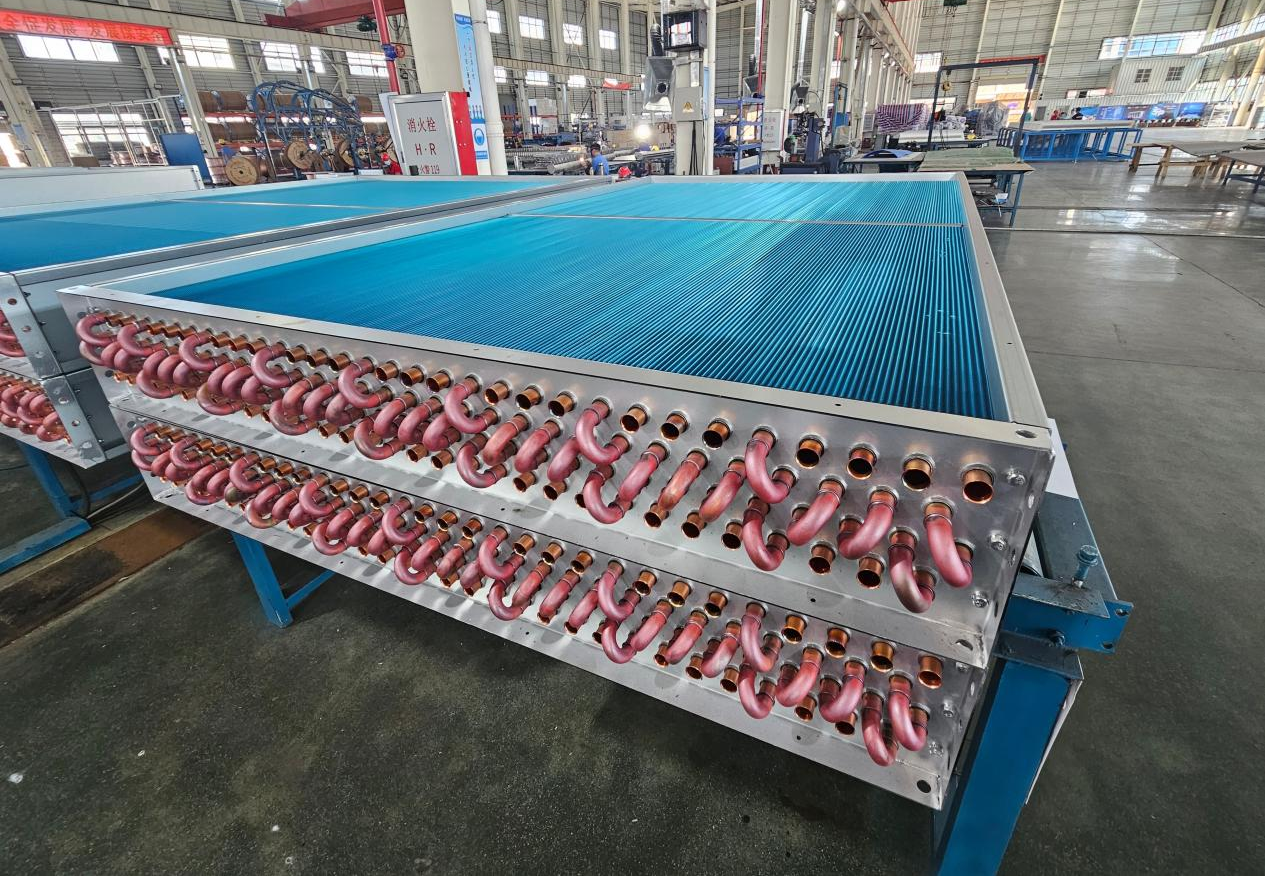

Figure 3: Close-up of a finned tube heat exchanger coil.

Close-up of a finned-tube dry cooler coil, core heat transfer component, showing fins and tube layout

5. Practical Selection Checklist

To ensure a successful project, follow this systematic checklist when specifying a new dry cooler for industrial cooling system:

1. Define thermal load: Confirm required heat rejection (kW) at design conditions.

2. Gather climate data: Obtain local summer design dry-bulb temperature.

3. Specify fluid: Determine type, glycol percentage, flow rate.

4. Assess site constraints: Space, weight, noise limits—guide choice of horizontal dry cooler, vertical dry cooler, or modular dry cooler.

5. Consider special applications: Verify performance for generator dry cooler, engine dry cooler, or refrigeration dry cooler under cyclic loads.

6. Review materials: For harsh environments, specify corrosion resistant dry cooler with epoxy-coated fins and stainless steel tubing.

7. Evaluate controls: Use VFDs for energy optimization, critical for data center dry cooler applications.

8. Perform cost analysis: Compare total installed cost against long-term savings. A high efficiency dry cooler may have higher initial cost but superior ROI.



The dry cooler—whether air cooled dry cooler, closed circuit dry cooler, or water cooling dry cooler—is a sustainable solution for process cooling. It conserves water, reduces maintenance, and enables free cooling. Successful selection requires understanding thermal dynamics, evaluating site conditions (ambient temperature, noise), and focusing on long term economics. For critical projects, partnering with a trusted dry cooler manufacturer for a custom design industrial dry cooler ensures the best fit.
