Hydraulic fracturing fleets operate under sustained high loads, often in hot, dusty and remote oilfield environments. For OEMs and operators, radiator performance directly affects engine temperature, equipment availability and maintenance requirements.

Recent activity in Argentina’s Vaca Muerta and Australia’s Beetaloo Basin also shows continued investment in unconventional oil and gas development. As frac fleets and supporting equipment expand into demanding operating environments, cooling systems need to be designed around actual heat load, airflow and site conditions—not simply external radiator dimensions.

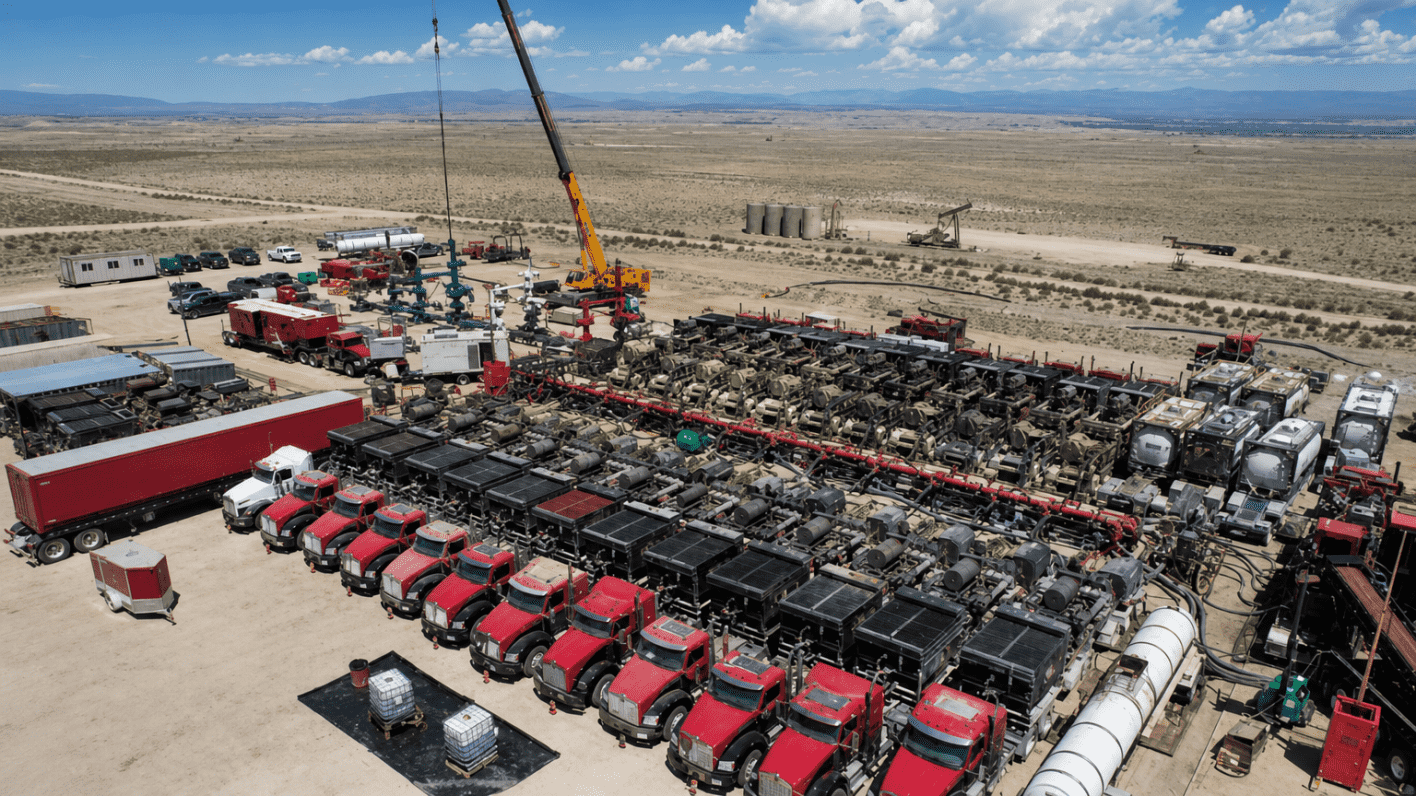

Fracturing fleet operating at an oilfield site with heavy-duty pumping equipment.

1. Why Frac Trucks Need Heavy-Duty Cooling

A fracturing truck operates very differently from a conventional road vehicle. During pumping operations, the engine and powertrain may remain under high load for extended periods while the cooling package is exposed to heat, dust, vibration and limited installation space.

If cooling capacity or airflow is insufficient, coolant temperature can rise, engine performance may be limited and unplanned downtime can follow. For this reason, a frac truck radiator should be selected as part of the complete cooling system rather than as a stand-alone component.

2. Key Factors in Frac Truck Radiator Design

A reliable design starts with the actual operating duty. Heat rejection, coolant flow, allowable coolant pressure drop, fan performance and air-side resistance need to be evaluated together. High ambient temperature reduces the temperature difference available for heat rejection, while dust and debris can progressively restrict airflow through the core. Vibration and chassis movement also place additional structural demands on the radiator and its mounting system. For a related example of how cooling-system layout, airflow and installation conditions affect performance in demanding oil & gas applications, see FPSO Cooling Challenges: How Reliable Radiators Support Offshore Oil & Gas Operations.

Key design inputs include:

· Required engine heat rejection

· Coolant flow rate and inlet/outlet temperatures

· Maximum ambient temperature

· Allowable coolant pressure drop

· Fan airflow and available static pressure

· Core air-side pressure drop

· Dust and debris exposure

· Vibration, mounting and installation constraints

· Access for cleaning and maintenance

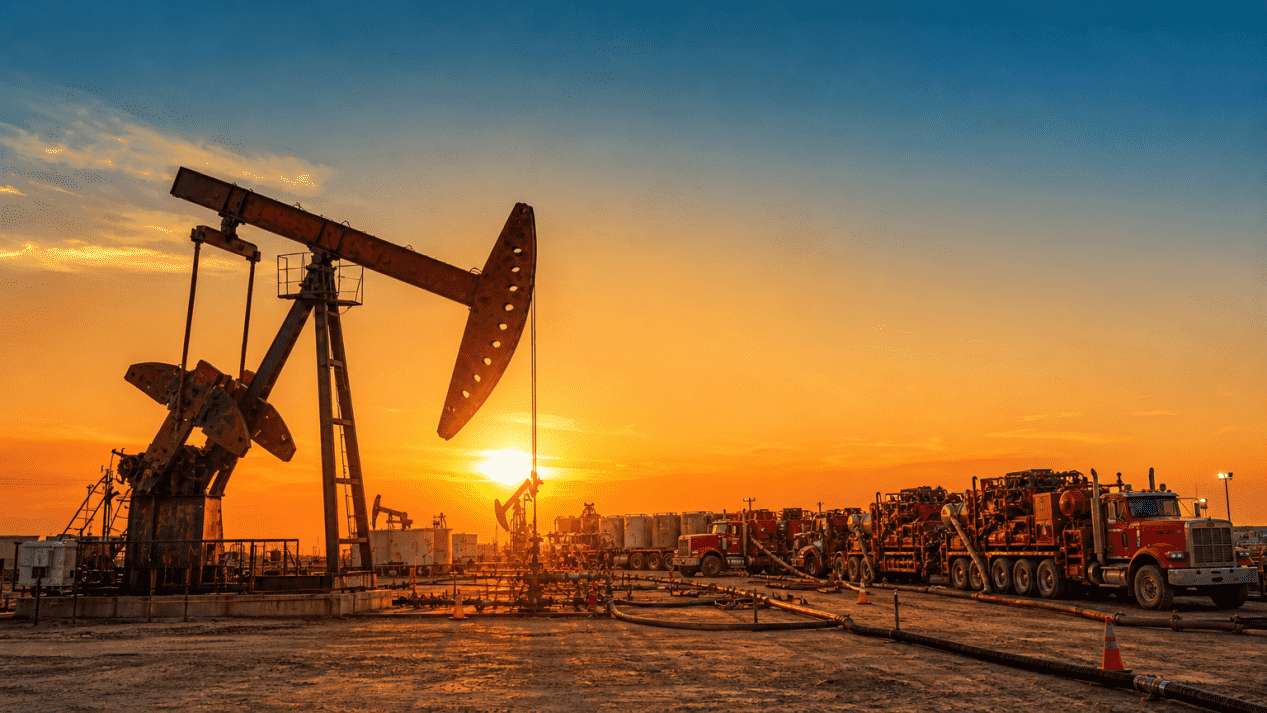

Fracturing fleet and pumping equipment operating in a remote oilfield environment.

3. When Does a Horizontal Radiator Make Sense?

A horizontal radiator can be a practical option when installation height is limited or when the cooling package must fit around pumps, pipework and other equipment on the frac truck. Compared with a conventional vertical arrangement, the layout can be developed around the available package dimensions, fan arrangement, airflow direction and maintenance access. For another overview of radiator and remote cooling configurations used in oil & gas environments, read What Cooling Systems Are Used in Offshore Drilling Operations?.

The final configuration should still be based on thermal and airflow calculations. A horizontal layout is not automatically the best choice for every frac truck; the correct arrangement depends on the equipment layout and operating conditions.

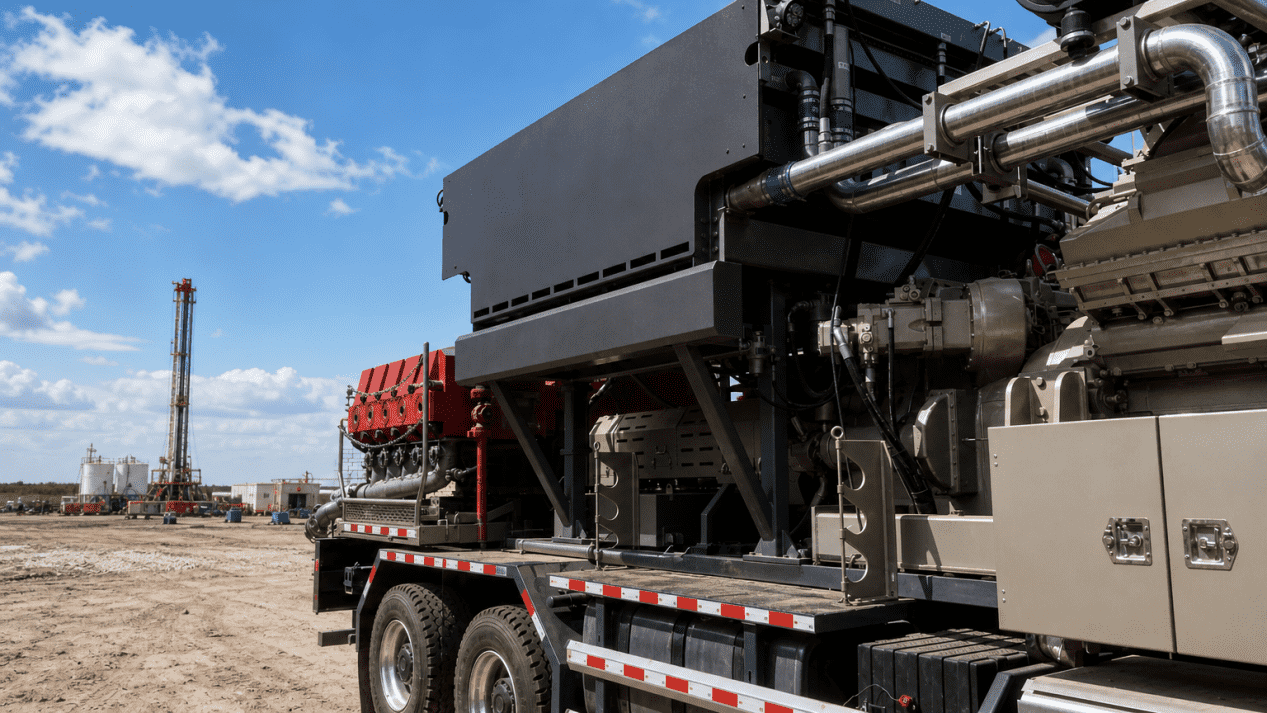

Fracturing truck equipment section showing cooling-system integration, pump systems and pipework.

4. Replacement Radiators for Existing Frac Fleets

Many oilfield-service companies keep frac equipment in operation for years. Over time, radiator cores may become blocked, corroded or damaged, while original parts can become difficult or expensive to source.

A replacement frac truck radiator can be developed from the existing radiator, engine model, drawings, nameplate information, installation dimensions and operating conditions. For older equipment, the original part number or drawing may no longer be available; photos and physical measurements can provide a useful starting point.

The key is to verify the complete cooling requirement rather than simply copy the external dimensions. A replacement project can also be an opportunity to improve cooling performance, maintenance access or suitability for a different ambient condition. The same engineering principle applies to remote cooling systems, where heat rejection, coolant flow and system pressure drop must be evaluated together. See our Remote Radiator for Generator Sets: Types, Selection, and Installation Guide for a detailed example.

5. What Information Is Needed for Radiator Selection?

For a technical evaluation or quotation, provide as much of the following information as possible:

· Frac truck / equipment model

· Engine brand and model

· Existing radiator part number or nameplate

· Radiator dimensions, drawing or sample

· Coolant flow and inlet/outlet temperatures, if available

· Maximum ambient temperature

· Fan information and installation layout

· Photos of the existing radiator and mounting position

· Required quantity and destination

Don’t have complete technical data? Send the engine model, existing radiator photos and key dimensions first. Our engineers can review the application and advise what additional information is required.

6. SINRUI Engineering & Manufacturing Support

Frac truck radiator projects often require more than matching an existing core size. SINRUI supports technical evaluation, customized layout, drawing confirmation, manufacturing and testing for both new-build and replacement projects. You can also explore SINRUI’s industrial cooling product range for related radiator, dry cooler and heat-exchanger solutions.

· Custom horizontal and vertical radiator configurations

· Replacement development from drawings, samples or field measurements

· Design review based on heat rejection, airflow and operating conditions

· Pressure and leak testing before shipment

· Support for heavy-duty engine, mining and oilfield cooling applications

If you are developing a new frac truck or replacing an existing cooling package, send us the available engine, radiator and installation information for an initial engineering review.

Frequently Asked Questions About Frac Truck Radiators

What information is needed to quote a frac truck radiator?

The most useful starting information is the equipment and engine model, existing radiator part number or dimensions, maximum ambient temperature, installation photos and required quantity. If thermal data is available, coolant flow and inlet/outlet temperatures are also helpful.

Can you manufacture a replacement radiator if the original drawing is unavailable?

Yes. Replacement radiators can be evaluated from the existing unit, engine information, nameplate, photos and field measurements. Our engineers will advise what additional dimensions or operating data are required before the drawing is confirmed.

Can a frac truck radiator be designed for high ambient temperature and dusty conditions?

Yes. The radiator can be customized around the required heat rejection, maximum ambient temperature, airflow, dust exposure and installation constraints. Core configuration and maintenance access should be considered together for harsh oilfield environments.

Do you provide custom horizontal radiators for frac trucks?

Yes. Horizontal radiator layouts can be developed when installation height is limited or the cooling package must fit around pumps, pipework and other equipment. The final arrangement is confirmed according to thermal requirements, airflow and available space.
