Offshore drilling platforms are among the most demanding environments in the energy industry. Operating far from shore and exposed to salt-laden air, high humidity, and extreme weather, these platforms depend on a continuous and reliable power supply to support drilling rigs, safety systems, accommodation facilities, and auxiliary equipment.
To meet these needs, heavy-duty diesel generator sets are widely used, including models such as the CAT 3516B, Cummins QSK50, and MTU 16V4000. These engines are the backbone of offshore operations, delivering the power needed to keep the entire platform running 24/7.
Yet, the reliability and efficiency of these engines are inseparable from effective cooling. In marine environments, standard radiators and cooling systems are highly susceptible to corrosion, which can shorten their service life and compromise performance. For this reason, corrosion-resistant radiator assemblies play a vital role in offshore platforms, ensuring that generator sets maintain stable operation even under the harshest conditions.

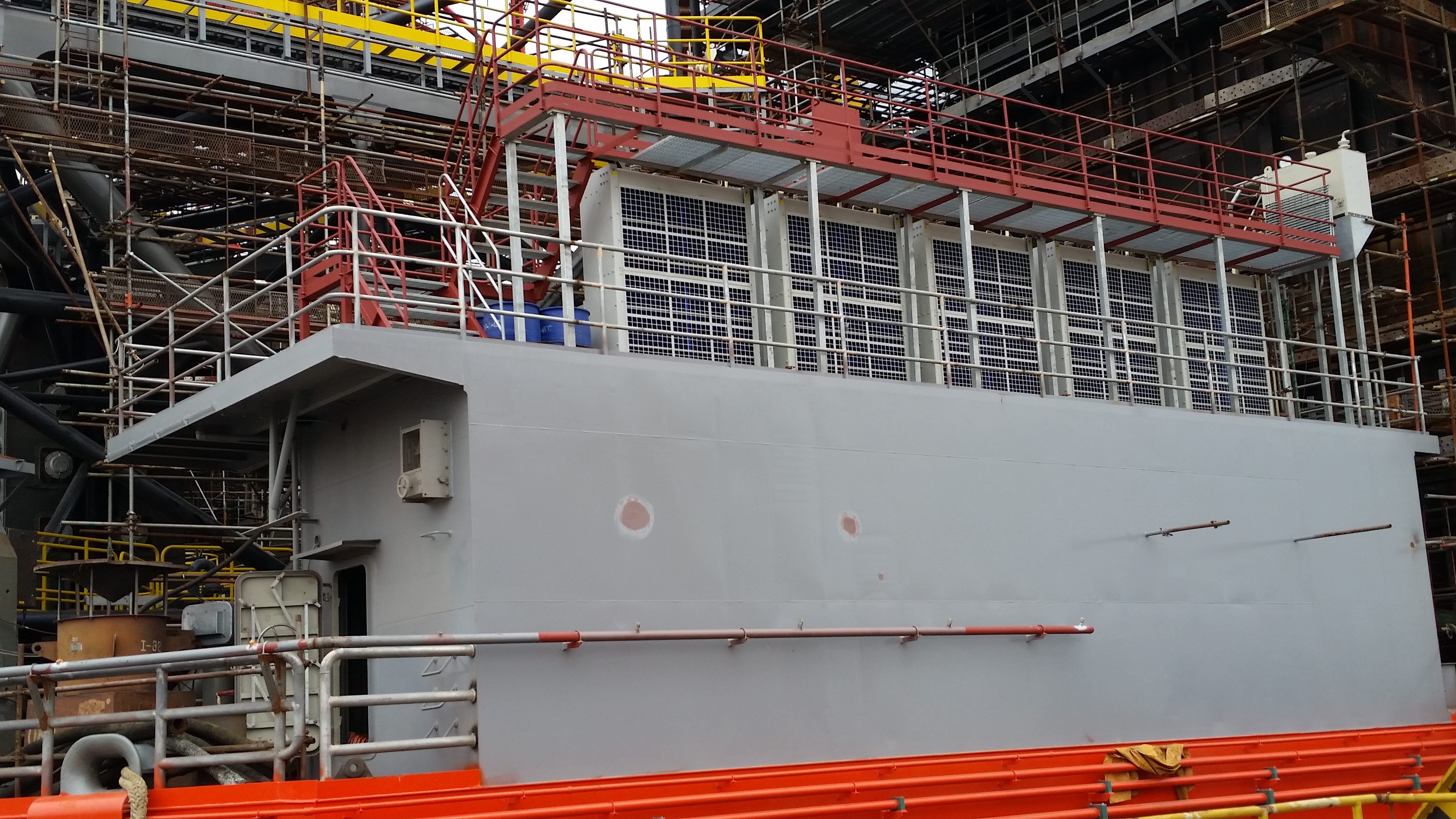

Recently, Sinrui supplied five such radiators for CAT 3516B generator units on an offshore drilling platform safeguard continuous operations.Without reliable cooling, even the most powerful engines risk costly downtime
Offshore drilling platforms rely on multiple cooling technologies to keep power generation stable under harsh marine conditions. Unlike land-based systems, offshore cooling must handle continuous operation, high ambient temperatures, and saltwater corrosion. Some of the most common solutions include:
·Engine-Mounted Radiators – ideal for compact installations where direct engine cooling is needed.
Many generator sets, such as the Caterpillar 3516B or Cummins QSK50 series, are equipped with engine-mounted radiators. These systems use a closed-loop of coolant circulating through the engine block and a finned radiator core, with fans forcing air across the surface to dissipate heat. Engine-mounted radiators are compact and reliable, but require corrosion-resistant materials and coatings to withstand the marine environment.
·Remote Dry Coolers – ideal for installations where space is limited near the main equipment
On platforms where space or airflow is limited, remote dry coolers are often installed. These units operate similarly to radiators but are positioned away from the engine room, using large axial fans to drive cooling air across finned heat exchangers. By separating the cooling system from the generator set, they reduce noise and heat build-up in confined areas.
·Shell-and-Tube Heat Exchanger – best for heavy-duty, continuous operation where seawater can be utilized.
For heavy-duty applications, platforms frequently integrate shell-and-tube heat exchangers, which use seawater as a natural cooling medium. Coolant circulates inside corrosion-resistant copper or cupronickel tubes, while seawater flows around the shell, efficiently transferring heat. Sinrui has previously supplied multiple corrosion-resistant shell-and-tube heat exchangers for MITSUBISHI S12R-F1PTAW2 generator sets operating on ADNOC offshore drilling platforms. These units ensure long-term performance while meeting stringent environmental and operational requirements.
·Auxiliary Cooling Systems – suitable for supplemental cooling needs where additional heat dissipation is required beyond the main engine or system.
In addition to main engine cooling, auxiliary systems are often required for lubrication oil, hydraulic systems, and electrical components. These can include compact plate heat exchangers, dedicated oil coolers, or hybrid systems designed to maximize waste heat recovery.

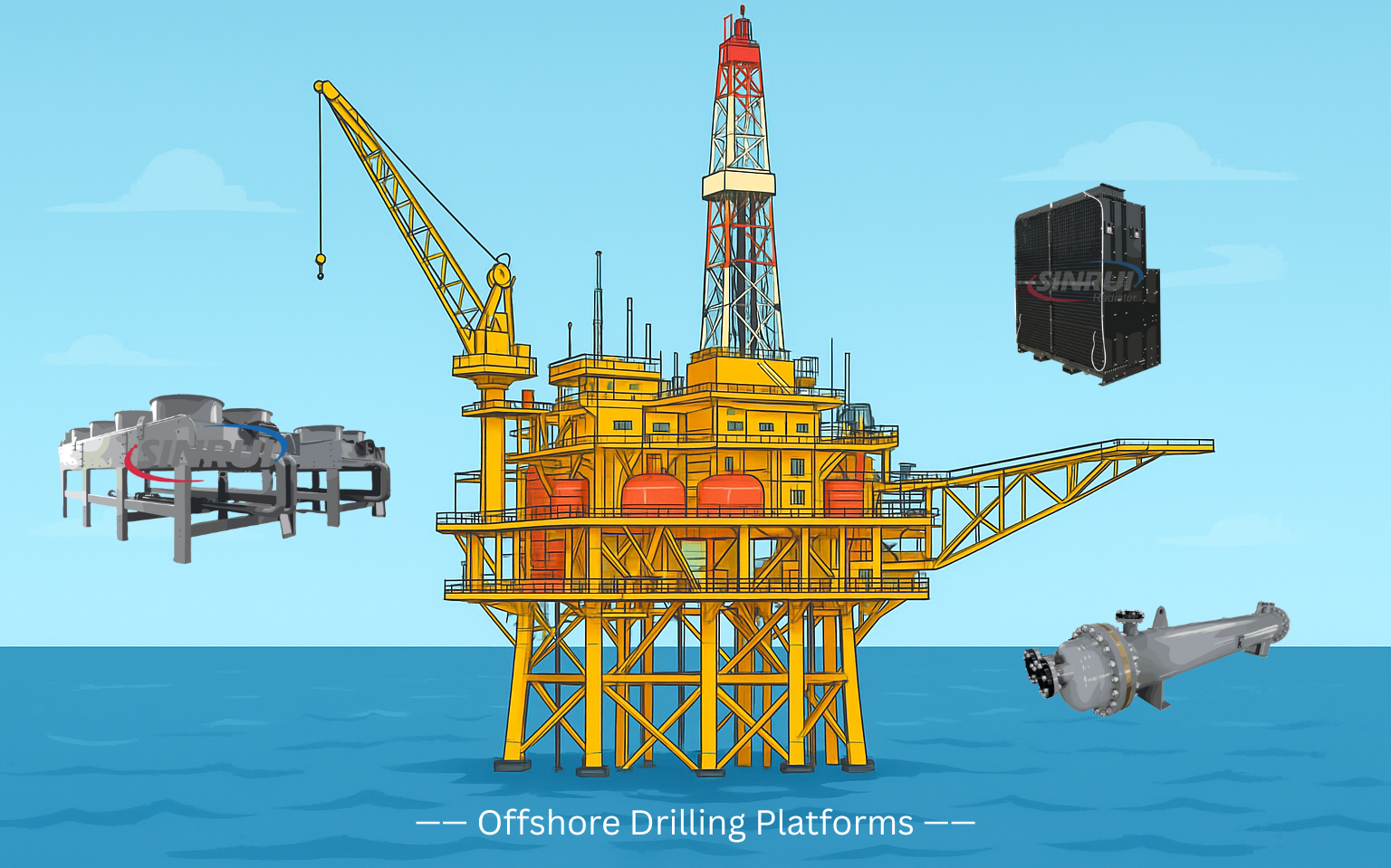

Click on the image below to view more cooling devices on offshore drilling platforms
> > > Contact us Now
Maintenance and Reliability of Cooling Systems
Regular inspection and maintenance are critical to ensure stable operation of cooling systems on offshore drilling platforms. Salt-laden air, high humidity, and continuous engine operation accelerate wear on components such as fans, tubes, and radiator cores. Preventive maintenance—such as cleaning, corrosion checks, and replacement of worn parts—helps reduce unplanned downtime and extends the service life of cooling equipment.

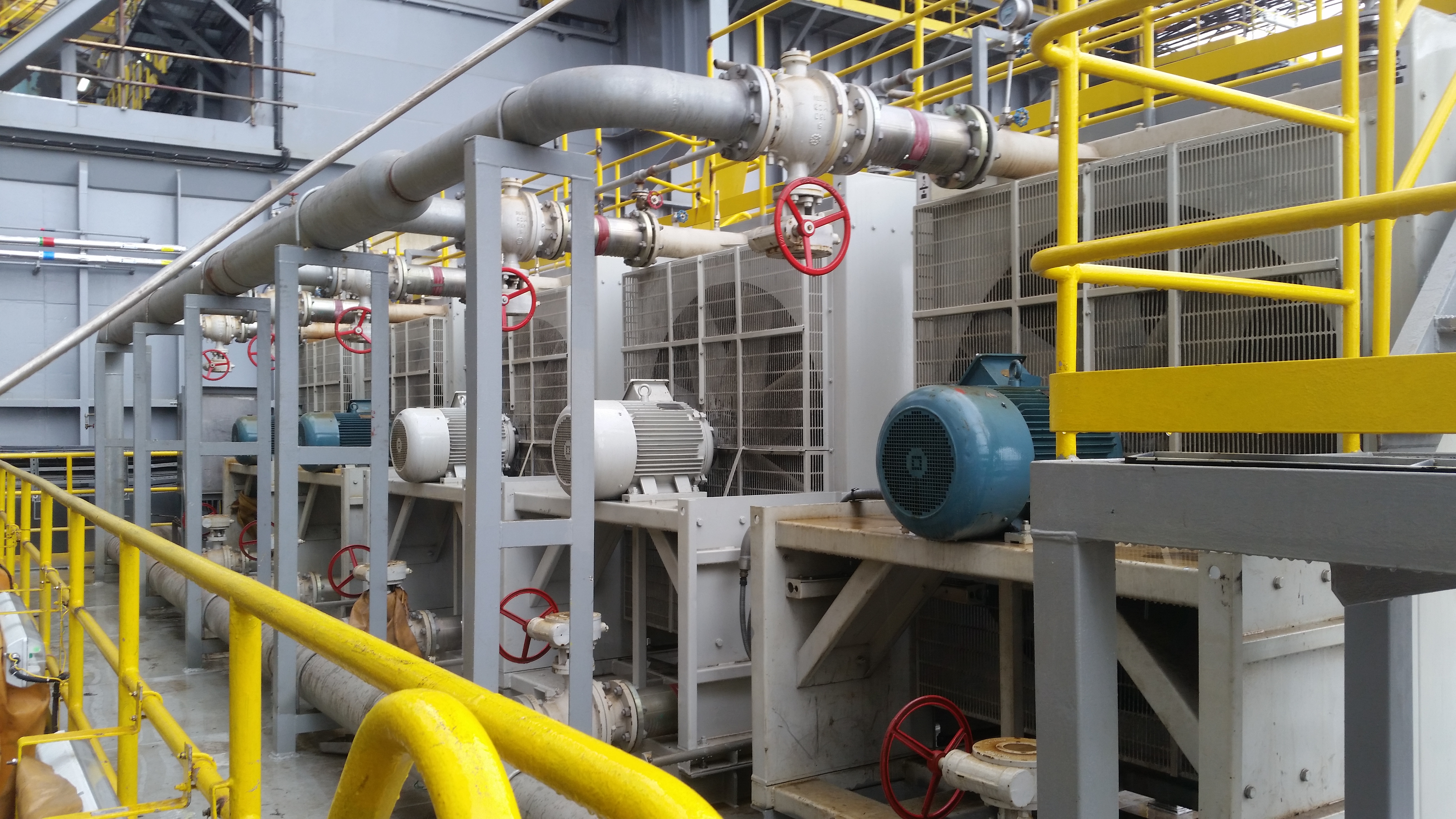

In addition to routine service, long-term reliability depends on selecting cooling systems that are engineered for marine environments from the start. Materials with high resistance to corrosion, protective coatings that meet offshore standards, and designs that allow easier cleaning and servicing all make a significant difference. For example, radiators with reinforced cores and special anti-corrosion treatments can operate steadily in harsh salt spray without frequent replacements.
Some suppliers, such as Sinrui, further enhance reliability by offering extended product warranties and technical support, ensuring operators not only get durable equipment but also confidence in long-term performance.
By combining proper maintenance practices with purpose-built designs, offshore platforms can achieve both efficiency and operationalsecurity.Choosing suppliers that combine robust design with reliable after-sales service ensures confidence for operators worldwide.
Selecting the appropriate cooling system for an offshore drilling platform is not a one-size-fits-all decision. Each installation comes with unique requirements based on the equipment being cooled, environmental conditions, and operational demands. Some of the most important considerations include:
1. Type of Equipment Being Cooled
The cooling needs of a main generator set (e.g., Caterpillar 3516B or Cummins QSK50) differ significantly from those of auxiliary systems such as lubrication oil, drilling equipment hydraulics, or electrical modules. Understanding what component requires temperature regulation is the first step.
2. Operating Environment
Offshore platforms face high humidity, salt-laden air, and fluctuating ambient temperatures. Cooling equipment must be built with anti-corrosion materials (such as coated fins, stainless steel structures, or cupronickel tubes) and designed to perform reliably in harsh marine climates.
3. Cooling Capacity & Space Availability
Radiator or heat exchanger capacity must match the engine’s heat rejection rate, while also fitting into the limited space available on the platform. Compact, modular designs are often preferred, especially in retrofits where space is constrained.
4. Maintenance & Serviceability
On offshore rigs, downtime is costly. Cooling systems that allow for easy cleaning, tube replacement, and fan servicing reduce maintenance burden and ensure consistent uptime.
5. Integration with Existing Systems
Some platforms may requireengine-mounted radiators, while others benefit more from remote dry coolers or seawater-cooled shell-and-tube exchangers. The choice depends on how well the cooling device integrates with the platform’s overall energy and waste heat management system.
This makes upfront consultation with experienced manufacturers essential.
Selecting the right cooling solution for offshore drilling platforms is not only about efficiency but also about long-term reliability in one of the harshest environments on earth. Operators must evaluate the type of equipment to be cooled, the available space, and the environmental conditions such as high salinity and humidity. Materials, corrosion protection, and ease of maintenance all play a decisive role in ensuring stable performance.
With extensive experience in supplying corrosion-resistant radiators and shell-and-tube heat exchangers for offshore platforms, Sinrui provides solutions designed to meet these exacting requirements. Backed by a four-year product warranty and strong engineering capability, our team ensures that every cooling system is optimized for durability, performance, and integration into complex platform operations.
