| Engine Model | Cummins KTA50-G3 60Hz | |||||||
| Engine Type | 16 Cylinders, 60° V Type, 4 Stroke Diesel | |||||||
| Displacement | 50 L | |||||||
| Rated Generator Output | 1250 kW / 1562 kVA | |||||||
| Coolant Capacity (total system) | ~152L | |||||||
| Cooling Air Flow | 34.6 m³/s | |||||||
| Limiting Ambient Temperature | 51 °C | |||||||
| Quantity: | |
|---|---|
KTA50 Series Engine is a high-performance, heavy-duty diesel engine known for its reliability and power output in demanding industrial applications. With a displacement of 50 liters, this 16-cylinder engine is widely used in power generation, mining, oil & gas, marine, and large-scale construction machinery.

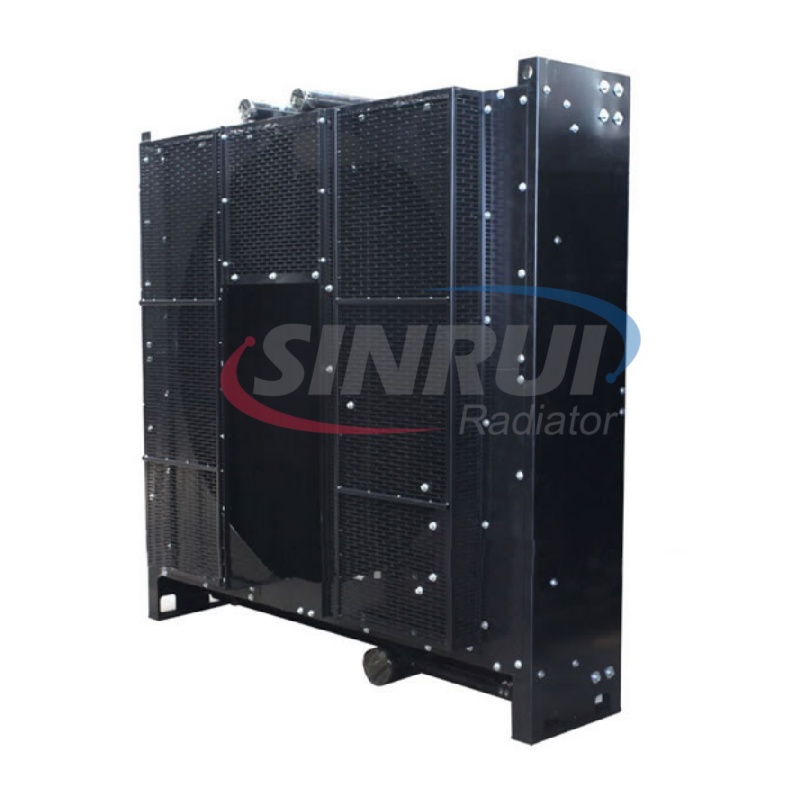

SINRUI offers custom-engineered cooling solutions tailored for the KTA50 series. These radiators are designed to meet the specific cooling requirements of high-horsepower engines, ensuring optimal thermal management under extreme operating conditions.
Key cooling system features include:
Dual-loop cooling design, separating high- and low-temperature circuits for enhanced thermal efficiency.
Independent pumps driving each loop, minimizing thermal interference.
Modular construction, allowing for easy maintenance and improved durability.
Customization available based on altitude, ambient temperature, and application type.
Generator Radiator list
CUMMINS | 4BT,6BT,6BTA,NT855,NTA855,KTA19,KTA38,KTA50,QSK23,QSK50,QSK60,QSK78,QSK90,VTA28 |
MTU | 12V2000,16V2000,18V2000,12V4000,16V4000,20V4000 |
MITSUBISHI | S6R,S12R,S12H,S16R,S16R2,S12A2 |
PERKINS | 4006,4006-TAG,4008-TAG,4012-46TAG,4016-61TRG |
CAT | 3512,3516B,3508B,C15 |
