As data centers continue to expand, especially with the rapid growth of AI computing and high-density GPU infrastructure, cooling has become a critical part of facility design.
A cooling system must remove large amounts of heat continuously, but it also consumes electricity. Therefore, when selecting a dry cooler for a data center, cooling capacity should not be the only consideration.
A simple way to understand the relationship is:
Cooling Capacity → Airflow → Fan Power → Annual Energy Consumption

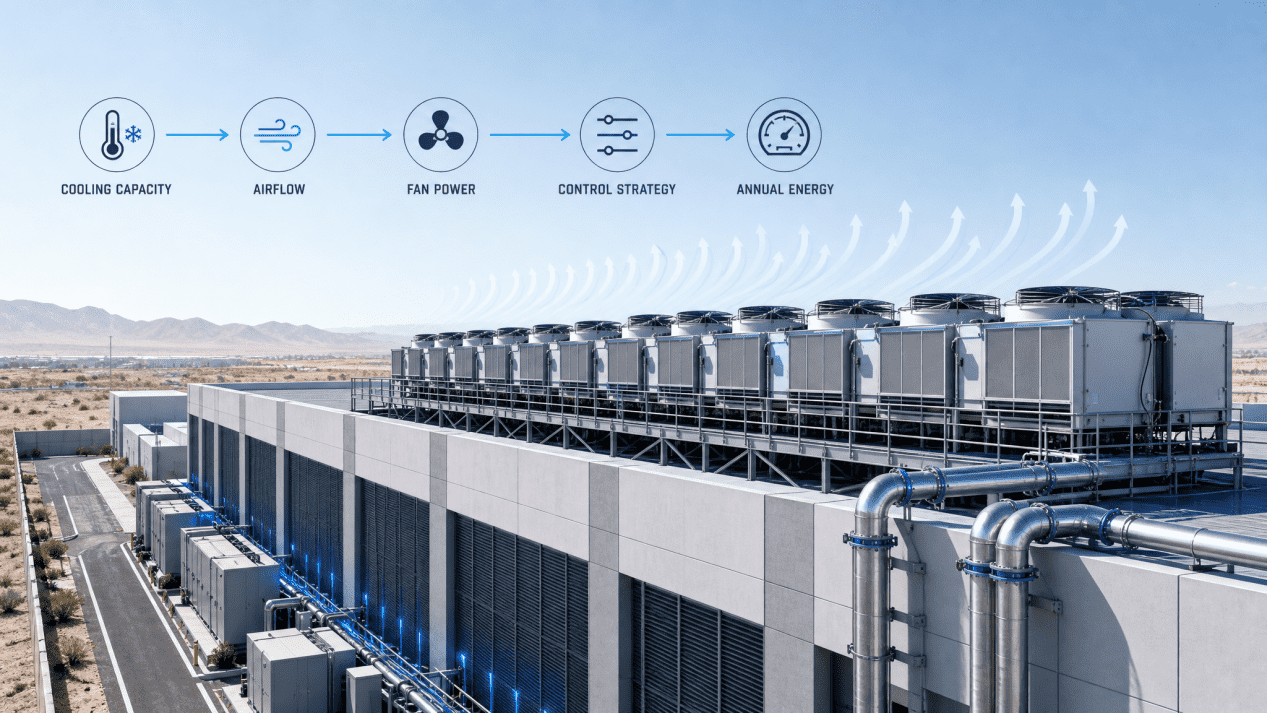

Outdoor dry cooler units for AI data centers, illustrating the logical chain: cooling capacity——>airflow——>fan power——>control strategy——>annual energy consumption.
1. Cooling Capacity Is Only the Starting Point
Most buyers first focus on cooling capacity. For example, a project may require a 1 MW dry cooler under a specific ambient temperature and fluid temperature condition.
However, two dry coolers with similar cooling capacity may have significantly different energy consumption.
The difference can come from:
· Heat exchanger design
· Heat transfer efficiency
· Airflow
· Fan efficiency
· Air-side pressure drop
· Ambient temperature
· Fan control strategy
· System redundancy
Cooling capacity tells you how much heat the equipment can reject. It does not tell you how much electricity the cooling system will consume.
2. Airflow and Fan Power
A dry cooler transfers heat from the process fluid to ambient air. To reject more heat, sufficient airflow must pass through the heat exchanger.
The basic relationship can be understood as:
Higher cooling demand → Higher required airflow → Potentially higher fan power consumption
However, simply increasing airflow is not always the best solution. An efficient air-cooled heat exchanger should achieve the required heat rejection through an appropriate combination of heat-transfer area, airflow and fan performance.
This is why heat exchanger core design matters.
A well-designed heat exchanger can help achieve the required thermal performance without relying unnecessarily on excessive airflow or fan power.

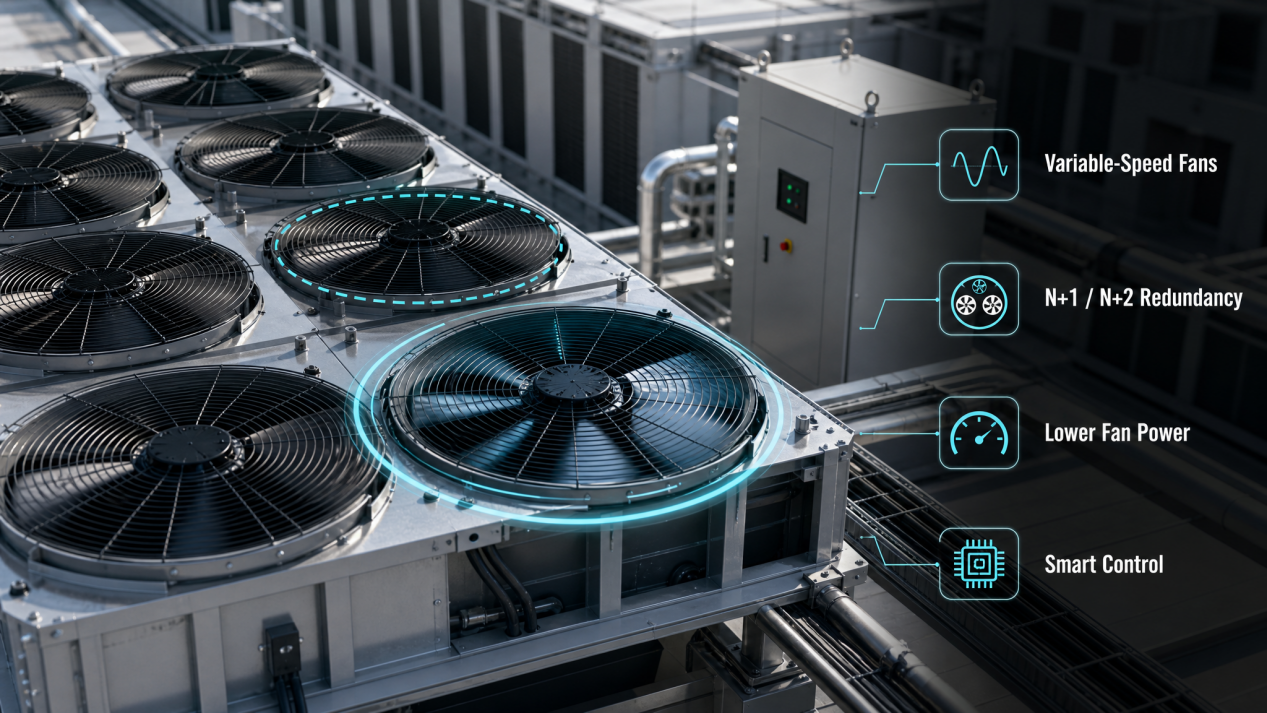

Dry cooler fan modules showing variable-speed fans, N+1/N+2 redundancy, lower fan power and smart control for data-center energy-saving cooling.
3. Fan Efficiency Matters
Fans are one of the major electrical loads in an air-cooled cooling system, especially when the equipment operates continuously.
For example, if a dry cooler uses 10 fans rated at 4 kW each, the maximum rated fan power is:
10 × 4 kW = 40 kW
However, 40 kW represents the maximum rated fan power, not the actual average power consumption.
With variable-speed fans, actual power consumption changes according to cooling demand, ambient temperature, operating conditions and fan speed.
For fans operating under similar conditions, fan power generally follows the fan affinity laws and varies approximately with the cube of rotational speed. Therefore, reducing fan speed can significantly reduce power consumption.
This makes fan control strategy an important part of data center cooling efficiency.
4. Ambient Temperature Changes Performance
Ambient temperature has a direct impact on dry cooler performance.
A dry cooler operating at 25°C ambient faces very different conditions from one operating at 40°C or higher.
As ambient temperature increases, the available temperature difference for heat rejection decreases. The system may therefore require higher airflow, higher fan speed or a larger heat-transfer area.
For data centers located in hot climates, the design ambient temperature should be clearly defined before selecting the dry cooler.This is one of the key inputs covered in our dry cooler capacity calculation guide — along with heat load, fluid type, and approach temperature.
Instead of simply asking:
“Can this dry cooler provide 1 MW?”
The better question is:
“Can it provide 1 MW at our actual design ambient temperature and operating conditions?”
5. Calculate Annual Energy Consumption
A simple calculation is:
Annual Energy Consumption = Average Electrical Power × Operating Hours
The key point is that average electrical power should be based on the actual operating profile, rather than simply using the maximum rated fan power.
For illustration only, if the average fan power over the year were assumed to be 32 kW, and the system operated continuously for 8,760 hours:
32 × 8,760 = 280,320 kWh/year
That equals approximately 280 MWh of annual fan energy consumption.
This example is for illustration only. In an actual data center project, total cooling-system energy consumption should be calculated using the complete electrical load profile, including fan operation and other auxiliary components.
The actual annual energy consumption will depend on factors such as:
· IT and cooling load profile
· Ambient temperature profile
· Fan-speed control
· Operating strategy
· Redundancy configuration
· Operating hours
This is why the initial equipment price should not be the only purchasing consideration. For a data center, long-term operating cost and total cost of ownership (TCO) can be equally important.
6. Consider Redundancy and Control Strategy
Data centers often require N+1 or N+2 redundancy to maintain cooling reliability.
Redundancy provides additional capacity in case of equipment failure or maintenance. However, the control system should also determine how many fans or cooling modules need to operate under different loads.
A well-designed system should balance:
Reliability + Cooling Performance + Energy Efficiency
rather than simply operating every fan at maximum speed.
An intelligent control strategy can adjust fan speed and operating modules according to actual cooling demand, helping avoid unnecessary energy consumption during part-load conditions. Pairing redundant systems with continuous condition monitoring — see our guide on building a predictive maintenance program for dry cooling systems — helps ensure standby units are actually ready when needed, not just installed.
Sinrui Radiator data-center cooling visualization contrasting server-side heat transfer process with bar-chart trend of reduced annual energy consumption.
7. What Should Buyers Compare?
When evaluating a data center dry cooler, experienced buyers should look beyond cooling capacity and compare:
l Cooling capacity
l Design ambient temperature
l Airflow
l Fan power
l Fan efficiency
l Heat transfer efficiency
l Pressure drop
l Fan control strategy
l Operating hours
l Redundancy requirements
The goal is not simply to remove heat.
The goal is to remove the required heat efficiently, reliably and with reasonable energy consumption.
Frequently Asked Questions
1. How much power does a data center dry cooler consume?
It depends on the number and size of fans, fan speed, ambient temperature, cooling load, control strategy, and operating hours. The maximum rated fan power should not be treated as the actual average power consumption.
2. How does ambient temperature affect dry cooler energy use?
As ambient temperature rises, the temperature difference available for heat rejection becomes smaller. The system may need higher airflow, higher fan speed, or a larger heat-transfer surface to maintain the required cooling capacity.
3. What information is needed to select an energy-efficient data center dry cooler?
Key inputs include cooling capacity, design ambient temperature, airflow, fan power and efficiency, heat-transfer performance, pressure drop, control strategy, operating hours, and redundancy requirements.
At Sinrui Radiator, we design cooling solutions according to actual project requirements, including cooling capacity, ambient temperature, airflow, fan selection, redundancy and control strategy.
For data centers, AI data centers, liquid cooling systems and other high-density applications, the right cooling solution should be evaluated from both thermal performance and long-term energy efficiency.
Cooling Capacity → Airflow → Fan Power → Control Strategy → Annual Energy Consumption
The goal is simple: Remove the heat. Use the energy wisely.
