Custom Radiator for Mitsubishi S16R-F1PTAW2 Engine 1600–2000kW

Share to:

Generator radiator product feature:

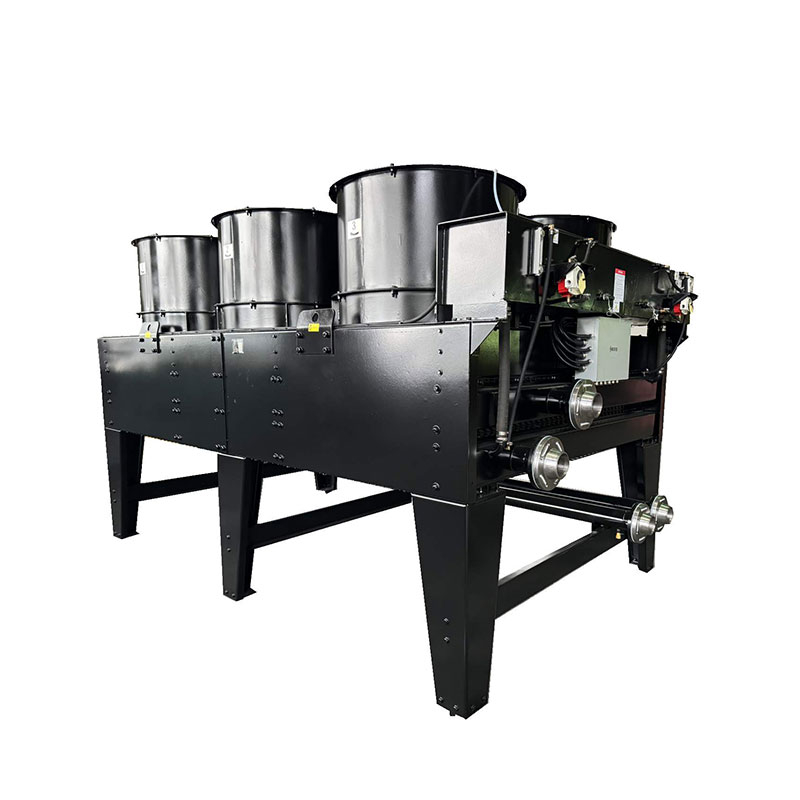

This Sinrui radiator is designed specifically for the Mitsubishi S16R-F1PTAW2 generator set. It features a dual-circuit liquid cooling system and is suitable for full-power (approximately 1917 kW) operation. Its core utilizes a high-thermal-conductivity, high-density copper tube-fin structure and supports the following configuration options to meet demanding operating conditions:

Engine Model				Mitsubishi S16R-F1PTAW2
Engine Type				16 Cylinders, 60° V Type, 4 Stroke Diesel
Displacement				65.37 L
Cooling System				water-cooled with separate jacket water and charge-air cooling circuits
Aspiration				Turbocharged

Radiator Configuration

Dual-core Custom Cooling Assembly

Availability:

Quantity:



Inquire

Product Description

Generator Radiator list

CUMMINS	4BT,6BT,6BTA,NT855,NTA855,KTA19,KTA38,KTA50,QSK23,QSK50,QSK60,QSK78,QSK90,VTA28,LTA
MTU	12V2000,16V2000,18V2000,12V4000,16V4000,20V4000
MITSUBISHI	S6R,S12R,S12H,S16R,S16R2,S12A2
PERKINS	4006,4006-TAG,4008-TAG,4012-46TAG,4016-61TRG
CAT	3512,3516B,3508B
