Why Successful Replacement Requires More Than Reproducing the Original Drawing
In offshore applications, replacing a cooling package is rarely a simple “copy and replace” process.
Many replacement projects appear straightforward at first: same engine model, same installation location, similar cooling requirements, existing drawings available. However, after years of operation, the actual installation condition may differ from the original design information — sometimes by a small but decisive margin.
Our engineering team is currently working on a Cummins QSK60-DM offshore cooling package replacement project, supporting an offshore platform operating under harsh marine environmental conditions in West Africa. The project involves replacing an existing radiator package installed on a QSK60-DM engine-driven system.
From the beginning, our engineering approach was clear: before manufacturing, we needed to fully understand the real installation requirements — not just reproduce the original drawing.

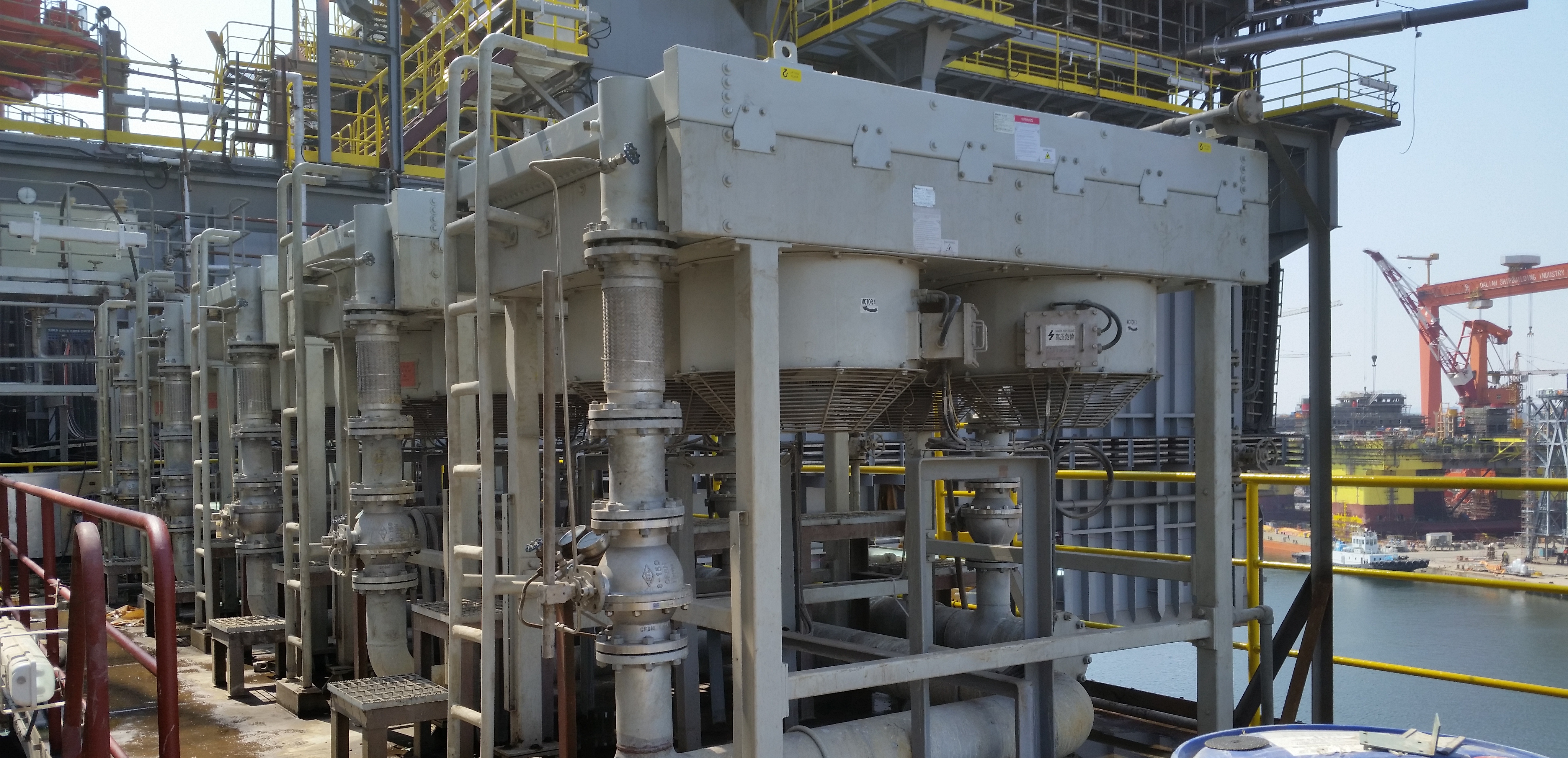

Figure 1 placeholder — replace with a licensed offshore platform image before publishing; the original image cannot be used commercially
At the beginning of the project, the customer provided existing radiator drawings, a technical data sheet, installation information, and equipment requirements. For many suppliers, this information may appear sufficient to start production.
However, for offshore applications, manufacturing directly from existing documents can carry risk. Offshore equipment often operates for many years under demanding conditions, and during its service life, equipment replacement, maintenance adjustments, and mechanical modifications may occur.
During the dimensional verification process, our engineering team identified several minor differences between the original drawings and typical field conditions for equipment of this age and service history — the kind of gap commonly seen in offshore replacement projects rather than land-based ones:
● Radiator package overall height difference: approximately 20 mm
● Mounting interface position deviation: approximately 15–25 mm
● Pipe connection alignment adjustment: approximately 20 mm
● Fan clearance adjustment: approximately 30 mm
Although the original dimensions were generally correct, these small interface differences — in mounting position, connection alignment, and available clearance — are exactly the kind of detail that can derail an installation if left unverified.
Instead of proceeding directly to manufacturing, our engineers reviewed the details step by step with the customer. The drawings went through three rounds of revision over approximately three weeks before final confirmation — a timeline consistent with the coordination typically required on offshore projects involving overseas customer review cycles.
● Overall dimension review
● Skid interface confirmation
● Connection details
● Fan arrangement adjustment
● Final installation verification
The cooling package was designed to be installed on the existing skid. Unlike a standard standalone radiator, an offshore package must consider the relationship between the radiator structure, engine arrangement, skid frame, fan system, and connection points — requiring careful confirmation of mounting positions, structural support, connection interfaces, and available installation space.
The technical data sheet was also revised once during the review process, mainly focused on cooling requirement confirmation (heat rejection requirement, operating condition), fan specification updates (airflow, motor requirement), and system interface information (connection arrangement, control requirements).
A successful replacement project requires consistency between drawing information, technical parameters, and actual installation requirements — any mismatch between these documents can create uncertainty during manufacturing, installation, and commissioning.
Offshore installations differ from many land-based applications: available space is often extremely limited, and equipment must operate within a defined area while maintaining proper airflow, mechanical stability, accessibility for maintenance, and compatibility with surrounding equipment.
This is why engineers cannot only ask “can the radiator provide enough cooling capacity?” They must also ask “can the complete package be installed and operated reliably in the actual offshore environment?”

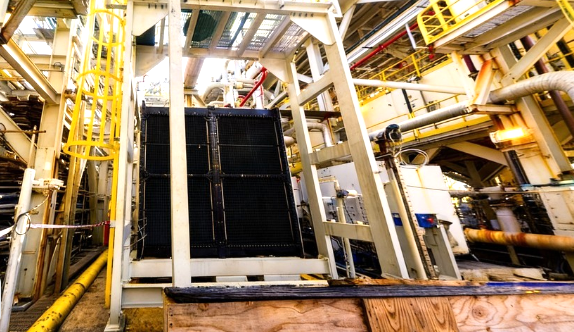

Figure 2: Industrial radiator unit mounted on offshore platform steel structure for marine generator cooling.
In projects of this scale, skipping detailed verification before manufacturing typically carries real consequences. Based on our engineering team's experience with similar offshore replacement projects, a dimensional mismatch discovered during offshore installation can result in:
● Installation modification offshore
● Additional fabrication work
● Delayed commissioning
● Increased maintenance cost
For a project of this type, unresolved dimensional issues discovered on-site can realistically add several weeks to the overall schedule — time and cost that early engineering verification is designed to avoid entirely.
This project reinforces a principle we apply across all offshore cooling replacement work: a successful replacement solution begins with engineering verification, not manufacturing.
For the QSK60-DM offshore cooling package replacement, our engineering team has focused on: reviewing existing documentation, confirming installation dimensions, revising drawings through multiple rounds, updating technical data, checking skid compatibility, and reducing installation risk before production.
The goal was never simply to manufacture a replacement radiator. The goal was to deliver a cooling package solution that fits the existing system and supports reliable offshore operation.
In offshore applications, a cooling package replacement project requires much more than matching the original dimensions. Drawings, technical data, skid interfaces, and installation conditions must all be carefully verified before manufacturing.
The key to a successful offshore cooling package replacement isn't reproducing dimensions — it's engineering verification: understanding the real installation condition.
Through detailed engineering review and continuous communication with the customer, potential installation risks can be identified and reduced at an early stage. At Sinrui, we believe a reliable cooling solution starts with understanding the complete application — not just producing a component.
