Why a Direct Replacement Is Not Always the Best Solution for Offshore Applications
In offshore applications, replacing a cooling package is rarely a simple “copy and replace” process.
When an offshore generator cooling package requires replacement, many people initially consider it a straightforward process:
Find the same engine model. Copy the original dimensions. Manufacture a similar radiator package. Install it back into the system.
However, in real offshore applications, a cooling package is not just a standalone heat exchanger.
It is an integrated system that involves:
● Heat rejection performance
● Airflow management
● Cooling fluid circulation
● Mechanical structure
● Electrical control
● Safety requirements
● Offshore environmental conditions
For critical equipment such as a Cummins QSK60-DM offshore generator system, an unsuitable replacement design may create problems that are difficult to identify until installation or operation.
A successful replacement requires a complete understanding of the application — not only the radiator itself.
Based on our experience with offshore cooling package projects, we have summarized several common mistakes that should be considered before replacement.
Figure 1 Thermal management analysis for an offshore generator cooling package
One of the most common mistakes during a replacement project is focusing only on the cooling capacity.
Many customers start with questions such as:
● How many kW can the radiator reject?
● Is the core size the same as the original?
● Can the replacement provide the same performance?
These parameters are important, but they are only part of the complete cooling system. A cooling package must also match engine operating conditions, coolant circulation requirements, airflow conditions, installation environment, and mechanical arrangement.
A radiator with sufficient heat rejection capacity may still fail to perform properly if airflow is restricted, coolant flow is insufficient, or installation conditions differ from the original design.
Especially for offshore applications, the cooling system must be designed according to the actual operating environment rather than only the theoretical engine requirements.
Offshore environments create some of the most challenging conditions for cooling equipment. Compared with standard industrial applications, offshore installations are exposed to salt spray, high humidity, a corrosive atmosphere, and long-term outdoor operation.
Without appropriate protection, corrosion may gradually affect the radiator core, tubes, headers, frame structures, and connection components.
One of the biggest risks is that corrosion problems may not appear immediately. A cooling package may operate normally during the initial period, but insufficient corrosion protection can reduce service life and increase maintenance requirements over time.
Therefore, offshore cooling package design should consider suitable material selection, surface protection, coating requirements, corrosion-resistant structure, and compatibility between different materials.
For offshore applications, corrosion protection is not an additional option. It is part of the basic reliability design.
Another common mistake is focusing on the radiator core while ignoring the fan system. In a cooling package, the fan is not simply an accessory — it directly determines airflow volume, cooling efficiency, and system operating stability.
The correct fan selection requires consideration of required airflow, air pressure capability, fan diameter, motor specification, and operating environment.
A fan that does not provide sufficient airflow may result in higher operating temperature, reduced cooling performance, and unstable operation under high load. Excessive airflow without proper system matching may increase energy consumption, mechanical stress, and noise level.
Therefore, fan selection must be based on the complete cooling system design, not only the radiator dimensions.
Temperature is often the first parameter people consider when discussing cooling performance. However, a reliable cooling system also depends heavily on coolant flow rate, operating pressure, design pressure, and connection arrangement.
Insufficient coolant flow may cause uneven temperature distribution, local overheating, and reduced heat transfer efficiency. Incorrect pressure design may lead to leakage risks, seal failures, and long-term reliability issues.
During replacement projects, engineers need to verify existing operating conditions, cooling circuit requirements, connection sizes, and pressure limitations. The goal is not only to make the new package fit physically, but also to ensure it works correctly within the existing cooling system.
In offshore generator applications, the exhaust system and cooling system cannot always be considered separately. The exhaust system operates at extremely high temperatures and may influence the surrounding thermal environment — increasing ambient temperature around the cooling package, reducing cooling air quality, and creating hot air recirculation.
Therefore, during cooling package replacement, engineers should consider exhaust system layout, exhaust gas cooling requirements, distance between exhaust components and cooling equipment, and airflow separation.
A cooling package that performs well under standard test conditions may experience reduced performance if the actual installation environment creates additional thermal influence. We cover this exhaust-cooling relationship in more detail in a separate technical article.
This project reinforces a principle we apply across all offshore cooling replacement work: a successful replacement solution begins with engineering verification, not manufacturing.
For the QSK60-DM offshore cooling package replacement, our engineering team has focused on: reviewing existing documentation, confirming installation dimensions, revising drawings through multiple rounds, updating technical data, checking skid compatibility, and reducing installation risk before production.
The goal was never simply to manufacture a replacement radiator. The goal was to deliver a cooling package solution that fits the existing system and supports reliable offshore operation.
Offshore facilities often operate in environments where hazardous area requirements apply, and cooling package components — fan motors, control boxes, sensors, electrical connections — must be selected accordingly.
Before manufacturing, it's important to confirm the required certification level and electrical specifications for the installation environment. Skipping this step can create problems during project approval, installation, or commissioning.
Modern offshore cooling packages are often integrated with the generator control system. They are not simply radiator plus fan — they may include a control box, temperature monitoring, fan control, protection logic, and interlock signals.
For critical offshore power systems, the cooling package must communicate correctly with the generator system. Important considerations include fan start/stop logic, temperature protection, alarm signals, emergency shutdown interface, and generator control integration.
A mechanically correct cooling package may still fail to operate properly if the electrical control and interlock requirements are not considered.
Replacing a QSK60-DM offshore cooling package is not simply a component replacement project. It is an engineering process that requires understanding the complete operating environment.
A successful replacement should consider:
✔ Cooling capacity
✔ Corrosion protection
✔ Fan performance
✔ Coolant flow and pressure
✔ Exhaust system influence
✔ Hazardous area requirements
✔ Control integration
The best replacement solution is not always the one that looks identical to the original equipment. It is the solution that can reliably operate in the actual application environment.

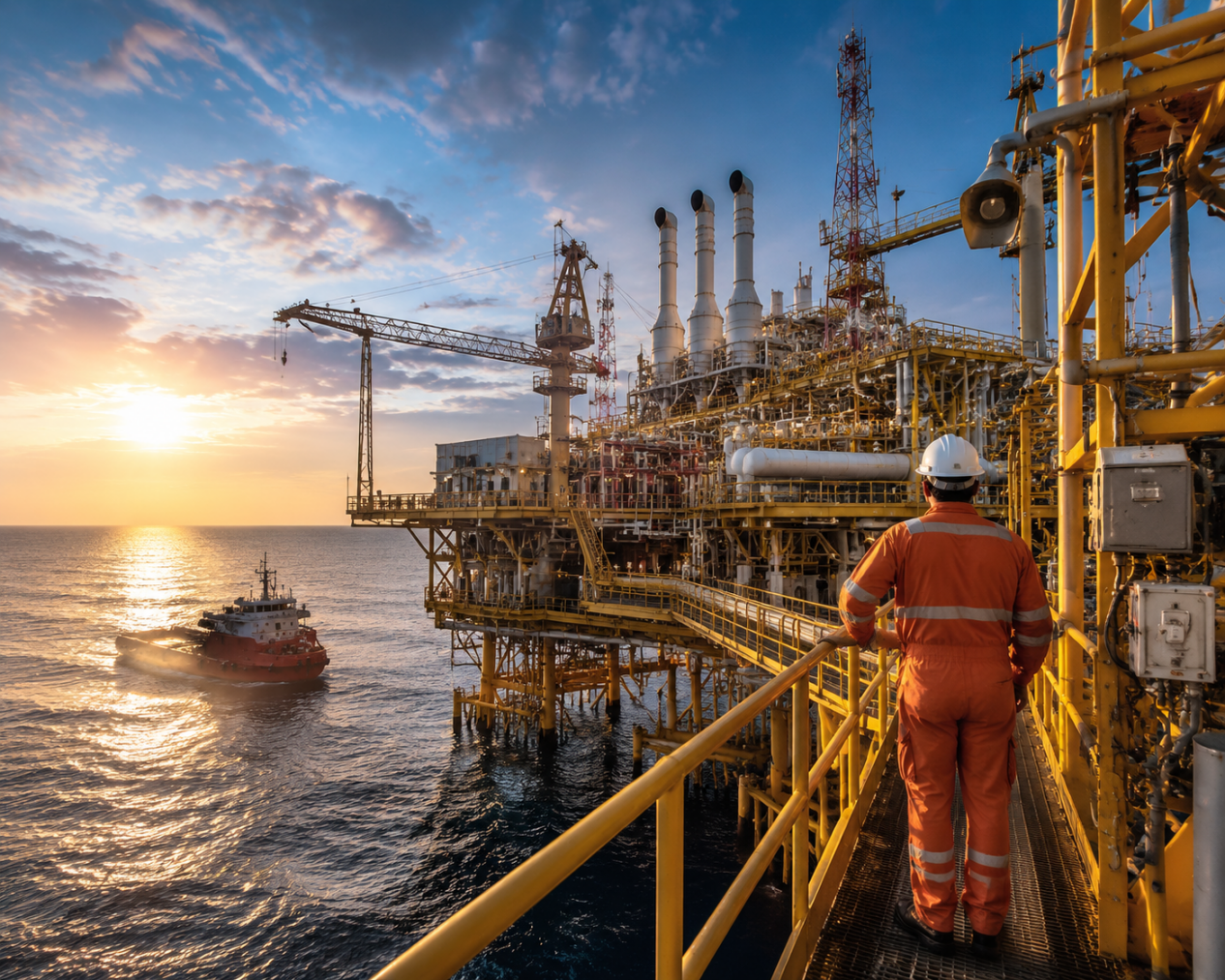

Figure 2 Offshore platform environment for QSK60-DM generator cooling system application.
For offshore generator applications, reliability begins with proper engineering evaluation before manufacturing.
A cooling package must be designed around the complete system: the engine, the airflow, the cooling circuit, the electrical control, and the offshore operating environment.
At Sinrui, we believe that a successful replacement project is not only about supplying a radiator. It is about providing a reliable cooling solution that helps customers reduce operational risks and improve long-term equipment performance.
Because in offshore applications, a cooling package is only as reliable as the weakest link in the system around it.
