In a $5.6 billion market defined by uptime, the cooling system is no longer a maintenance afterthought — it is a strategic decision.
In mining, equipment downtime is measured in dollars per minute — not per hour. When a haul truck or excavator overheats and stops, the entire operation feels it. Industry data puts unplanned haul truck downtime at $5,000 to $20,000 per hour, with major incidents averaging $180,000 per event. A single CAT 793F or Komatsu 930E represents a $5 to $8 million capital investment. When that machine stops, the cost of the part that failed is rarely the number that matters.
What makes this more pressing: according to industry analysis, 40 to 60 percent of all engine downtime in mining is directly caused by cooling system problems — radiator failures, overheating, and coolant loss. The cooling system is not just another component. It is a critical line of defense against lost production.
For years, the industry standard was a one-piece, welded radiator core. It worked — until it didn't. And when it failed, the fix was anything but simple: remove the entire radiator, ship it off-site, wait weeks for repair. A better approach exists.
Traditional radiators are built as a single welded unit. The core is permanent. If one tube leaks or a single fin section fails, the entire core must be removed and replaced.
For a haul truck operating miles from the workshop, that means:
Hours of labor to extract the radiator from the machine
Days or weeks of shipping to an off-site repair facility
Weeks of lost production while the machine sits idle
Logistics costs that quickly outweigh the price of the part itself
Standard radiators also struggle with the physical realities of mining: constant vibration, abrasive dust, and extreme temperature swings. Tube-to-header joints, typically furnace-brazed, are vulnerable to fatigue. Over time, micro-cracks form, coolant leaks, and performance degrades — in some cases, standard radiators fail every two months under demanding underground conditions.
The financial impact extends far beyond the replacement part. Logistics alone can run into thousands of dollars per incident. And because on-site repair is not possible, maintenance teams have no way to shorten the downtime. They can only wait.

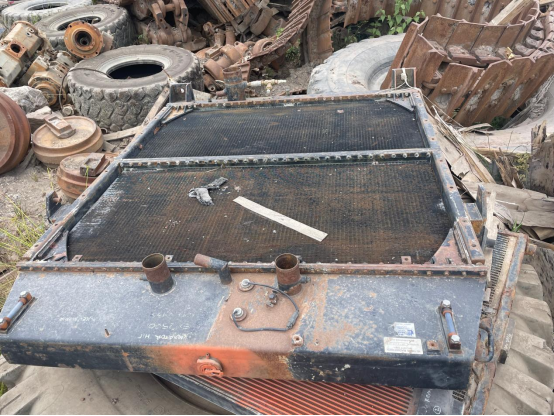

Damaged radiator core water tank
The Removable Tube Alternative

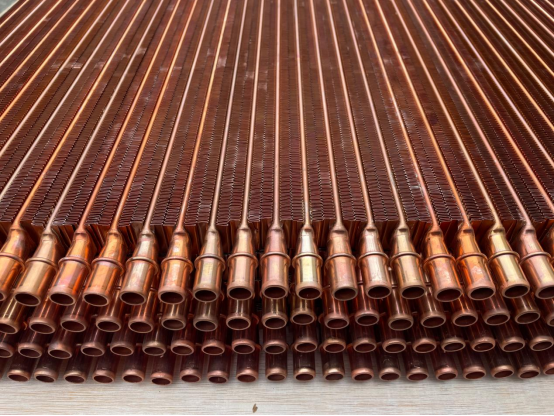

Removable tube radiators take a fundamentally different approach. Instead of a single welded core, the cooling element consists of individual copper tubes held in headers by flexible rubber seals. Each tube operates independently, yet they are tightly connected through clips and seals.
When one tube is damaged, it can be replaced individually — without removing the entire radiator from the machine. The advantages compound quickly:
On-site repairability: A damaged tube can be swapped in the field using simple hand tools. In an underground mine, a single tube can be replaced right where the machine sits. No disassembly. No shipping. No waiting weeks for a specialist repair center.
Full cooling capacity restoration: The removable tube design returns the radiator to 100% cooling capacity on-site. With a welded core, a single failure often means permanent performance degradation until the entire unit is replaced.
Hours instead of weeks: What used to require a multi-day core swap can now be completed as an hours-long field maintenance task. That difference in downtime directly impacts the bottom line.
Vibration resistance: Individual tubes are sealed with flexible rubber grommets that absorb mechanical and thermal stress — cancelling out the vibration that causes rigid soldered seams to crack and leak over time.
Easier cleaning: Copper fin structures can be safely cleaned using high-pressure water or air jets without damaging the core. Open tube passages allow dirt and debris to clear without blocking airflow.
Extended service life: With proper maintenance, removable tube radiators operate reliably for years. Sinrui has documented copper fin-tube radiators running for over six years in open-pit mines with cooling efficiency remaining above 90%. Conventional radiators under the same conditions may require replacement every two months.

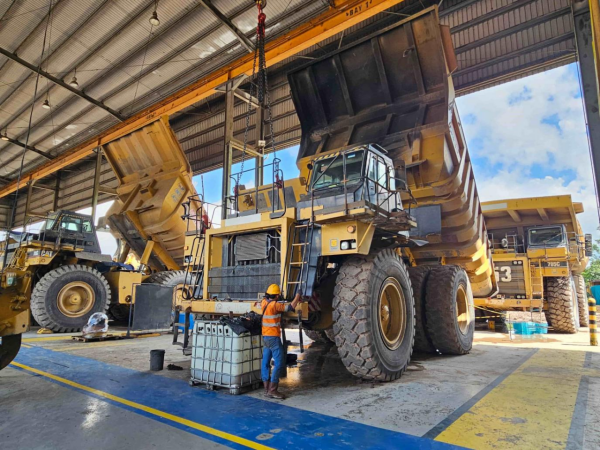

Removable tube radiator on-site maintenance
When comparing a removable tube radiator to a conventional welded core, the initial price is only part of the story.
Consider a conventional radiator that fails every two months. Over four years, that is 24 replacement cycles — each carrying logistics, labor, and downtime costs on top of the part price. A removable tube radiator is designed to last years with modular maintenance. One unit can cover the same period in which a conventional product would be replaced two dozen times.
The global heavy-duty radiator market was valued at $3.52 billion in 2025 and is projected to
reach $5.6 billion by 2034. Mining applications are among the fastest-growing segments — driven
by operations that can no longer afford the downtime model of the past.
The market shift reflects what experienced procurement teams already understand: total cost of ownership, not unit price, is the number that matters. A supplier with proven long-term performance and the ability to back a 4-year warranty carries significantly more value than a low-cost alternative with no track record.
Copper is the material of choice for removable tube radiators in mining applications for several reasons:
Corrosion resistance: Copper naturally resists corrosion in humid, acidic, or dust-heavy underground environments.
Structural durability: Copper cores offer high mechanical strength against vibration, impact, and thermal fatigue.
Thermal efficiency: Copper's thermal conductivity exceeds 380 W/m·K — ensuring fast, stable heat dissipation under sustained high-load operation.
Maintainability: Copper fin structures can be safely cleaned with high-pressure water jets without surface damage, reducing maintenance time and extending service intervals.
At a large underground mine in the Netherlands, standard radiators were failing every two months. Each failure triggered the same sequence: disassembly, international shipping, weeks of waiting. The operation was losing production on a predictable schedule — not because the machines were worn out, but because the cooling components couldn't keep up.
Sinrui supplied a customized copper-tube radiator solution for the mine's CAT AD30 trucks and CAT R1600H loaders. The design addressed each failure mode directly:
Independent copper-tube structure for vibration resistance
Anti-corrosion treatment for the humid, acidic underground environment
On-site repairability with standard tools
4-year warranty on the same unit
The result: a cooling solution that eliminated the two-month replacement cycle and kept the operation running.
Sinrui radiator installed on CAT underground equipment
For mining operations, the choice between a welded core and a removable tube radiator is not just about components — it is about uptime, maintenance cost, and operational reliability.
A radiator that can be repaired on-site, with standard tools, in hours rather than weeks, is not a luxury. It is a necessity for any operation serious about minimizing downtime and maximizing productivity.
Sinrui has delivered over 400,000 removable seamless copper fin tubes to mining fleets worldwide. That experience translates into radiators built for the job — direct-fit replacements engineered for the world's toughest mining conditions.
When a radiator fails, the question is not whether it can be fixed. The question is: how long will it
take, and how much will it cost? With removable tube design, the answer is: not long, and not much. That is the difference between a repair and a disruption.
