Belt-Driven Vs. Electric Motor-Driven Fans : How To Choose The Right Fan for A Generator Radiator

A practical guide to fan drive selection for generator set cooling systems — covering installation constraints, duty cycles, operating environments, and system matching.

One of the most common questions we receive during a radiator project is this: the customer has decided to upgrade from a heat exchanger to a radiator — or to add a remote-mounted radiator to a generator that was not originally designed with one — and the engine has no suitable pulley arrangement for a belt-driven fan. What are the options?

The fan drive method is not a minor detail. It affects how the cooling system is installed, how it performs across different engine speeds and load conditions, how much maintenance it requires, and how well it holds up in harsh field environments. Getting this decision wrong — or treating it as an afterthought — creates problems that are expensive to fix after installation.

This guide covers both options in practical detail: what each drive type suits, where each falls short, and what information is needed to make the right selection for a specific application.

1. Belt-Driven Fan: Mechanically Simple, Tightly Coupled to the Engine

A belt-driven fan is mechanically connected to the engine via a pulley and belt system. When the engine runs, the crankshaft drives the fan directly — no separate motor, no control system, no additional electrical load.

This configuration has been the standard approach for decades in conventional generator sets, and for good reason: in applications where the engine already has a suitable fan drive arrangement and the radiator is mounted close to the engine, it is reliable, cost-effective, and straightforward to maintain.

Advantages

● Direct power transmission: The fan draws mechanical energy from the engine crankshaft. No electrical conversion losses, no motor to power or control.

● Consistent performance at rated speed: For generator sets running at a stable engine speed under continuous or prime duty, belt-driven fans provide predictable, consistent airflow matched to that operating point.

● No additional electrical load: The fan does not draw from the generator's electrical output, which matters in applications where available electrical capacity is limited.

● Lower upfront system cost: Where the engine already has a pulley arrangement designed for a fan drive, belt-driven systems involve fewer components and lower installation cost than a motor-driven alternative.

Limitations

● Fan speed is coupled to engine speed: At low engine speeds — during startup, idle, or light-load operation — the fan runs slower and delivers less airflow. In applications where the generator must reach full cooling capacity quickly from cold start, this coupling can be a constraint.

● Geometric and alignment constraints: The fan, radiator, and belt must be physically aligned with the engine pulley. This limits where the radiator can be positioned and makes remote-mounted radiator configurations impractical with a belt drive.

● Belt wear and tension management: The belt is a consumable component requiring periodic inspection and replacement. Incorrect tension — whether too loose or too tight — causes slipping, noise, reduced airflow, accelerated wear, or premature belt failure. In high-ambient environments, belt degradation is faster.

● Not suitable for remote radiator installations: If the cooling system design requires the radiator to be located away from the engine — on a roof, on a separate skid, or at a distance due to installation constraints — a belt drive is not viable. This is one of the most common reasons projects transition to electric motor-driven fans.

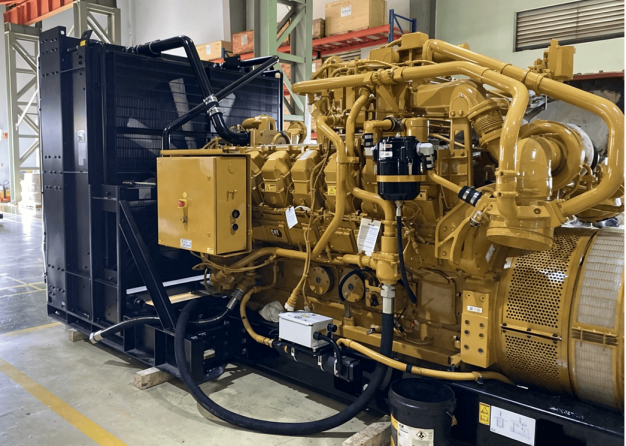

Belt-driven radiator fan on a CAT 3512 generator set — fan and radiator positioned directly in front of the engine with mechanical pulley connection

2. Electric Motor-Driven Fan: Flexible, Independent, and Controllable

An electric motor-driven fan replaces the mechanical belt-and-pulley connection with an electric motor mounted directly on the fan assembly. The motor draws power from the generator's electrical output (or an independent power supply) and drives the fan independently of the engine's crankshaft speed.

This configuration is increasingly common in modern generator set installations — particularly where the radiator cannot be positioned adjacent to the engine, where the original engine design does not include a belt-driven fan arrangement, or where variable cooling demand requires fan speed control.

Advantages

● Installation flexibility: The fan and radiator assembly can be positioned independently of the engine — on a separate skid, roof-mounted, or at a distance — without requiring mechanical alignment with the crankshaft. This is the primary advantage in custom or constrained installations.

● Fan speed independent of engine speed: The motor can be controlled separately from the engine. This allows the fan to run at full speed immediately on startup, or to modulate speed in response to coolant temperature — reducing noise, power consumption, and mechanical stress during light-load operation.

● No belt maintenance: Eliminates the belt, pulley, tensioning system, and associated inspection requirements. In remote or difficult-access installations, this is a significant operational advantage.

● Compatible with generators that have no fan drive: For engines originally designed with a heat exchanger rather than a radiator, or for any engine without a suitable pulley arrangement, an electric motor-driven fan is often the only practical option for adding a radiator to the system.

Limitations

● Draws from the generator's electrical output: The motor consumes electrical power that the generator must supply. For large radiators with high-capacity fans, this load must be factored into the generator's available capacity. The electrical system — wiring, protection devices, control panel — must be sized accordingly.

● Motor protection rating matters in harsh environments: In dusty, humid, or corrosive environments (mining sites, coastal installations, offshore platforms), the motor must carry an appropriate IP rating — typically IP54 or IP55 minimum. An undersized or improperly rated motor in these conditions will fail early.

● Greater system complexity: Adding a motor, control system, wiring, protection devices, and (if applicable) variable speed drive introduces more components and more potential failure points than a purely mechanical belt drive.

● Higher upfront cost: Motor, control system, and installation wiring add cost compared to a belt-driven configuration, particularly for high-capacity cooling systems requiring large motors.

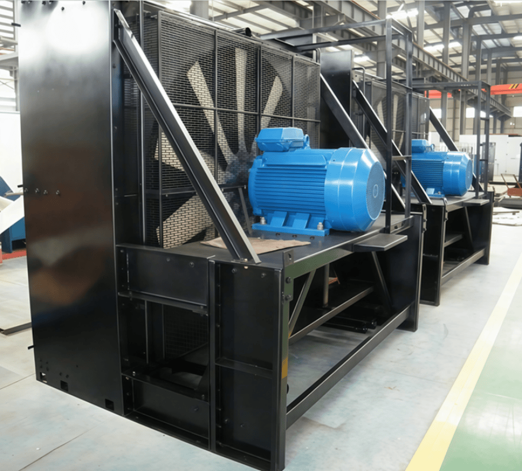

Electric motor-driven radiator fan on an MTU 12V4000 generator set —
motor mounted directly on the fan assembly, independent of the engine belt system

3. Side-by-Side Comparison



4. How to Choose: The Decision Depends on the Installation, Not the Preference

There is no universally superior option. The correct fan drive type follows directly from the physical and operational constraints of the specific installation.

Choose belt-driven when:

● The engine already has a suitable pulley arrangement designed for a fan drive

● The radiator will be mounted directly in front of or adjacent to the engine

● The generator operates at stable, continuous speed (constant engine RPM)

● Minimizing electrical load on the generator output is a priority

● The installation is in a standard environment without unusual corrosion or dust exposure



Choose electric motor-driven when:

● The engine was originally designed with a heat exchanger (no existing belt fan drive)

● The radiator must be positioned remotely — roof-mounted, separate skid, or away from the engine

● Fan speed control independent of engine speed is required (variable load applications, noise-sensitive sites)

● The installation is in a high-dust, high-humidity, or corrosive environment (offshore, coastal, mining)

● The generator set is being upgraded and mechanical modification of the engine drive system is not practical

Generator radiator installation layout — remote mounting configuration
using electric motor-driven fans where belt drive is not practical

5. Fan Selection Parameters: What Actually Needs to Be Matched

Fan selection should never be based on diameter or motor power rating alone. The fan and radiator are a matched system — sizing one without reference to the other leads to either insufficient cooling or unnecessary cost and noise.

The following parameters need to be evaluated together, not independently:

· Required heat rejection (kW to coolant): This is the starting point. It comes from the engine's heat rejection data — specifically the jacket water heat rejection at the rated duty point, plus charge air cooler load if applicable. An undersized radiator with a correctly sized fan still fails if the core cannot transfer the required heat load.

· Required airflow volume (m³/min or CFM): Calculated from the heat rejection requirement, the coolant-to-air temperature differential, and the radiator core design. This is the target the fan must meet.

· Radiator air-side pressure drop: The resistance the fan must overcome to push or pull air through the core. A denser fin pitch means higher pressure drop — the fan must be selected to deliver the required airflow against this resistance, not just in open air.

· Fan static pressure capability: Must exceed the radiator's air-side pressure drop at the required airflow point. Selecting a fan based on free-air airflow rating without checking static pressure performance is a common sizing error.

· Ambient temperature: Directly affects the temperature differential driving heat transfer. High-ambient installations (40°C+) require more airflow or a larger core to compensate for the reduced driving force — which in turn affects fan sizing.

· Engine operating speed (for belt-driven): Determines the fan rotational speed via the pulley ratio. The fan must be matched to deliver sufficient airflow at the actual operating engine RPM, not the maximum rated RPM.

· Available electrical capacity (for motor-driven): The motor draw must be within the generator's available output. For large cooling systems, this can be a meaningful fraction of total output and must be planned into the electrical system design.

· Installation space and mounting constraints: Determines maximum fan diameter and the fan-to-core distance, both of which affect airflow uniformity and efficiency.

· Operating environment and motor IP rating: Dusty, humid, or chemically aggressive environments require motors with appropriate ingress protection ratings. Specifying IP44 where IP55 is required is a maintenance problem waiting to happen.

· Noise requirements: Fan tip speed is the primary driver of aerodynamic noise. Where noise limits apply, fan diameter and rotational speed must be balanced to meet the airflow requirement within the noise constraint.

· Duty cycle: A fan running 24/7 under continuous duty requires a different design margin and material specification than one operating a few hundred hours per year at standby.

A properly matched fan and radiator should be designed as a system. An oversized radiator core paired with an undersized fan will not achieve the rated cooling performance — the airflow bottleneck limits heat transfer regardless of core size. Conversely, an oversized fan on a correctly sized core wastes energy, increases noise, and shortens motor or belt life.

Working with SINRUI on Fan and Radiator Selection

Fan drive selection is one of the first engineering decisions we work through with customers on a radiator project — because it directly shapes what the cooling system design looks like.

For a conventional generator set with an existing belt drive arrangement, we design around that configuration: matching the core dimensions, fan diameter, and pulley ratio to the engine's heat rejection data and operating speed. For custom installations — remote-mounted radiators, retrofitted systems, or generators originally designed with heat exchangers — we specify and supply the motor, control system, and fan assembly as part of the complete cooling solution.

To assess a fan selection requirement accurately, the following information is most useful:

● Engine model and rated power output (kW)

● ISO duty rating (ESP / PRP / LTP / COP)

● Jacket water heat rejection rate (kW)

● Does the engine have an existing belt-driven fan pulley arrangement?

● Radiator mounting configuration (engine-mounted or remote)

● Site ambient temperature and corrosion protection requirements

● Available electrical supply for motor-driven fan (if applicable)

● Installation space envelope and any noise constraints

If not all of these are immediately available, send us what you have. Our engineering team can work with partial information and will follow up with any questions needed to complete the assessment.
