Author: Sinrui Team Publish Time: 2026-07-22 Origin: Site
Six Years in an Indonesian Open-Pit Mine: What a Komatsu 930E Radiator Looks Like After Real-World Use
Field performance, not spec sheets, is the real test of a mining radiator.
In an open-pit mine in Indonesia, a batch of Sinrui copper fin-tube radiators installed in Komatsu 930E haul trucks has been running continuously for six years. The environment has not been kind: extreme heat, heavy dust, and sustained vibration are constants, not exceptions.
After six years, the units were tested. Cooling efficiency had dropped by 8 to 9 percent. Fin alignment remained uniform. Oxidation was minimal.
For a component operating in one of the world's most demanding mining environments, that is not degradation — that is performance.
6 years continuous field operation >90% cooling efficiency retained 8–9% total efficiency drop over six years

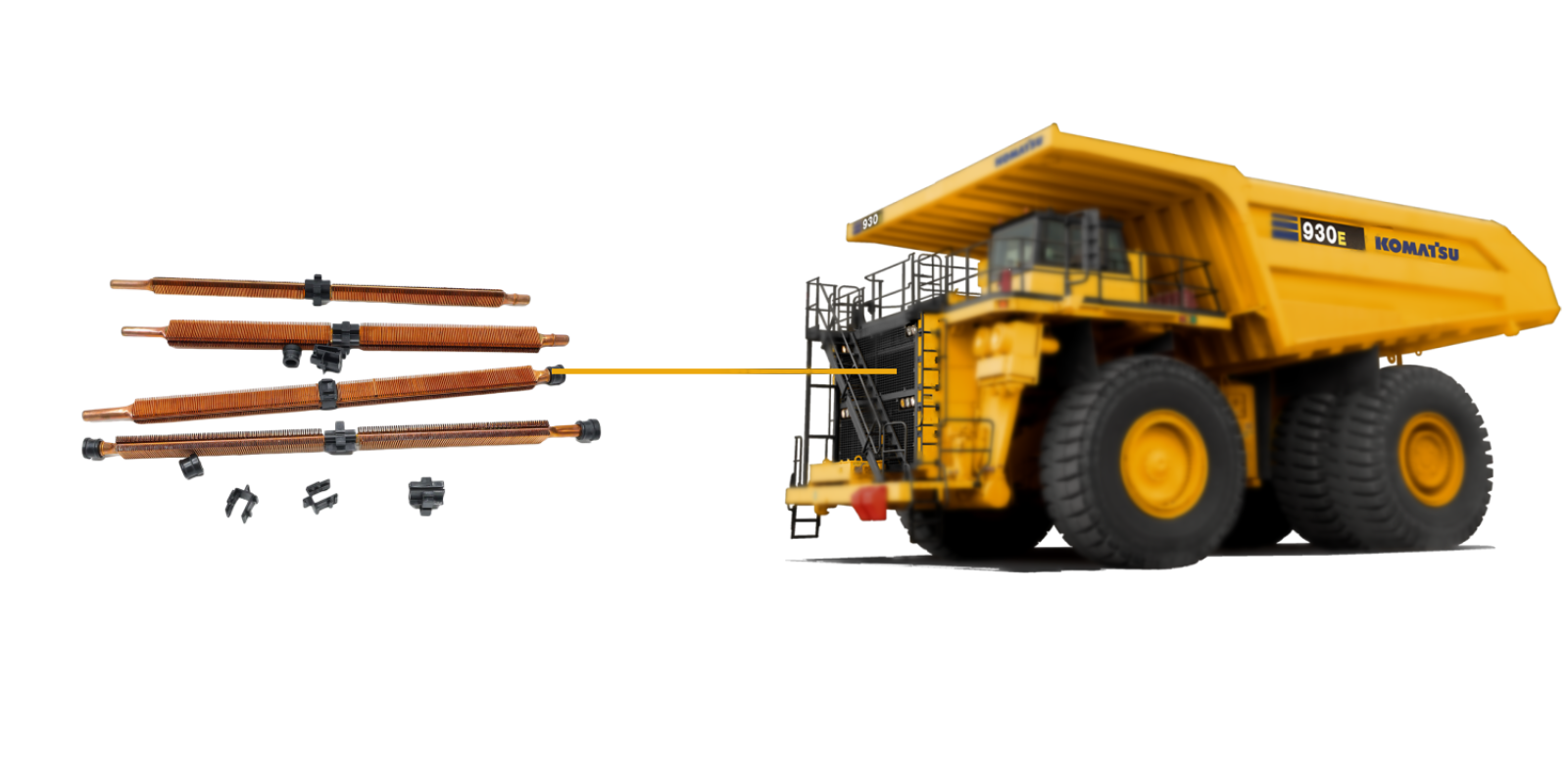

Sinrui copper fin-tube radiator installed in Komatsu 930E haul truck, Indonesia open-pit mine
Cooling performance in a radiator is only as good as the material conducting the heat. Sinrui uses 99.9% high-purity oxygen-free copper sourced from Aurubis — a globally recognized supplier whose material is also used in military and heavy equipment applications.
At a thermal conductivity exceeding 380 W/m·K, copper transfers heat faster and more consistently than lower-grade alternatives. The practical benefits in mining conditions:
Thermal conductivity: Faster, more stable heat dissipation under sustained high-load operation
Corrosion resistance: Natural resistance to oxidation in humid, dusty, and chemically active environments
Structural integrity: High-purity copper maintains the balance between flexibility and mechanical strength needed to survive vibration cycles
The result is fins that stay evenly spaced, resist collapse, and remain free from oxidation — the three failure modes that end a radiator's useful life prematurely.
These are not generic radiators adapted for mining use. They are designed specifically for the Komatsu 930E platform and calibrated for the operating conditions of Indonesian open-pit mining.

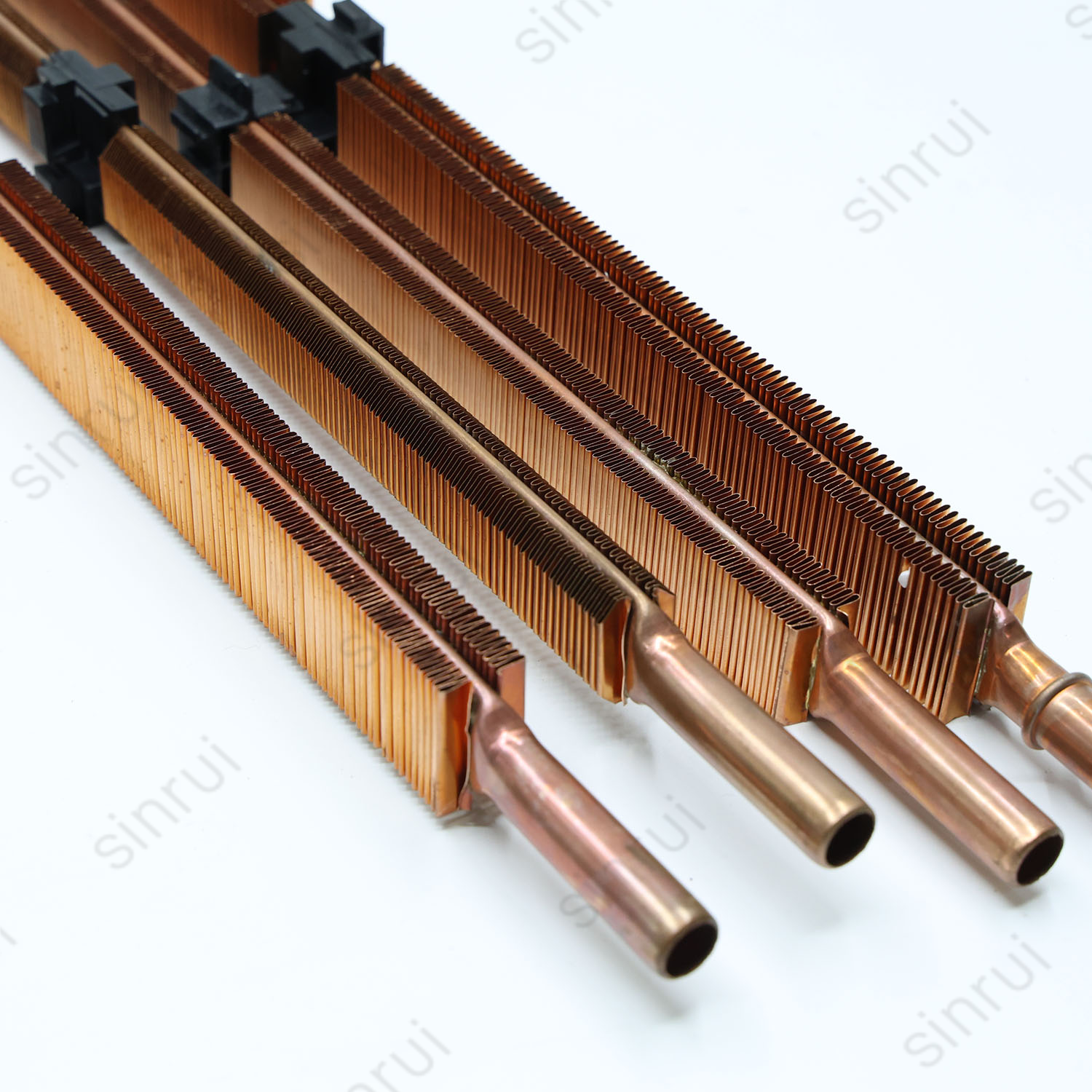

Close-up of Sinrui copper fin-tube radiator showing precise fin alignment and structural bonding
Key design decisions:
Tube-to-fin bonding: Tight mechanical bonding between tubes and fins eliminates the micro-gaps that cause heat loss over time
Fin spacing consistency: Automated production ensures uniform spacing that resists vibration-induced deformation — a common failure point in manually assembled units
Removable core design: Individual tubes can be replaced on-site without full radiator removal. A single failed tube does not take the machine out of rotation
After six years of continuous use, the 930E units we inspected showed minimal oxidation and uniform fin alignment — with only an 8 to 9 percent drop in cooling efficiency. For a component running in those conditions, that result reflects a design that holds.
The quality of a radiator at the end of its service life is determined by decisions made during manufacturing — not during inspection.
Sinrui applies automated tube expansion and precision welding throughout the production process. This removes the variability that manual assembly introduces: uneven spacing, inconsistent bond strength, and the micro-gaps that become leaks under sustained thermal cycling.
High-temperature solder is used at all joints, preventing leaks and maintaining structural stability across the temperature extremes of tropical mining environments. Frame components are treated with corrosion-resistant coatings that extend service life beyond what the core alone would achieve.

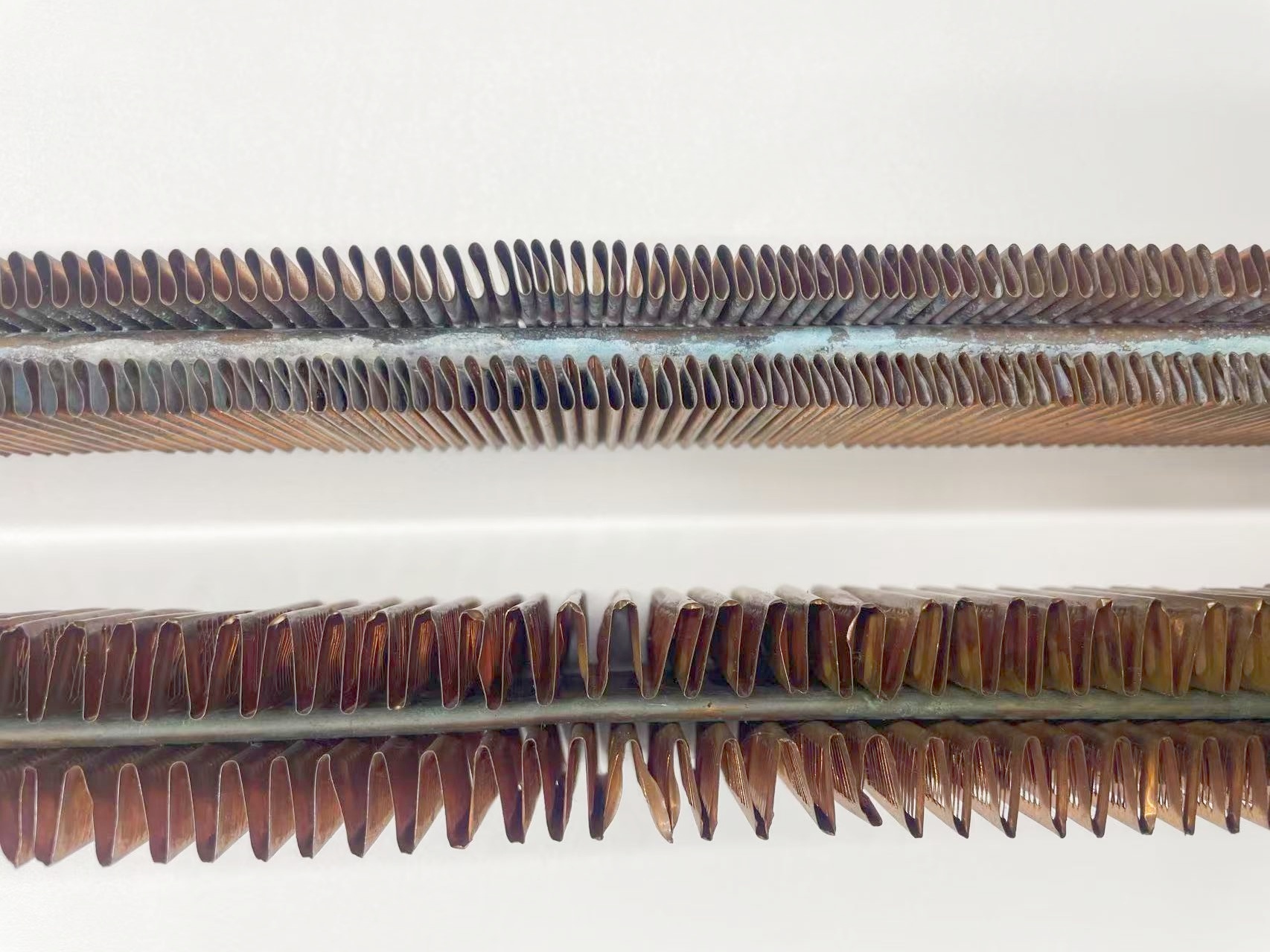

Uneven arrangement, excessive fin spacing, and oxidized, poor-quality tubes.
Not all copper radiators perform the same. Common failure patterns in the market give a useful checklist for procurement decisions:
Fin spacing consistency: Uneven spacing — whether from manual assembly or poor tooling — creates turbulence that reduces cooling efficiency from day one, not just after years of use
Surface treatment: Untreated copper surfaces oxidize rapidly in the presence of dust, humidity, and chemical exposure. Oxidation spreads and is not self-limiting — it compounds
Repairability: Non-removable designs convert a single tube failure into a full radiator replacement. In a remote mining site, that means a machine out of rotation and a part on a shipping container
Material traceability: High-purity copper from a traceable supplier is not a marketing claim — it determines whether the thermal conductivity figure on the spec sheet is real or nominal
A mining radiator is not interchangeable with a standard industrial unit. It operates in conditions that expose every weakness in materials, bonding, and design — and it does so continuously, with no off-season.
Sinrui's Komatsu 930E radiators have been running in Indonesian open-pit mines for six years. The inspection data is not a projection. It is a result.
Because a radiator shouldn't just fit — it should last.
