In industrial environments, choosing the right cooling system is critical. It directly affects operational efficiency, production costs, and long-term equipment reliability. The most common cooling solutions include dry coolers and cooling towers. Depending on operational, environmental, and maintenance requirements, users may select either a standalone or a hybrid system.
When designing or upgrading cooling infrastructure, it’s essential to evaluate your specific cooling demands. This article compares dry coolers and cooling towers by analyzing their design, working principles, and application scenarios—helping you choose the most suitable system for your needs.
What Are They?

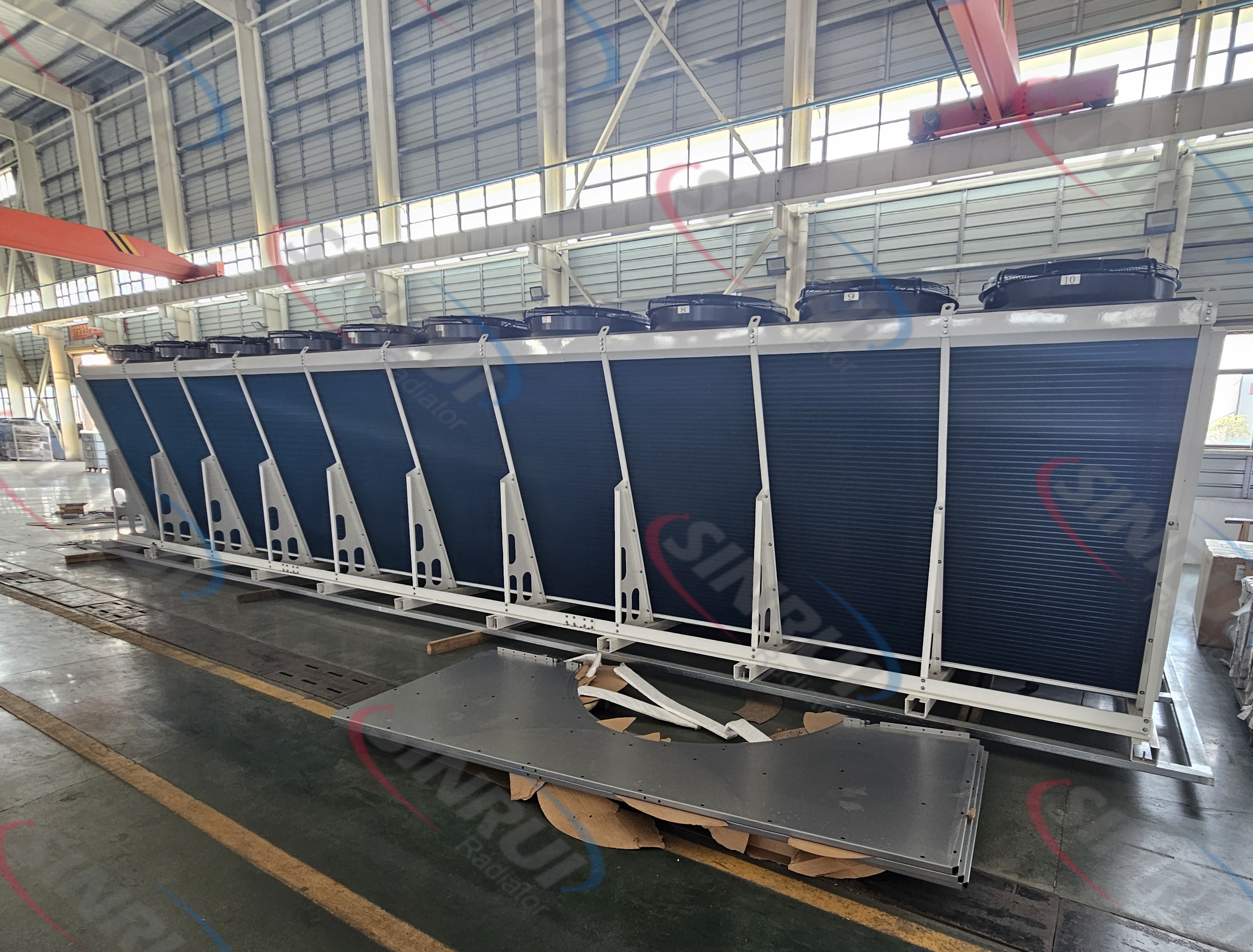

A dry cooler—also known as an air-cooled heat exchanger, closed-loop dry cooler, or remote radiator—removes heat from a closed-loop fluid such as water or glycol. Hot fluid flows through finned tubes while large fans force ambient air across the surface, carrying away heat. Dry coolers rely entirely on air for cooling and require no additional water, making them ideal for areas where water is scarce or costly. They also need less maintenance.

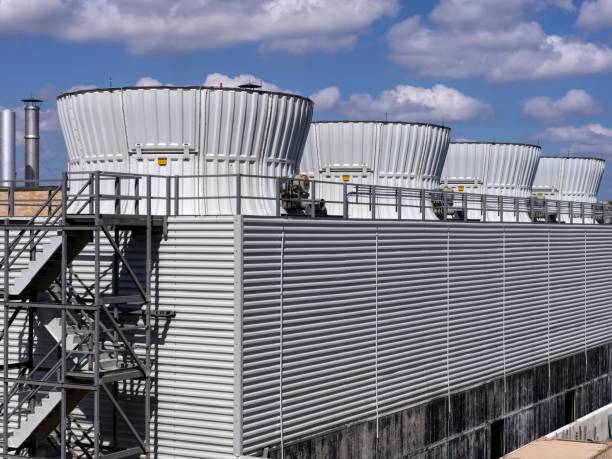

In contrast, a cooling tower is a water-based system, often referred to as an open-loop or wet cooling tower. It removes heat by evaporating a small portion of the circulating water. Warm water is sprayed inside the tower over fill media to increase the surface area. As air passes through, some water evaporates and takes the heat away. Because cooling towers are open to the atmosphere, they require a stable water supply and regular treatment to prevent scaling and bacterial growth. However, they offer higher cooling efficiency, especially in warm climates and high-load systems.
Structure and Design
Dry coolers have a relatively simple internal structure, mainly consisting of finned coils and axial fans. These components work together to dissipate heat efficiently. Common designs feature horizontal or vertical airflow configurations. Optional adiabatic pre-cooling modules can be added to improve performance in hot weather.
Wet cooling towers are more complex. Hot water enters from the top and is sprayed over fill media to maximize surface area. As air flows through, a portion of the water evaporates, removing heat. A fan helps move air through the tower, while drift eliminators reduce water loss by capturing droplets. Cooled water collects in a basin at the bottom and is recirculated back into the system.
Application Scenarios
Due to their structural advantages, each system suits different environments:
Wet cooling towers are best for high-load cooling applications in large industrial facilities:
- Power plants: cooling condensers and turbine exhaust
- Petrochemical and chemical plants: process cooling under heavy loads
- Steel and metallurgy: cooling furnaces and rolling equipment
- Commercial buildings: part of large HVAC systems in malls, hospitals, and airports
Key Pros and Cons:
- Can cool process water below dry bulb temperature in low humidity
- High water usage and operating cost
- Requires frequent inspection and maintenance
Thanks to their efficiency, wet cooling towers remain the preferred choice in regions with abundant water, where low operating cost and high thermal performance are priorities.
Dry coolers are better suited for small to medium-sized industrial and commercial systems, especially in dry or water-restricted areas:
- Industrial processes: cooling fluids in power plants, chemical production, plastic forming, metalworking, and food & beverage
- HVAC systems: provide reliable heat rejection without evaporation loss
- Data centers: maintain stable IT performance while minimizing water use
Key Pros and Cons:
- Flexible installation, low operating cost
- Minimal maintenance, no water treatment required
- Performance is limited by ambient dry bulb temperature
Dry coolers are ideal in locations where water is expensive or restricted. While they may offer lower cooling capacity, they are easier to maintain and more environmentally sustainable.
Dry coolers and wet cooling towers each have their own strengths. Wet cooling towers offer high efficiency and are best for large-scale, water-rich applications. Dry coolers are more suitable for dry climates or where simple, low-maintenance systems are preferred.
Choosing the right solution depends on your specific cooling needs, local climate, water resources, and operational budget. Understanding how each system works will help you make a smart, sustainable decision for long-term performance.
