As the largest energy company in the UAE and a leading global oil and gas provider, Abu Dhabi National Oil Company (ADNOC) operates extensive onshore and offshore fields. Offshore drilling platforms demand highly reliable and corrosion-resistant equipment due to harsh marine conditions. To ensure efficient and safe operation of the MITSUBISHI S12R-F1PTAW2 generator system, Sinrui custom-designed and delivered four high-performance shell-and-tube heat exchangers to ADNOC, specifically built to withstand extreme offshore environments and ensure long-term, stable heat exchange.
Shell-and-tube heat exchangers installed on offshore platforms must resist corrosion, withstand high temperatures, and tolerate strong vibration. Materials and component specifications include:
·Materials List:
Cover: SA-516M G.70
Body flange: SA-266-2
Tube sheet: C46500
Nozzle pipe: SA106B
Nozzle flange: SA105M
Cooling tube: C71500
Shell: SA106B
Gasket: PTFE
·Performance Parameters:
Item | Tube Side | Shell Side |
media | Sea water | 50%W.G |
Pressure | 0.4MPa(G) | 0.4MPa(G) |
In/out temp | 34/38.56℃ | 70℃/38.9℃ |
Design Pressure | 50℃ | 90℃ |
Flow | 80m³/h | 13.2m³/h |
Port Size | ASME B 16.5 Class 150 NPS4" | ASME B 16.5 Class 150 NPS4" |
Area | 61.58㎡ | |

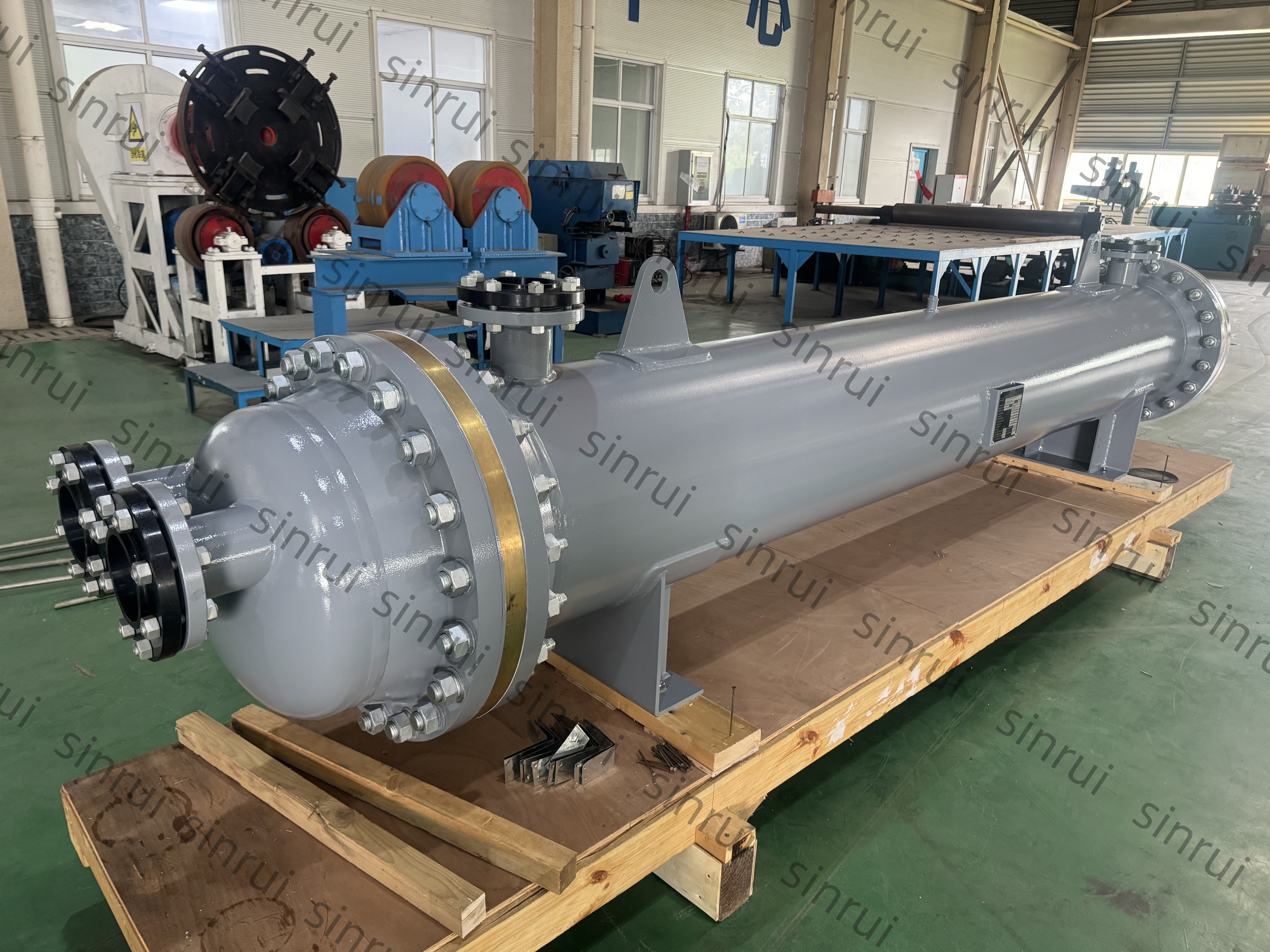

This shell-and-tube heat exchanger is specially engineered for the MITSUBISHI S12R-F1PTAW2 generator used in offshore environments. It features C5-M marine-grade anti-corrosion coating and integrated zinc anodes for internal protection. Both shell and tube sides were hydrostatically tested at 0.6 MPa for 60 minutes to ensure pressure integrity.
Key features include:
·Durable construction: Carbon steel with C5-M epoxy coating for high resistance in saline air.
·Corrosion protection: Zinc rods prevent internal galvanic corrosion.
·Compact structure: Easy integration with flanged nozzles and lifting lugs.
·Compliance: Fabricated and tested to ASME Section VIII pressure vessel standards.
·Thermal Load: Efficient heat transfer achieved through HTRI-calculated baffle spacing and increased tube surface area.
·Maintenance Access: Front and rear cover flanges are removable for easy inspection and cleaning.
·Mechanical Reliability: Built to withstand vibration and thermal expansion in offshore conditions.
·System Compatibility: Fully compatible with the MITSUBISHI S12R-F1PTAW2 generator cooling loop.
Installed on ADNOC’s offshore drilling platform, this heat exchanger plays a vital role in maintaining generator stability by:
·Regulating coolant temperature for continuous power output
·Preventing overheating under peak load operation
·Extending generator service life
·Reducing unplanned maintenance through corrosion-resistant design
This project reflects Sinrui’s commitment to delivering customized cooling solutions for critical offshore power generation. With a rugged design, ASME-certified fabrication, and offshore-grade corrosion protection, this shell-and-tube heat exchanger meets ADNOC’s performance and durability requirements.
As a trusted Chinese manufacturer and global supplier of industrial heat exchangers, Sinrui is dedicated to delivering quality, compliance, and reliability where it matters most.
